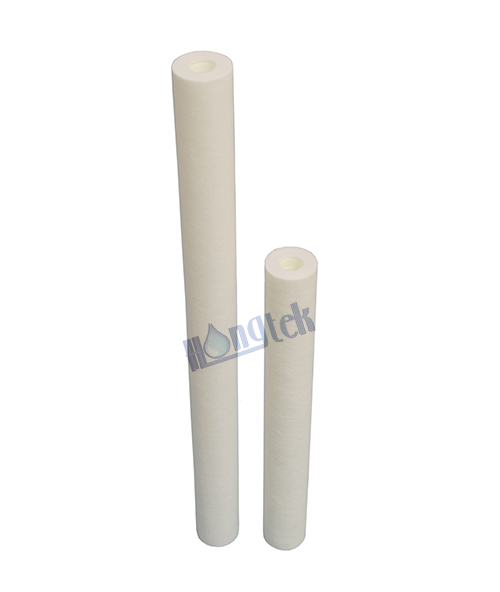

APP Series Absolute PP Melt Blown Filter Cartridges
APP Series Absolute PP Melt Blown Filter Cartridges APP Series Absolute PP Melt Blown Filter Cartridges APP Series Absolute PP Melt Blown Filter Cartridges
APP Series Absolute PP Melt Blown Filter Cartridges APP Series Absolute PP Melt Blown Filter Cartridges APP Series Absolute PP Melt Blown Filter Cartridges

APP Series Absolute PP Melt Blown Filter Cartridges

Description

Hongtek APP Series Absolute PP Melt Blown Filter Cartridges are constructed with high-technology design that take advantage of flow pattern progressively from surface to inner center. Absolute PP melt blown filters have significant service life, accompanied by consistent high filtration efficiency. Absolute melt blown filters are manufactured with progressively graded density and 100% FDA approved polypropylene material, therefore, the absolute rate of PP filters could get to Beta 1000(99.9%) and have super-normal dirt holding capacity and longer service life than normal PP melt blown cartridges.

Advanced absolute melt blown filter cartridges are available in high performance grading from 1 to 100 microns, with fine micro porous structure for high removal efficiencies. Absolute PP melt blown cartridges can be used both in pre-filtration and final filtration in food & beverage, pharmaceutical and water treatment applications.

Specification
Filter MediaPolypropylene
Length5", 9.75", 9.8", 10", 20", 30", 40", 50", 60", 70" (According to customers requirements)
Inside Diameter28mm, 30mm (Special ID can be customized)
Outside Diameter2.5"(63mm), 2.55"(65mm) (Special OD is accepted)
Filtration Rating1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 75μm, 100μm
Gasket/O-ringSilicone, EPDM, Viton, Buna
End CapDOE, 222/Flat(SOE), 222/Fin(SOE), 226/Flat(SOE), 226/Fin(SOE)


Feature

● 99.9% filtration efficiency (Beta 1000) and exactly precision from 1 to 100 micron

● Depth layers strucure, high contaminant holding capacity and longer filter service life

● High anti-pressure ability, proprietary process delivers superior efficiency and economical cost

● High filtration efficiency of absolute PP melt blown cartridges, consistent filtration performance

● Absolute PP filters are made of 100% FDA polypropylene materials, free of binder, surfactant and adhesive

● Absolute PP melt blown filters have excellent chemical compatibility, so used in a wide range of applications



Application
Food & BeverageMicroelectronicsPCB industry
Chemical/IndustrialWater TreatmentPharmaceuticals
Petrochemical ProcessPre RO/ID Water FiltrationElectronic Industry


Performance

Operation Data for Absolute PP Melt Blown Filter Cartridges

Maximum Operating Temperature60 ℃(140℉)
Max. Differential Pressure4.0 bar at 20℃ (58 psi at 68℉)
2.0 bar at 60℃(29 psi at 140℉)
1.0 bar at 60℃(14 psi at 140℉)
Liquid Flow DirectionOutside to inside
Recommend Change out Differential Pressure2.5 Bar


Pressure Drop Rate of 10" Absolute PP Melt Blown Filters


Tech Support
Construction of Absolute Melt Blown Filters

● The cross-section drawn of absolute melt blown filters

● Smooth surface finish and no loose fibers to release into process

● From inner layers to outer layers of absolute PP filters the fiber is fine to coarse

● Multilayered structure and depth filtration pattern ensure good filtration efficiency

● Formed by thermal bond without using of any binders, adhesives and and lubricants

● Distinct filtration zones for good dirt holding capacity and high clarifying filtration

● 100% FDA approved polypropylene for compatibility with wide range of process fluids


Working Principle of Absolute PP Filters


● The drawing is the working principle of layers structure depth absolute melt blown filters

● Layers filtration keep absolute PP filters high flow rate, good filtration efficiency and long service life

● Small particles pass the outer layers, then filtered by inner layers wich made of fine fiber and high precision

● Large particles are hold in outer layers of absolute PP melt blown cartridges which are constructed by coarse fibers


Installation of Absolute Melt Blown FiltersInstallation_Absolute_Melt_Blown_Filters.jpg

● Hongtek brand depth absolute melt blown filter elements installed in S.S filter housing

● After used PP filters compare with before used can apparent know the good efficiency filtration

● The central of absolute PP filter elements are still no polluted, so that keep liquid clear after filtration

● No fiber drop out, high dirt holding, low pressure drop, high flow rate and high pressure resisting capability

● High quality and economical cost absolute melt blown filters increase of longer service life and save much cost


Order Information
APPIDODMicron RatingLengthEnd CapGasket/O-ring

APP Series

Absolute PP Melt Blown Filter Cartridges

A = 28mmM = 63mm1 = 1μm5 = 5"D = DOES = Silicone
5 = 5μm9.75 = 9.75"
10 = 10μm9.8 = 9.8"T = 222/Flat(SOE)E = EPDM
20 = 20μm10 = 10"
30 = 30μm20 = 20"O = 222/Fin(SOE)V = Viton
B = 30mmF = 65mm50 = 50μm30 = 30"
75 = 75μm40 = 40"P = 226/Flat(SOE)
50 = 50"U = Buna
100 = 100μm60 = 60"L = 226/Fin(SOE)
70 = 70"

For Example:

APP-A-M-1-50-D

APP Series Absolute PP Melt Blown Filter Cartridges - 28mm - 63mm - 1μm - 50" - Double Open End (DOE)

Special specifications Absolute PP Melt Blown Filter Cartridges can be customized, such as special ID, OD, length etc.
