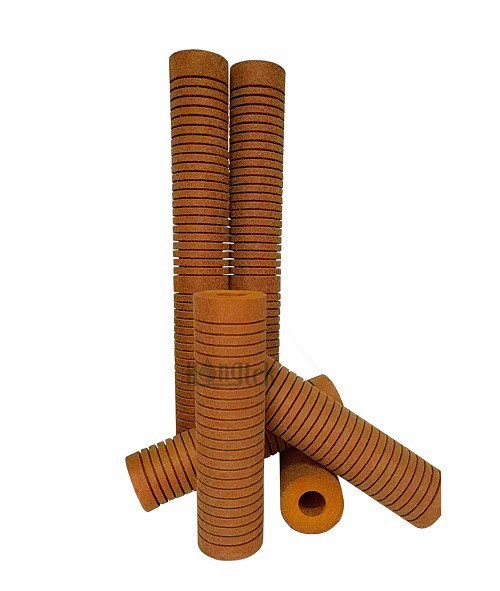

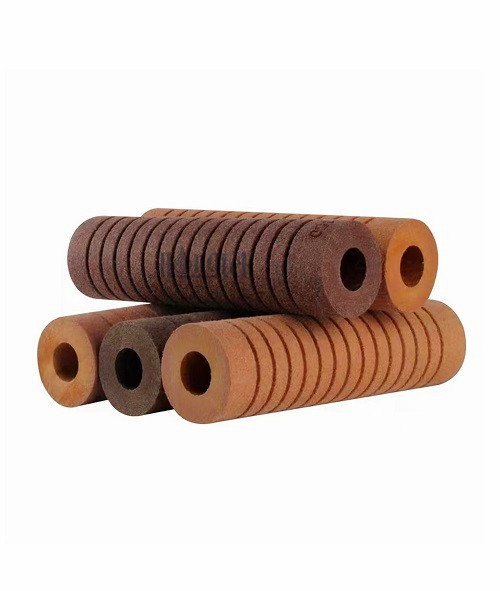

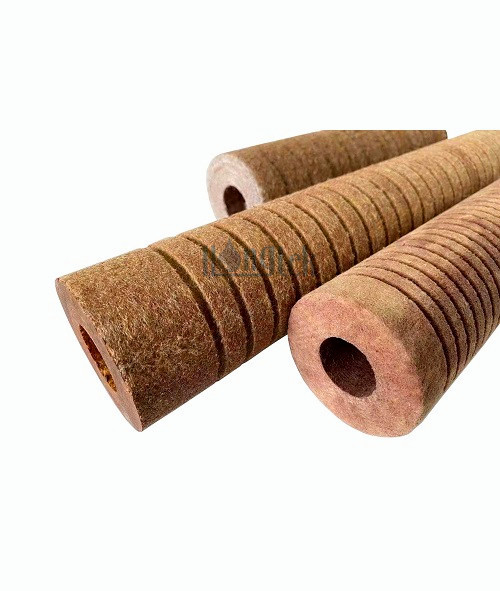

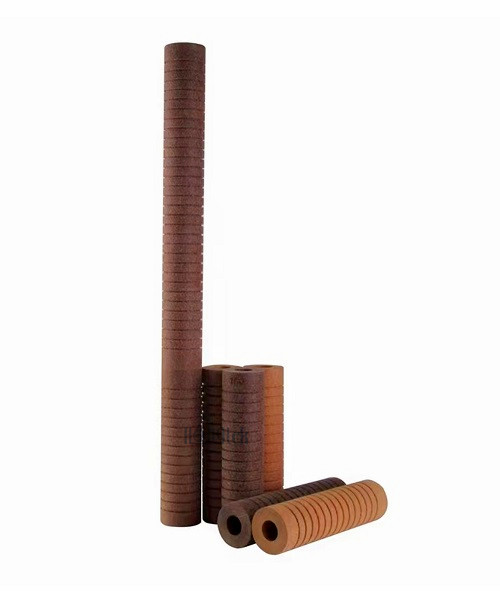

GRB Series Grooved Resin Bonded Filter Cartridges


GRB Series Grooved Resin Bonded Filter Cartridges are mainly made of acrylic fibers and resins, with the addition of adhesives, curing agents and stabilizers through high-temperature sintering. Resin bonded filters have a gradually tightening hard structure that allows the cartridges to withstand extreme viscosity and temperature without deformation or collapse. The quality of Hongtek resin bonded cartridges are equivalent to 3M's Micro-Klean filter cartridges,are loose on the outside and tight on the inside, with uniform micropores and high porosity, allowing larger particles to be intercepted on the surface of the filters, while smaller particles are intercepted on the inner layer, belonging to deep filtration, thereby increasing the interception capacity and service life. It adopts a processing process to add grooves on the surface of the resin bonded filter cartridges, thereby expanding the effective filtration area and achieving an ultra-high filtration efficiency of 99.9%. Resin bonded cartridges are widely used in many chemical industries.

Filter Media Acrylic Fiber/Phenolic Resin
Length5"(127mm), 9.8"(248mm), 10"(254mm), 20"(508mm), 30"(762mm), 40"(1016mm)
Inside Diameter28mm, 30mm
Outside Diameter2.55"(65mm)
Filtration Rating1μm, 5μm, 10μm, 25μm, 50μm, 75μm, 100μm, 125μm, 150μm, 200μm
End CapDouble Open End (DOE)


● No fiber shedding, high filtration rating and long service life

● Solvent resistance, corrosion resistance, and wide chemical compatibility

● Resin bonded cartridges are especially suitable for viscosity chemical liquid filtration

● Resin bonded filter cartridges are high temperature resistance and high pressure resistance

● The grooves surface structure of resin bonded cartridges expands the effective filtration area

● Resin bonded cartridges are large flow rate, low resistance, strong ability to filter particulate impurities

Paints & InksOrganic SolventsMachine Coolants
Chemical IndustryLacquers & VarnishesCoatings & Epoxies
Sealants & AdhesivesPetrochemical IndustryLubricating Oils & Hydraulic Fluids


Operation Data for Resin Bonded Filter Cartridges

Maximum Operating Temperature125 ℃
Max. Working Pressure25 bar
Max. Differential Pressure4.8 bar
Applicable Acidity & AlkalinityPH 4 - 9
Liquid Flow DirectionOutside to inside
Recommend Change out Differential Pressure2.5 Bar
Recommend Flow Rate (10" for water)5μm: 22 L/min
10μm: 30 L/min
50μm: 40 L/min

Tech Support

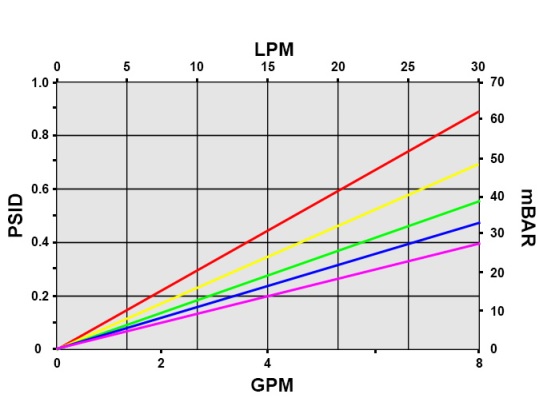

Pressure-Drop Rate of 10" Resin Bonded Filter

GRB Series Grooved Resin Bonded Filter Cartridges

Order Information
GRBLengthMicron RatingIDODEnd Cap

GRB Series

Grooves Resin Bonded

Filter Cartridges

5 = 5"(127mm)1 = 1μmA = 28mmC = 65mmD = DOE(Double Open End)
5 = 5μm
9.8 = 9.8"(248mm)10 = 10μm
25 = 25μm
10 = 10"(254mm)50 = 50μm
75 =  75μmB = 30mm
20 = 20"(508mm)100 = 100μm
100 = 100μm
30 = 30"(762mm)150 = 150μm
40 = 40"(1016mm)200 = 200μm

For Example:


GRB Series Grooves Resin Bonded Filter Cartridges - 10" - 5μm -28mm - 65mm - DOE

Special specifications Resin Bonded Filter Cartridges can be customized, such as special ID, OD, length and end caps etc.
