Phenolic Resin Filter Cartridges - The Preferred Solution for Industrial Liquid Filtration

In industrial production, liquid filtration plays a vital role in ensuring equipment safety and improving product quality. Different application scenarios have varying requirements for filter cartridge performance. In particular, under conditions involving high temperature, strong corrosion, organic solvents, or oils, conventional polypropylene melt-blown filter cartridges often fall short. In contrast, Phenolic Resin Bonded Filter Cartridges stand out as an ideal choice for many industrial liquid filtration systems, thanks to their excellent temperature resistance, chemical resistance, and depth filtration capability.

1. What is a Phenolic Resin Filter Cartridge?

A phenolic resin bonded filter is a deep-bed filter element made from cotton fiber or glass fiber, impregnated with phenolic resin, and then cured at high temperatures. It not only relies on its multi-layered fiber structure for physical interception, but also utilizes the microporous structure and surface charge properties formed by the cured resin to efficiently remove suspended matter, colloids, and organic impurities from liquids.

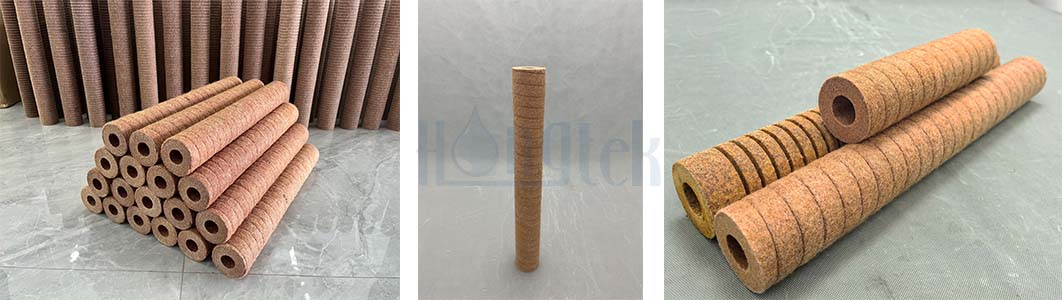

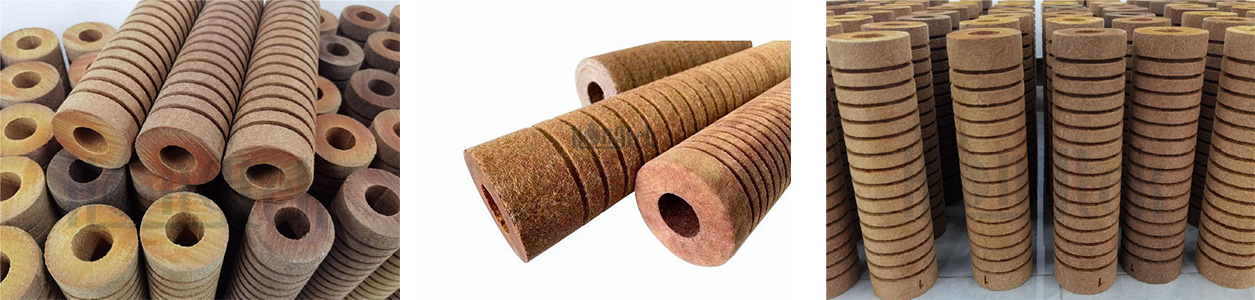

A Grooved Resin-Bonded Filter uses a grooved outer surface to significantly increase its filtration area and dirt-holding capacity. This rigid filter design has a graded pore structure, capturing larger particles on the surface and smaller ones in the inner layers, and excels at filtering high-viscosity fluids and operating under high temperatures and differential pressures in demanding applications like chemical processing and petrochemicals.

2. Advantages Compared with Conventional Melt-Blown Cartridges

Greater structural strength: The thermosetting resin provides a rigid skeleton, preventing collapse or deformation under higher differential pressures where PP cartridges may fail.

Reduced risk of fiber shedding: PP cartridges may release loose fibers into the filtrate, causing secondary contamination. Phenolic resin cartridges, with resin-bonded fibers, avoid this issue.

Improved adsorption properties: The positively charged resin-treated fibers can adsorb negatively charged colloids and organic impurities, reducing turbidity more effectively than standard PP melt-blown filters.

Superior chemical compatibility: While PP cartridges may swell, degrade, or leach substances when exposed to strong acids, alkalis, or organic solvents, phenolic resin cartridges maintain excellent stability in harsh chemical environments.

Higher temperature resistance: Unlike PP melt-blown cartridges that are limited to around 60–80°C, phenolic resin filter cartridges remain stable and effective at much higher temperatures, making them suitable for hot water and high-temperature process fluids.

3. Main Application Areas

In industrial water treatment, phenolic resin filter elements are used to remove particulate matter from cooling water, circulating water, and wastewater systems, protecting pumps, valves, and membrane filtration equipment. Their chemical resistance and durability allow them to adapt to waters with varying pH values, resulting in a long service life and reduced maintenance.

In petroleum and oil purification, phenolic resin filter elements are used to remove solid particles from diesel, gasoline, lubricating oil, and hydraulic oil, ensuring clean oil and extending equipment life. Their stable structure resists breakage under high-pressure oil flow, while their chemical and high-temperature resistance make them reliable in demanding applications such as oil processing.

For hydraulic and lubricating oil filtration, these filter elements remove metal shavings, dust, and other impurities, preventing equipment wear and protecting precision hydraulic components. Their high precision, oil resistance, and high-temperature resistance make them ideal for long-term use in industrial machinery, including injection molding machines, stamping presses, and wind turbine oil systems.

In summary, phenolic resin filter cartridges are highly efficient, durable, and versatile deep filtration products. Although their cost is higher than that of conventional PP melt-blown cartridges, their outstanding performance makes them indispensable in many critical industrial fields and high-quality water purification systems. In industrial liquid filtration, choosing the right filter cartridge is essential. If your application involves high-temperature conditions, organic solvents, or high-precision oil purification, phenolic resin filter cartridges are undoubtedly the more reliable and cost-effective choice.

Contact Us for the product manual, technical support, and the latest quotation on phenolic resin filter cartridges. We are committed to providing professional and reliable solutions for your filtration systems.
