High Flow Pleated Bag Filter – The Ideal Replacement for Filter Bags

In industrial filtration, traditional filter bags are widely used due to their simple installation and low cost. However, as industries demand higher filtration precision, efficiency, and cost control, bag-style pleated high flow cartridges are becoming the ideal alternative to conventional filter bags.

1. What are High Flow Pleated Bag Filter Cartridges?

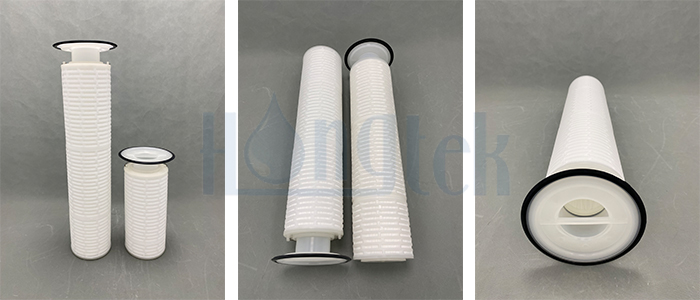

High Flow Pleated Bag Filter Cartridges are innovative filter elements designed for standard bag filter housings. They have the same external dimensions as traditional filter bags, allowing direct installation without modifying existing equipment. 6) Internally, they feature a pleated structure, which significantly increases the filtration area and efficiency.

The pleated design provides 3–5 times more filtration surface area than conventional filter bags, greatly increasing dirt-holding capacity and service life. The structure reduces fluid resistance while maintaining filtration precision, ranging from 0.5 μm to 100 μm, making it suitable for various industrial applications.

2. Key Advantages Key Features & Benefits

1) Broad Compatibility: Made with materials like polypropylene and microglass media, these filters offer broad chemical compatibility for various industrial applications.

2) Reduced Filter Changes: The higher dirt-holding capacity leads to longer service life and less frequent filter changes, which in turn lowers operational and maintenance costs.

3) Simplified Process: A single high flow pleated filter cartridge can often replace many standard depth filter bags, streamlining the filtration process and reducing the number of filters required for a given flow rate.

4) High Surface Area: The pleating of the filter media significantly increases the available filtration surface area, allowing for higher flow rates and better dirt-holding capacity compared to standard bag filters of the same size.

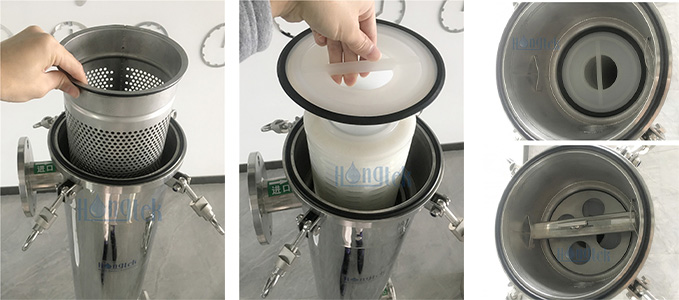

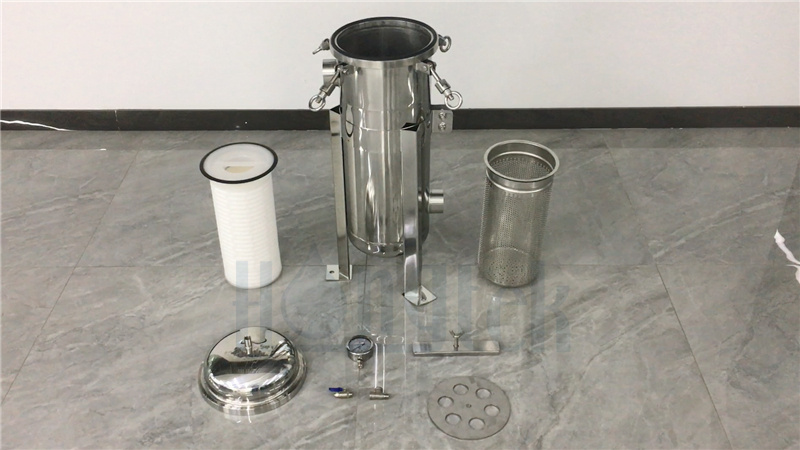

5) Standard Housing Compatibility: High flow pleated bag filters are designed to fit into existing standard Bag Filter Housings (such as replace Size #1 and #2 filter bags), providing an easy upgrade path for existing filtration systems.

6) Inside-to-Outside Flow: This design ensures that contaminants are captured on the inside of the element, which helps prevent them from escaping during filter removal and reduces potential product contamination during change-out.

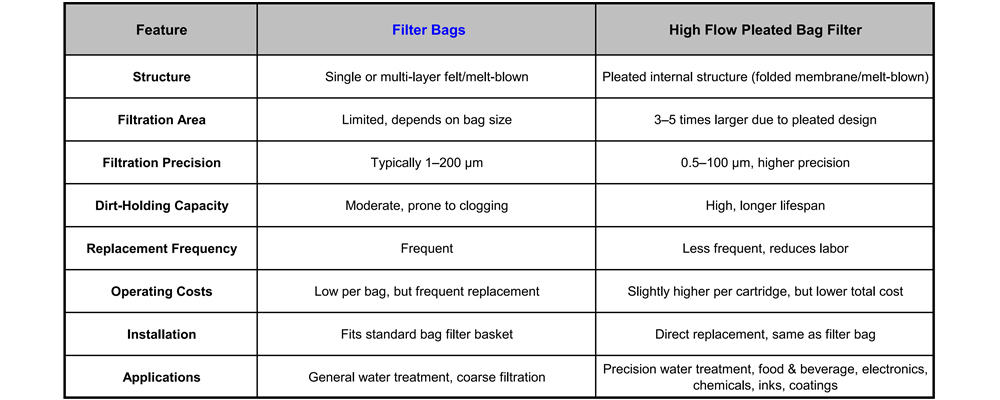

3. The Comparison: High Flow Pleated Bag Filters vs Filter Bags

4. Applications

Bag-style pleated high flow cartridges are widely used in industries requiring high-efficiency filtration and consistent product quality, including: Water Treatment: Industrial circulation water, ultrapure water, RO pre-filtration: Food & Beverage: Beer, soft drinks, dairy products;Fine Chemicals: Solvents, coatings, inks, resins;Electronics: Semiconductor processes, plating solutions, chemicals.

5. Why Choose High Flow Pleated Bag Filter Cartridges?

For industries still using traditional filter bags, these pleated cartridges offer a highly efficient, longer-lasting, and cost-effective filtration solution without equipment modification. It combines the installation convenience of filter bags with the high performance of pleated cartridges. Customizable materials and filtration ratings make it flexible for diverse industrial processes. Eco-friendly design reduces industrial waste, aligning with sustainable development goals.

Conclusion

Choosing High Flow Pleated Bag Filter Cartridgesmeans higher filtration efficiency, longer service life, lower operating costs, and reduced environmental impact — making them the perfect upgrade for modern industrial filtration systems.
