Sintered vs. Extruded Carbon: Which Water Filter Cartridge is Right for You?

Selecting the right activated carbon filter is a critical step. While sintered carbon and extruded carbon filters share a common base material, their manufacturing processes and performance characteristics differ significantly, which directly influences their suitability for various applications and their overall filtration effectiveness. This article provides an objective overview of the technical differences between Sintered Carbon and Extruded Carbon, offering reference information to support your understanding of water filtration technology and product selection.

1. Extruded Carbon Filter Cartridge

Extruded Carbon Block Cartridge Filter is produced through a process dominated by mechanical pressure. Coal-based activated carbon and coconut shell activated carbon are selected as the filtering raw materials, and sintered and compressed with food-grade adhesives. Although compressed carbon may undergo low-temperature baking to relieve stress, its core lies in cold pressing and forming. This process mainly relies on physical deformation, where carbon particles are squeezed against each other through mechanical force to minimize porosity to the greatest extent.

They can effectively adsorb residual chlorine, discoloration, and odor in water, significantly improving both the clarity and taste. At the same time, they exhibit strong removal capabilities toward various volatile organic compounds (VOCs), pesticide residues, and certain heavy metals such as lead and mercury, thereby greatly enhancing water safety. These filters provide an economical and reliable solution for a wide range of applications, including residential drinking water systems, commercial water purification, and industrial wastewater treatment, ensuring cleaner and safer water across different usage scenarios.

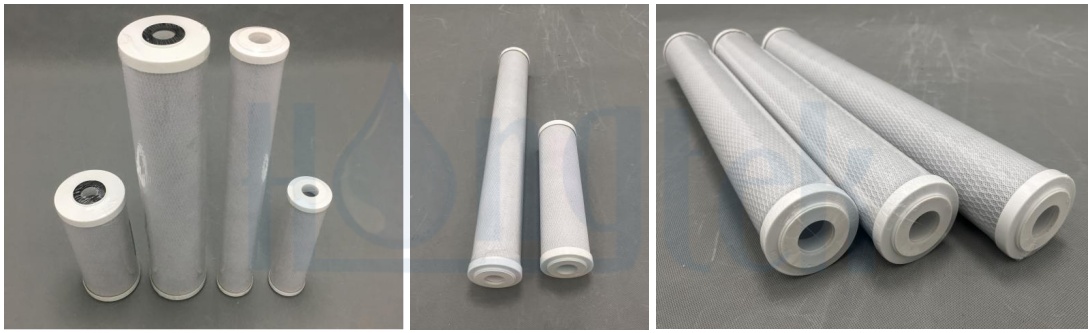

Based on high cost-performance compressed carbon filter cartridge, Hongtek has launched CTO Series Extruded Carbon Block Cartridge Filters and BBC Series Big Blue Carbon Block Cartridge. Those filters series consists of two types of compressed carbon filter elements based on different sizes. They are made of food-grade materials to ensure that no harmful substances are released during the filtration process, meeting the safety standards for drinking water. Coal and coconut shells can be selected as needed, and there are multiple filtration grades to ensure high filtration efficiency for removing residual chlorine.

CTO Series Carbon Filter Cartridge's outer layer is made of polypropylene non-woven fabric, which is used for filtering impurities and sludge. The inner layer is made of high-quality PP non-woven fabric to prevent toner from falling off. Advanced technology and FDA-approved high-quality activated carbon materials ensure excellent durability, minimal pressure loss and high flow rate. It is mainly used in food and beverages, drinking water, alcohol, etc.

Big Blue Cartridge Filters benefit from their dense structure and large volume—common specifications include a length of 20 inches and a diameter of 4.5 inches. This substantial size allows for a greater filtration surface area and depth, enabling the cartridge to capture more sediment, rust, and particulate impurities effectively. The high-density construction also helps prevent premature clogging before the adsorption capacity is fully depleted, thereby extending the service life of the filter. As a result, users benefit from longer intervals between replacements, reduced maintenance costs, and consistently cleaner water output. These features make Big Blue cartridges a reliable and economical choice for both household and commercial water filtration systems.

2. Sintered Carbon Filter Cartridge

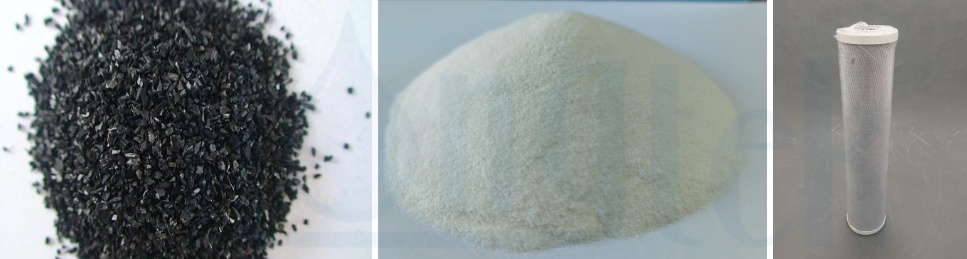

The technical core of sintered carbon filter elements lies in high-temperature sintering technology. 100% high-quality coconut shell activated carbon powder or high iodine value coal-based carbon powder is used as the base material (coconut shell carbon is usually used in high-end products due to its more developed pores, high hardness and low ash content), and high-molecular polymers (such as PE or PP, meeting FDA food contact standards) are added. As a hot-melt adhesive and pore-forming agent. Then fill the well-mixed powder into the mold and heat it under high temperature and specific pressure. During this process, the binder melts and firmly bonds the activated carbon particles together. After cooling and solidification, a structurally stable filter element is formed.

Sintered Carbon not only provides it with a huge filtration surface area and extremely strong adsorption capacity, ensuring the product's outstanding adsorption performance, consistent filtration effect and long-term durability, but also enables mechanical interception filtration, supports high-flow filtration while maintaining low pressure drop, an it is widely applicable to multiple fields.

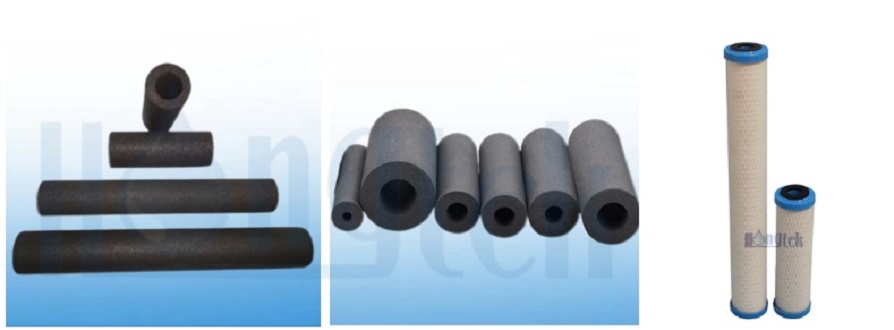

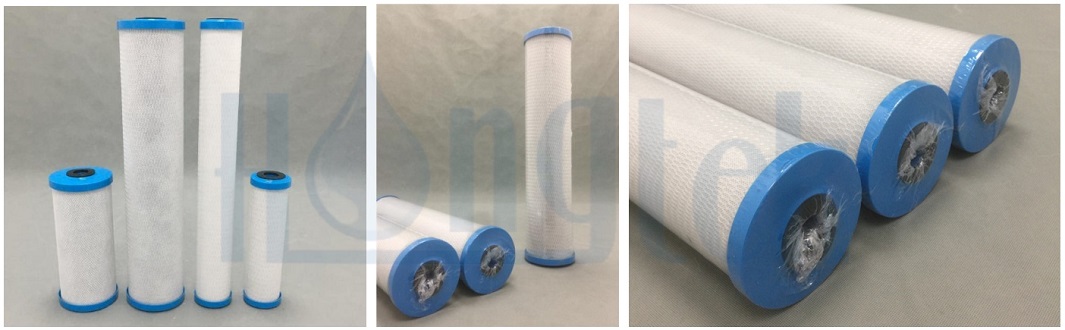

Hongtek, based on advanced sintering technology, The SBC Series Sintered Carbon Block Cartridge Filters and the SCF Series Sintered Big Blue Carbon Block Filter Cartridges have been introduced. They share the core advantages of sintered carbon technology. Whether it is for household water purifiers, commercial drinking water systems, pre-treatment of water for food and beverage processing, industrial water treatment, or even medical and laboratory environments that require highly reliable water quality, sintered carbon filter elements are a reliable choice. However, the two models have their own focuses in terms of design positioning and applicable scenarios to meet your different needs.

If you need to choose a reliable and reasonably priced Sintered Carbon filter Cartridge for household water purifiers or small commercial equipment to improve the taste of drinking water and protect the membrane elements at the back end, SBC Series Sintered Carbon Block Cartridge Filters are recommended as the first choice. It is a standard filter element with an inner diameter of 28mm and an outer diameter of 2.55 inches, which can meet the regular household water flow requirements. With balanced performance, economic practicality and strong adaptability, it is a cost-effective choice.

If you are dealing with a larger volume of water or your equipment installation space is compatible with the "Big Blue" specification Filter housing (4.5 inches in diameter), our SCF Series Sintered Big Blue Carbon Block filter Cartridges is preferred. It is designed for high flow rate and strict requirements, featuring high flow rate, meeting the demand for large water volume, high filtration efficiency, long-lasting durability, lower pressure drop and extremely high mechanical strength.

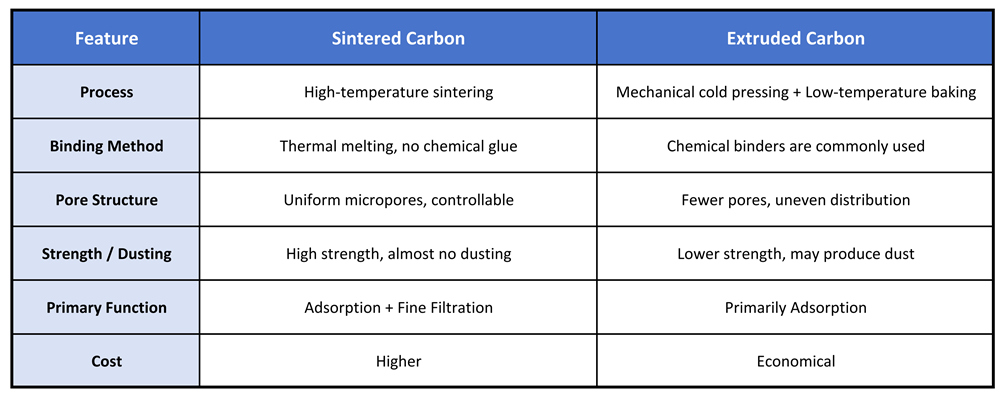

3. Selection Guide and Practical Application

First of all, it can be chosen based on the water quality conditions.

Recommended situations for sintering carbon: (1) The water quality contains a relatively high concentration of organic pollutants, such as pesticide residues, volatile organic compounds (VOCs), chloroform, etc. (2) The water body has a distinct unpleasant smell or color, or it originates from complex water sources such as surface water or old water networks; (3) It is used as a pre-treatment for reverse osmosis (RO) systems to protect RO membranes from chlorine and organic contamination. (4) Scenarios where there are high requirements for the taste of the water, such as the preparation of direct drinking water and beverage water.

Recommended situations for compressed carbon: (1) Municipal tap water with relatively good water quality, mainly containing residual chlorine, particulate matter and sediment as the main pollutants; (2) The water has a relatively high hardness and prominent scale problems, and it is necessary to balance scale inhibition and filtration. (3) The budget is limited, but a medium and low flow system for basic chlorine adsorption and impurity filtration still needs to be implemented.

Secondly, measure the installation space and interfaces in the working conditions. Sintered carbon has high mechanical strength and is not prone to cracking, making it more suitable for industrial scenarios with significant vibration or those that require frequent replacement. Compressed carbon is low in cost and easy to replace, making it suitable for household users or situations where replacement is frequent.

Furthermore, , it can be selected based on the service life and maintenance cost. Although sintered carbon has a relatively high unit price, it has a longer service life and is suitable for users who wish to reduce the frequency of replacement and maintain the long-term stable operation of the system. Compressed carbon is economically priced and has a low replacement cost, making it suitable for users with limited budgets or relatively good water quality.

Finally, if you need a combination of suggestions, for situations with complex water quality or high requirements, a combination scheme of "sintering before + compression after" can be adopted: the sintered carbon at the front end is responsible for efficiently adsorbing complex pollutants such as organic matter and chloramines; The compressed carbon at the back end further intercepts residual particles, regulates the taste and extends the system's lifespan.

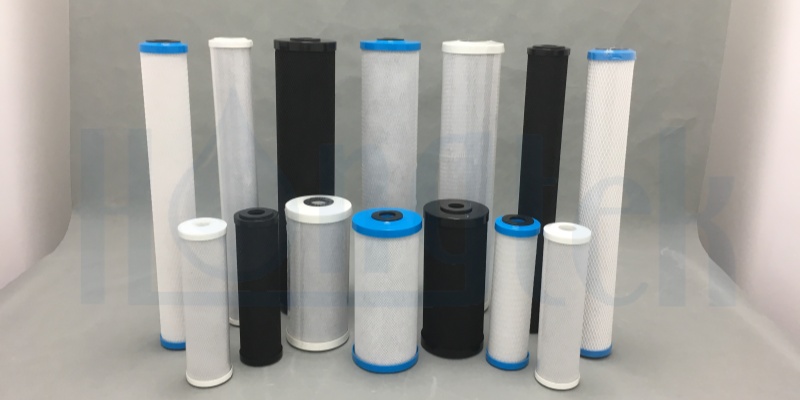

Understanding the difference between sintered and extruded carbon is the first step toward cleaner, safer water. Whether you need the cost-effective reliability of extruded carbon or the advanced protection of sintered technology, Hongtek has a solution for you. [Browse Our Full Range of Carbon Filter Cartridges] to find the perfect match for your needs.
