What are Tangential Flow Filtration and Dead-End Filtration?

Have you ever encountered such challenges during experiments or production: filtration slowing down over time, frequent membrane clogging, and precious sample yields falling short of expectations? Often, this is not an operational issue but stems from fundamental differences in filtration technology selection. In the world of separation and purification, Tangential Flow Filtration (TFF) and Dead-End Filtration are two core pathways. Understanding their differences is key to overcoming difficulties and enhancing process efficiency.

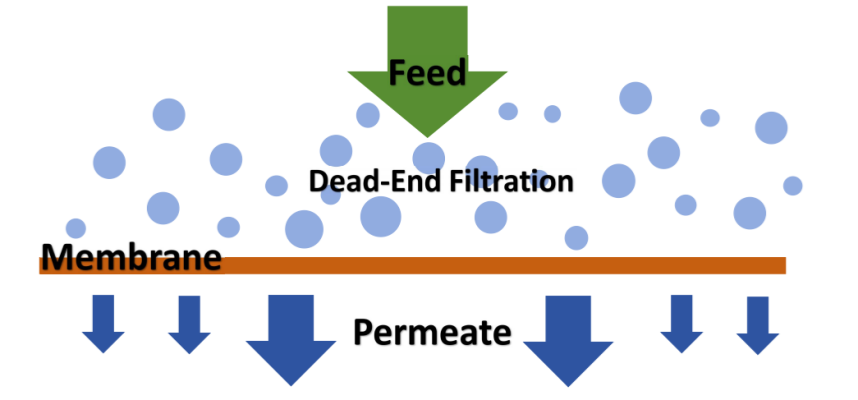

1. Dead-End Filtration

Dead-end filtration can be imagined as a straightforward "gatekeeper." The liquid to be treated is driven by pressure and flows perpendicularly toward the filter membrane. All components smaller than the membrane pores pass through, while particles, impurities, and even microorganisms are directly intercepted on the membrane surface or within its depth. This process is simple and efficient. However, as filtration proceeds, the retained substances accumulate, forming a dense "cake layer," which drastically increases filtration resistance and naturally slows down the flow rate until the Filter Element needs replacement. Therefore, it is highly suitable for processing relatively clear liquids with low solid content, aiming to quickly obtain clean filtrate—such as final sterilization of solutions, clarification, or simple particle removal.

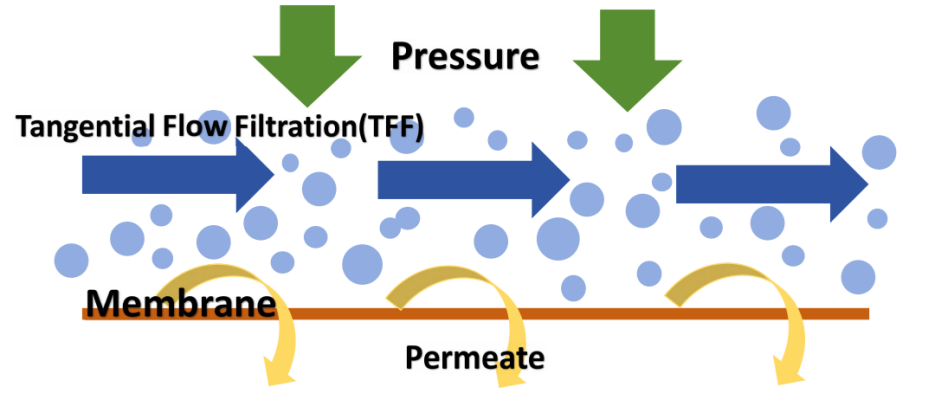

2. Tangential Flow Filtration (TFF)

When your goal shifts from simple "filtration and removal" to "separation and concentration," Tangential Flow Filtration (TFF) technology demonstrates its irreplaceable value. Its working mechanism resembles an efficient "flow splitter." The feed liquid, driven by a pump, flows rapidly parallel to the membrane surface, generating strong shear forces. Under pressure, a portion of small molecules and solvents passes perpendicularly through the membrane, becoming the permeate, while the desired large-molecule targets (such as proteins, antibodies, or viruses) are continuously "swept" by the flowing stream. This prevents them from accumulating on the membrane surface, allowing them to return to the feed tank for progressive concentration. This design enables TFF to handle complex feeds with high solid content, high viscosity, or sensitive biomolecules with ease. Its core applications include the concentration, desalting, and buffer exchange of bioproducts.

3. How to Make the Decision?

When facing a specific project, how can you make a decision you won’t regret? The following framework may serve as a guide: First, clarify the primary process objective. The core question is: What exactly do you want to achieve? If the answer is “to obtain an exceptionally clean liquid,” then dead-end filtration is often the straightforward choice. If the answer is “to concentrate specific macromolecules in the liquid or to replace their buffer environment with a purer one,” then tangential flow filtration is the only suitable path.

When the only requirement is to quickly obtain clean filtrate, there are mature product solutions available on the market for such demands. For instance, for pre-filtration scenarios involving large volumes of water or chemicals, Hongtek's High Flow PP Pleated Filter Elements, with their deep filtration and high dirt-holding capacity, offer an economical and reliable choice. In laboratory or small-scale processes, for fine sterilization and clarification of culture media or reagents, Hongtek's PP Pleated Filter Elements provide excellent filtration precision and efficiency.

Second, conduct an in-depth analysis of the feed liquid characteristics. This is a critical input for the decision. Carefully assess the solid content, viscosity, particle size distribution, and the sensitivity of the target molecules (e.g., sensitivity to shear forces). Turbid, viscous, or high-solid-content feed liquids can quickly clog a dead-end filter but are routinely handled by tangential flow filtration systems.

In TFF systems, the choice of membrane material is critical. For example, Hollow Fiber PVC Ultrafiltration Membrane Module - with their good hydrophilicity and relatively low cost - are commonly used in large-scale water treatment or preliminary concentration processes where protein adsorption is not a major concern. For demanding applications in bio-pharmaceutical processes involving harsh chemical cleaning or organic solvents, PVDF Hollow Fiber Ultrafiltration Membrane Module have become the mainstream choice. Their excellent chemical compatibility, mechanical strength, and lower protein adsorption ensure process stability and high recovery rates of target products.

Finally, perform a full life-cycle cost analysis. The decision should not be based solely on the initial purchase cost. For dead-end filtration, consider the frequency of filter replacement, downtime, and disposal costs. For tangential flow filtration, factor in equipment investment, energy consumption, cleaning validation costs, and the lifespan of the membrane modules. Typically, in large-scale, high-value continuous production processes, the long-term economic advantages of tangential flow filtration become increasingly evident.

4. Beyond Choice: Technology Integration and Process Optimization

In complex modern production workflows, these two technologies are not mutually exclusive but often work in tandem as the "ultimate partners." A classic bioproduct purification line might look like this: first, use depth filtration (a specialized form of dead-end filtration) for initial clarification to remove cell debris; then, employ tangential flow filtration for preliminary concentration and buffer exchange; after fine purification steps, use a sterilizing-grade filter (dead-end filtration) again to provide absolute sterility assurance for the final product. This combined approach fully leverages the strengths of each method, maximizing both efficiency and safety.

Furthermore, regardless of which technology is chosen, successful implementation relies on precise control and a deep understanding of key process parameters. In dead-end filtration, monitoring the initial flux and pressure rise curve can help predict clogging risks. In tangential flow filtration, transmembrane pressure (TMP), tangential flow rate, and concentration factor are the three golden parameters—together, they determine filtration efficiency, product yield, and the rate of membrane fouling. Establishing a scientific process development and scale-up strategy is crucial for ensuring a smooth transition from laboratory-scale trials to industrial production.

Conclusion:

Thus, the logic behind choosing a filtration technology becomes clear: if your core need is to remove impurities from a liquid to obtain a clarified filtrate, and the feed liquid is relatively clean, then dead-end filtration and its corresponding filter products offer a straightforward solution. Conversely, if your goal is to concentrate, purify, or exchange the buffer of valuable macromolecules in a liquid, then regardless of how turbid or complex the feed liquid is, implementing a tangential flow filtration system is the inevitable choice. Understanding the fundamental principles and capabilities of these two technologies not only addresses immediate challenges like clogging but also serves as the foundation for advancing R&D and production processes toward greater efficiency and intelligence.
