BRP Series FRP Single Filter Bag Housing
BRP Series FRP Single Filter Bag Housing BRP Series FRP Single Filter Bag Housing BRP Series FRP Single Filter Bag Housing
BRP Series FRP Single Filter Bag Housing BRP Series FRP Single Filter Bag Housing BRP Series FRP Single Filter Bag Housing

BRP Series FRP Single Filter Bag Housing

Description

BRP Series FRP Single Filter Bag Housing is mainly used in occasions where stainless steel filter bag housing cannot be used. FRP filter bag housing has good sealing, large filtration area, high filtering efficiency, strong chemical compatibility, convenient operation and low maintenance costs. The liquid to be filtered enters through the inlet of the FRP bag filter housing, flows into the filter bag, and flows out from the outlet of the filter bag housing after being intercepted by the filter bag. Compact and simple structure, easy to clean and replace filter bag.

FRP single filter bag housing is widely used in food and beverage industry, electronic biological industry, chemical and pharmacy, seawater desalination project, high-viscosity fluid filtration of paint and coating, power plant water treatment filtration system etc.

Specification
Housing MaterialFRP(Fibre Reinforced Plastic)
Housing DirectionVertical
Bag Size#1, #2, #3, #4
Number of Bag1 Piece
Filtration Rating1μm - 300μm
ConnectionSide Port
Inlet/OutletDN40, DN50
Sealing TypeSwing Bolt Hinged
Seal MaterialEPDM, Silicon, Buna-N, Viton


Feature

● Suitable for various sizes and different materials filter bags, wide range of applications

● The bag filter is small pressure loss, low operating cost, and obvious energy saving effect

● The bag filter has a large water volume, small footprint and a strong dirt holding capacity

● The sealing ring of FRP filter bag housing uses food grade material to ensure no side leakage

● FRP single filter bag housing is no residual impurities, easy to clean, avoid secondary pollution

● It is convenient and quick to replace the filter bag, FRP bag filter housing is easy to be cleaned


Application

● RO Prefiltration

● Water Treatment

● Paint and Coating

● Food and Beverage

● Sea Water Desalination

● Chemical and Pharmacy

● Electronic and Biological

● Power Plant Water Treatment


Performance

Operation Data for FRP Single Filter Bag Housing

Max. Temperature80°C
Max. Pressure150 PSI
Liquid Flow DirectionSide in and side out
Flow RateSingle Size 2: Ø7"× 32" Filter Bag: 30m³/h


Tech Support

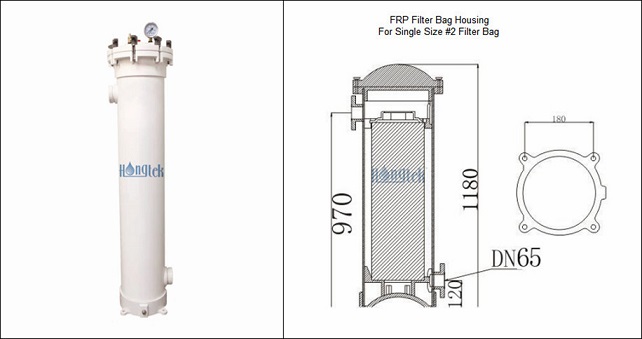

Drawing of Size #2 FRP Single Filter Bag Housing


● FRP bag filter housing is low operating cost, good filtration effect and long working life

● FRP single filter bag housing can be made according to the filter bag of various sizes you need

● FRP filter bag housing has a large water volume, small footprint and strong dirt holding capacity


FRP Filter Bag Housing Production Lines



Order Information
BRPBag DimensionsNumber of BagO-ring Material

BRP Series

FRP Single Filter Bag Housing

S1 = Size 1: Ø7"×16.5"1 = 1pcE = EPDM
S2 = Size 2: Ø7"× 32"S = Silicon
S3 = Size 3: Ø4"× 8"B = Buna-N
S4 = Size 4: Ø4"× 14" V = Viton

For Example:

BRP-S2-1-E

BRP Series FRP Single Filter Bag Housing - Size 2: Ø7"× 32" - 1pc - EPDM

Special Specification FRP Filter Bag Housing with Filter Bag is Accepted to be Customed
