VRP Series Vertical Single FRP High Flow Filter Housing
VRP Series Vertical Single FRP High Flow Filter Housing VRP Series Vertical Single FRP High Flow Filter Housing VRP Series Vertical Single FRP High Flow Filter Housing
VRP Series Vertical Single FRP High Flow Filter Housing VRP Series Vertical Single FRP High Flow Filter Housing VRP Series Vertical Single FRP High Flow Filter Housing

VRP Series Vertical Single FRP High Flow Filter Housing

Description

VRP Series Vertical Single FRP High Flow Filter Housing has the characteristics of strong corrosion resistance, high temperature resistance, high strength and non-conductivity. It adopts a single filter element design and is matched with a high flow series filter element. It can be configured as an independent unit according to the on-site environment or combined with a reverse osmosis system to effectively save space.

The appearance of high flow FRP filter housing is smooth and clean on the inner surface to prevent the growth of bacteria, easy to clean and cost-effective. FRP high flow filter housing is widely used in industrial  RO prefiltration systems, UF pretreatment, food and beverage, power plant water treatment, fine chemical water treatment, sea water desalination systems, etc.


Specification
Housing MaterialFRP (Fibre Reinforced Polymer/Plastic)
Housing DirectionVertical
Cartridge Length20", 40", 60"
Number of Cartridge1 Piece
Installed Filter TypeOD 6" High Flow Filter Cartridge
Filtration Rating1μm - 100μm
ConnectionSide Port
Inlet/OutletDN80
Sealing TypeSwing Bolt Hinged
Seal MaterialEPDM, Buna-N, Viton, Silicon


Feature

● Easy installation and low maintenance cost, cost-effective and saving labor

● FRP high flow filter housing has larger water capacity and smaller installation space

● FRP filter housing are 50% lower equipment space than stainless steel filter housing

● Multi FRP high flow filter housings can be combined to meet the needs of larger flux

● Strong corrosion resistance, high temperature resistance, high strength and non-conductive


Application

● RO Prefiltration

● Water Treatment

● Food and Beverage

● Medical and Chemical

● Sea Water Desalination

● Electronic Ultrapure Water

● Ultrafiltration Pretreatment

● Power Plant Water Treatment


Performance

Operation Data for Vertical Single FRP High Flow Filter Housing

Max. Temperature80°C
Max. Pressure150 PSI
ConnectionSide in and side out
Flow Rate20" length: 15m³/h
40" length: 30m³/h
60" length: 45m³/h


Tech Support

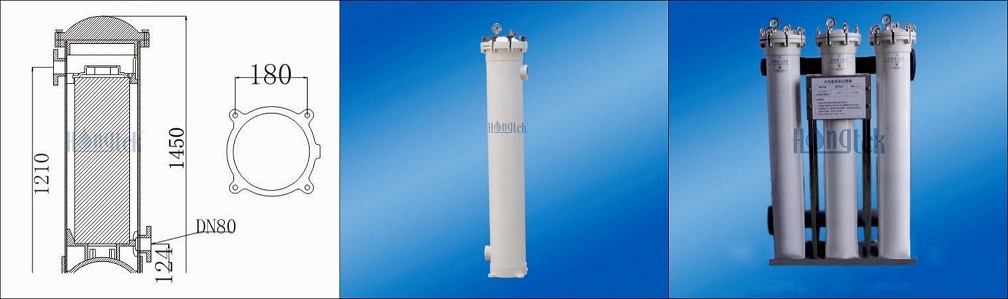

Combination of FRP High Flow Filter Housings


● Triple combined of FRP high flow filter housings, large flow rate, up to 90m3/h, easy to install and maintain

● Strong dirt holding capacity, improve filtration efficiency, wide applications, longer service life & lower energy consumption

● Free combination according to water capacity, save 50% space than stainless steel cartridge filter housing, economical and applicable


FRP High Flow Filter Housing Production Lines



Order Information
VRPFilter LengthNumber of FilterO-ring Material

VRP Series Vertical Single

FRP High Flow Filter Housing

20 = 20"1 = 1pcE = EPDM
40 = 40"B = Buna-N
60 = 60" V = Viton
S = Silicon

For Example:

VRP-40-1-E

VRP Series FRP High Flow Filter Housing - 40" - 1pc - EPDM

Accept special customization and multi FRP filter housings combination
