FCH Series Stainless Steel Single High Flow Cartridge Housing

Description

FCH Series Seires Stainless Steel Single High Flow Cartridge Housing is suitable for large flow filtration system projects. SS high flow cartridge housing is made of high quality SS304 or SS316L stainless steel and superb technology. According to the installation form, single high flow cartridge housing is divided into vertical and horizontal SS high flow filter housing. SS Single high flow cartridge housing is suitable for installing various pleated high flow filter elements, with good sealing performance, simple installation and convenient maintenance.The rating of the large flow filter ranges from 1 micron to 100 microns, with high filtration efficiency, high flow and low pressure drop. Compared with the depth filter housings, SS high flow cartridge housing has higher filtration efficiency and larger flow, saving 50% of the space and the number of filter elements that need to be replaced, thereby saving much labor costs.

Specification
MaterialSS304, SS316L
Housing DirectionVertical, Horizontal
Surface TreatmentPolished, Sub-polished, Sandblast
Cartridge Length20", 40", 60"
Cartridge SizeOD 6", 6.5"
Cartridge End CapSOE
No. of Cartridge1pc
ConnectionSide Port
Inlet/OutletThread, Flange
Sealing TypeSwing bolt hinged, Clamp
Seal MaterialEPDM, Silicon, Buna N, Viton


Feature

● SS high flow cartridge housing is easy to install, low labor cost and maintain

● A wide range of chemical applications can be used in many fields which need high flow rate

● The number of replacement filter elements is reduced, thus saving much labor costs and 50% footprint

● The design of the sealed interface reduces the risk of side flow, thereby improving the filtration efficiency

● Under the guarantee of ultra-high pollution holding capacity, the service life is extended, thereby reducing the cost


Application

● Petrochemical

● RO Prefiltration

● Microelectronics

● Food and Beverage

● Seawater Desalination

● Biopharmaceutical Industry

● Power Plant Condensate Filtration


Performance

Operation Data for FCH Series Stainless Steel Single High Flow Cartridge Housing

Max. Temperature125℃
Max. Pressure10 Bar (150psi) or according to requirement
Recommended Pressure≤ 8 Bar (115psi) at 25℃


Tech Support

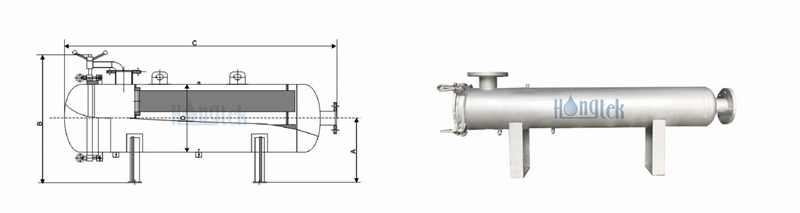

Drawing of Stainless Steel Single High Flow Cartridge Housing


● Housing are available to accommodate 20", 40", 60" length high flow filters

● 316L stainless steel material of construction is available for corrosion resistance

● Housing will accept industry standard high flow filter cartridge from Pall, Parker and 3M

● High flow performance in a compact design with operator-friendly cartridge change-out

● Horizontal design makes cartridge change easier and quicker without need for elevated platform. Vertical orientation is also available


Order Information
FCHCartridge LengthMaterialHousing DirectionInlet/Outlet Sealing TypeSeal Material

FCH Series Stainless Steel

Single High Flow Cartridge Housing

20 = 20"S4 = SS304A = VerticalT = ThreadC = ClampE = EPDM
40 = 40"S = Silicon
S6 = SS316LD = HorizontalF = FlangeH = Swing bolt hingedB = Buna N
60 = 60"V = Viton

For Example:

FCH-40-S4-A-F-C-E

FCH Series SS Single High Flow Cartridge Housing - 40"-SS304 -Vertical - Flange - Clamp - EPDM
