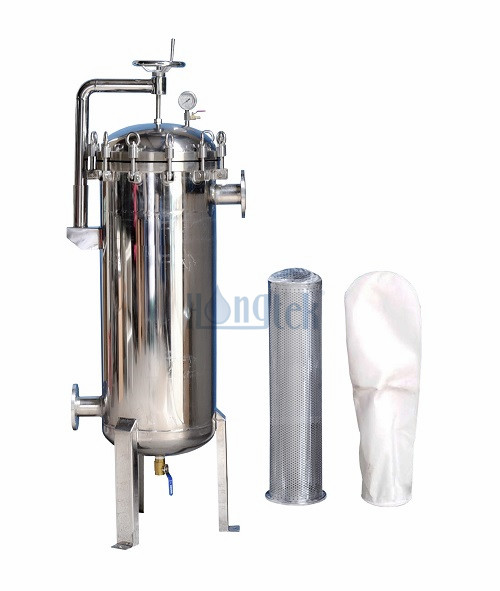

MFH Series Stainless Steel Multi Bag Filter Housing is mainly composed of three parts: bag filter housing, support basket and filter bag. SS multi bag filter housing is a professional liquid filtration equipment, which can effectively remove particles of different sizes in the liquid, so as to achieve the purpose of liquid filtration, purification, separation and recovery. Stainless steel multi bag filter housing can bear greater working pressure, with small pressure loss, low operating cost and obvious energy saving effect.
SS bag filter housing has large flow, small volume, and strong dirt holding capacity. Stainless steel multi bag filter housing is convenient and quick to replace the filter bag, and the filter bag can be used repeatedly after cleaning, saving some cost. Bag filter housing has a wide range of applications, flexible use and various installation methods.
| Material | SS304, SS316L |
| Style | Side Entering Type |
| Surface Treatment | Polished, Sub-polished, Sandblast |
| Bag Size | Size 2: Ø7"× 32" |
| No. of Bag | Multiple filter bags |
| Connection | Flange |
| Inlet/Outlet | Side In and Side Out, Side In and Bottom Out |
| Sealing Type | Swing bolt hinged |
| Seal Material | Silicon, EPDM, Buna N, Viton |
● SS multi bag filter housing is made of high quality stainless steel 304 or 316L
● SS bag filter housing is simple to be cleaned, easy to maintain, and save labor and time
● Bag filter housing has strong pressure bearing capacity, small pressure loss and low operating cost
● SS bag filter housing has high filtration rating, large flow, small volume, and strong dirt holding capacity
● Stainless steel bag filter housing is good sealing, no side leakage of the filter bag, ensuring the filtration quality
● Pre RO
● Electronics
● Desalination
● Power industry
● Textile industry
● Pharmaceutical
● Food & Beverage
● Water Treatment
Operation Data for MFH Series SS Multi Bag Filter Housing
| Max. Temperature | 125℃ |
| Max. Pressure | 10 Bar (150psi) or according to requirement |

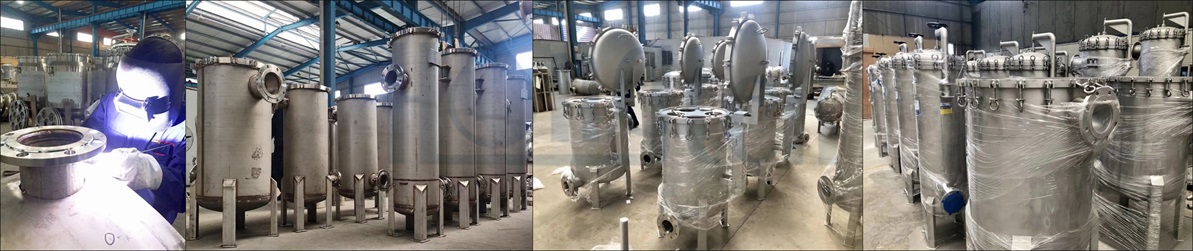

Stainless Steel Filter Multi Bag Housings Factory Production Display
● We have advanced welding technology and use advanced argon arc welding. Each welding joint is firm, detailed and beautiful, with no side leakage
● Multi bag filter housings are widely used in water treatment systems, new energy industries, petrochemicals, food and beverage, recycled water etc.
● The liquid is flushed into the filter bags from the inlet, and particulate impurities are intercepted inside the filter bags to complete the filtration process
● The SS multi filter bag housings adopt high-quality 304 or 316L steel, and the container thickness and diameter size can be flexibly adjusted when needed
● The surface treatment of the multi bag filter housings include processes such as polishing, matte, and sanding. The size can be flexibly designed and adjusted
● With multiple automated stainless steel coiling machines and sufficient inventory of accessories, fast delivery times and high-quality services with good quality

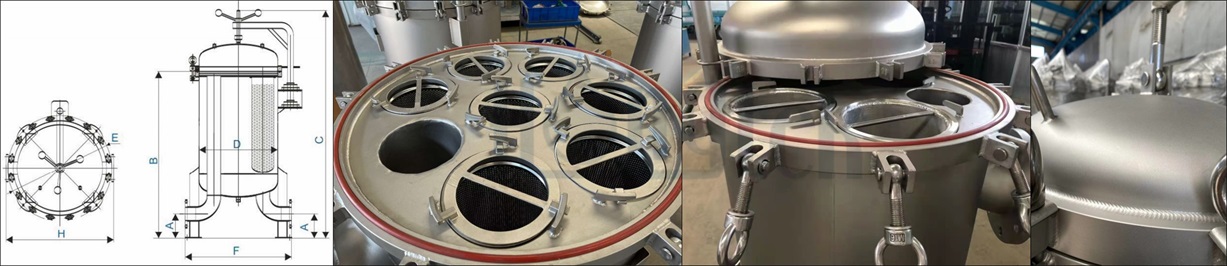

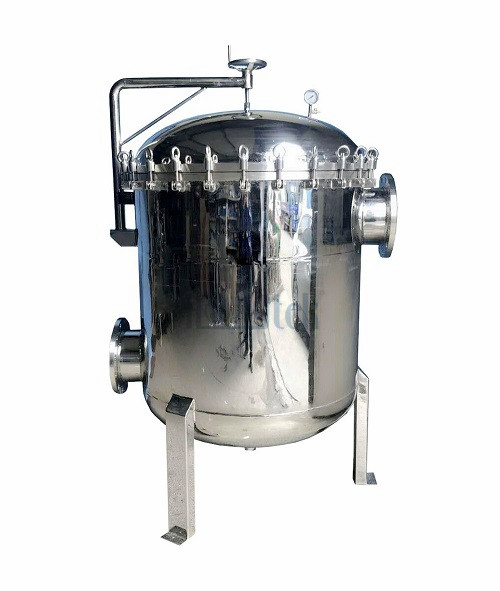

Detail of Stainless Steel Multi Bag Filter Housing
● Containing up to 50pcs filter bags, excellent for use in liquid filtration for a high flow capacity request
● Compact design, no internal moving parts to allow for easy access and reducing the cost of maintenance
● The inside and outside surface are polished finish or sandblast with reasonable structure and no dead angle
● Made of durable SS304 or SS316L with sandblasted, brushed & electropolished with operating pressure up to 150psi
● SS multi bag filter housing is available in small to large sizes to accommodate specific flow and filtration requirements.
| MFH | Material | Filter Bag Size | No. of Filter Bag | Inlet/Outlet | Seal Material |
MFH Series SS Multi Bag Filter Housing | S4 = SS304 | 02 = Size 2: Ø7"× 32" | 2R = 2pcs | F = Flange | E = EPDM |
| 4R = 4pcs | |||||
| 5R = 5pcs | S = Silicon | ||||
| 6R = 6pcs | |||||
| S6 = SS316L | 8R = 8pcs | B = Buna N | |||
| 10R = 10pcs | |||||
| ↓ | V = Viton | ||||
| 50R = 50pcs |
For Example:
MFH-S4-02-8R-F-S
MFH Series SS Multi Bag Filter Housing - SS304 - Size 2: Ø7"× 32" - 8pcs - Flange - Silicon
Please note: Due to the variety of bag filter housing designs, please contact Hongtek sales for more information, housings can be customized according to your requirement, thank you!
