MCH Series Stainless Steel Multi Cartridge Filter Housing is manufactured by high quality SS304 or SS316L stainless steel and workmanship. SS multi filter housing accommodate different end cap styles of filter cartridges in either DOE or SOE, providing economic and efficient alternatives of filtration processes. SS multi cartridge filter housing is suitable for a wide variety of filtration applications requiring high temperature and operating pressure. Filter elements installed inside SS multi cartridge housing are change out quick and easy while ensuring good sealing performance. SS cartridge filter housing is widely used for many industrial and commercial micron filtration systems.
| Material | SS304, SS316L |
| Surface Treatment | Polished, Sub-polished, Sandblast |
| Cartridge Length | 10", 20", 30", 40" |
| Cartridge Size | OD 2.5" |
| No. of Cartridge | Multiple filter elements |
| Connection | Thread, Flange |
| Inlet/Outlet | 1", 1.5", 2", 4" etc. |
| Sealing Type | Swing Bolts, Clamp |
| Seal Material | EPDM, Silicon, Viton |
| Cartridge End Cap | DOE, SOE |
● Stainless steel filter housing is easy to install, maintain and clean, convenient and efficient for change cartridge filters
● SS multi cartridge housing is suitable to work under high pressure and no fluid leakage, safe and reliable long service life
● SS multi cartridge filter housing is made of high quality stainless steel, surface treatment with electrolytic polishing or matt
● SS multi cartridge filter housing is large filtration area, high flow rate and low plugging rate, strong resistance to acid and alkali
● RO Prefiltration
● Food & Beverage
● Medical and Chemical
● Petrochemical Industry
● Household Water Filtration
● Industrial Wastewater Treatment
Operation Data for Stainless Steel Multi Cartridge Filter Housing
| Max. Temperature | 130℃ |
| Max. Pressure | 10 Bar (150psi) or according to requirement |
| Recommended Pressure | ≤ 8 Bar (115psi) at 25℃ |

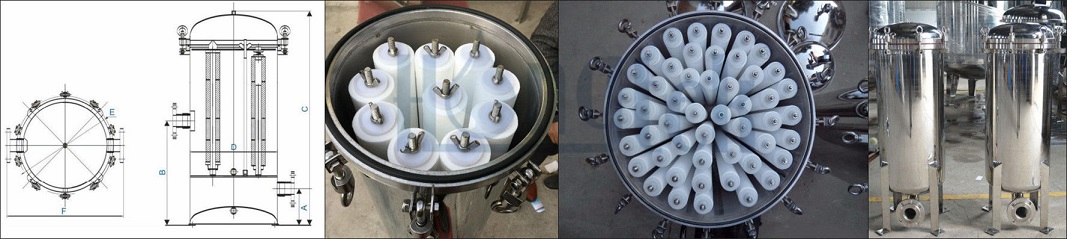

Stainless Steel Multi Cartridge Filter Housing Production Display
● Accepts complete range of filter cartridges with 222/226/DOE end caps
● Food-grade design, no sanitary dead corners, can be completely disassembled and clean
● We offer up to 50 rounds cartridge housing for all industrial needs application with unique spring aided design
● Ergonomic and easy-to-use cover closure, quick-opening design, competent for strict application requirements
● Suitable for RO plants, water treatment plants, wastewater recycling, petrochemicals, plating solutions with high water pre-filtration.
How to Install SS Multi Cartridge Filter Housing?
Installing a stainless steel multi-cartridge filter housing typically involves several steps to ensure proper setup and functionality. Here's a general guide on how to install an SS multi-cartridge filter housing:
1. Prepare the Installation Area:
● Choose a suitable location for the filter housing, ensuring it is easily accessible for maintenance and cartridge replacement.
● Ensure the installation area is clean, dry, and free from obstructions.
2. Connect Inlet and Outlet Lines:
● Identify the inlet and outlet ports on the filter housing.
● Connect the inlet pipe to the inlet port of the housing and the outlet pipe to the outlet port using compatible fittings and connectors.
● Ensure all connections are tight and leak-free.
3. Install Cartridges:
● Open the housing by loosening the closure mechanism, such as swing bolts or clamps.
● Insert the filter cartridges into the housing according to the manufacturer's instructions, ensuring they are properly seated and aligned.
● If the housing has multiple cartridge tiers, install cartridges in each tier following the designated order.
4. Close and Seal the Housing:
● Once the cartridges are installed, close the housing by securely tightening the closure mechanism.
● Ensure that the housing is properly sealed to prevent bypass and maintain filtration integrity.
5. Check for Leaks:
● Before operating the filter housing, carefully inspect all connections and seals for leaks.
● Tighten any fittings or connections as needed to eliminate leaks.
6. Pressure Relief:
● If the system operates under pressure, release any trapped pressure in the system before starting the filtration process.
● Follow proper safety procedures when releasing pressure to avoid injury.
7. Start the Filtration Process:
● Once the installation is complete and any pressure is relieved, start the filtration process by opening the inlet and outlet valves.
● Monitor the system for any abnormal pressure readings or leaks during operation.
| MCH | Cartridge Length | Material | No. of Cartridge | Inlet/Outlet Connection | Seal Material |
MCH Seires Stainless Steel Multi Cartridge Filter Housing | 10 = 10" | S4 = SS304 | 2R = 2pcs | T = Thread | S = Silicon |
| 5R = 5pcs | |||||
| 20 = 20" | 8R = 8pcs | E = EPDM | |||
| 12R = 12pcs | |||||
| 30 = 30" | S6 = SS316L | 15R = 15pcs | F = Flange | ||
| 20R = 20pcs | V = Viton | ||||
| 40 = 40" | ↓ | ||||
| 50R = 50pcs |
For Example:
MCH-40-S4-8R-F-E
MCH Seires Stainless Steel Multi Cartridge Filter Housing - 40" - SS304 - 8pcs - Flange - EPDM
Please note: Due to the variety of bag filter housing designs, please contact Hongtek sales for more information, housings can be customized according to your requirement, thank you!
