SCH Series Stainless Steel Single Cartridge Filter HousingSCH Series Stainless Steel Single Cartridge Filter HousingSCH Series Stainless Steel Single Cartridge Filter Housing

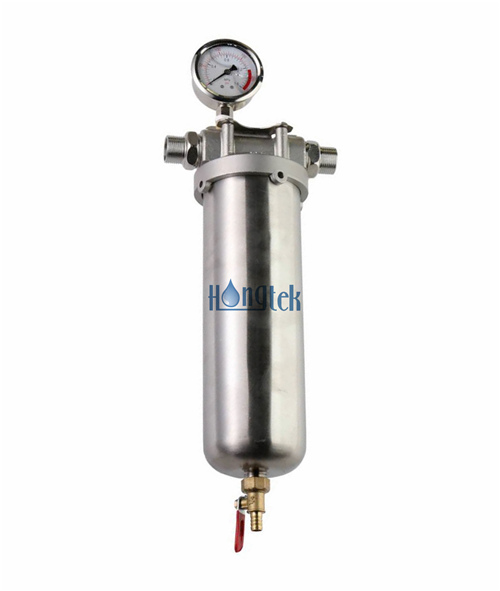

SCH Series Stainless Steel Single Cartridge Filter Housing

Description

SCH Series Stainless Steel Single Cartridge Filter Housing is manufactured by SS304 or SS316L, due to wide chemical compatibility, high temperature endurance and durability, SS single filter housing is particularly recommended for processes requiring high temperature which is not accepted by plastic filter housing. The water filter cartridges installed in SS single cartridge housing is available in standard and big blue sizes for different length. Stainless steel single cartridge filter housing offer economic and efficient alternatives for domestic, commercial and industrial water filtration. SS single filter housing is easy to install and maintain, high flow rate and long service life.

Specification
MaterialSS304, SS316L
Surface TreatmentPolished, Sandblast
Cartridge Length5", 10", 20", 30", 40"
Cartridge SizeOD 2.5", 4.5"
No. of Cartridge1pc
ConnectionBSPF, NPTF
Inlet/Outlet1/2", 3/4", 1"
Sealing TypeThread, Clamp
Seal MaterialEPDM, Silicon, Viton
Cartridge End CapDOE, SOE
BottomFlat Bottom, Drain with Plug
Feature

● SS single cartridge housing is easy to install and maintain, save some labor cost

● SS single filter housing is supplied with or without pipe plugs in the bottom for draining

● Applicable for high temperature and special chemical which is not suitable for plastic filter housing

● SS single filter housing accept cartridge sizes in length 5", 10", 20", 30"and 40" with OD 2.5" or 4.5" cartridge

● All parts of SS cartridge filter housings is completely made by SS304 or SS316L with excellent anti-corrosion ability


Application

● RO Prefiltration

● Food and Beverage

● Medical and Chemical

● In-line Liquid Processes

● Electronic Ultrapure Water

● Household Water Filtration


Performance

Operation Data for Stainless Steel Single Cartridge Filter Housing

Max. Temperature125℃
Max. Pressure10 Bar (150psi) or according to requirement
Recommended Pressure≤ 8 Bar (115psi) at 25℃

Stainless Steel Single Cartridge Filter Housing Production Workshop Display

SCH Series Stainless Steel Single Cartridge Filter Housing

● With a sustainable and environmentally friendly material that is 100% recyclable, choosing stainless steel single cartridge filter housings helps reduce the environmental impact of industrial operations and promotes sustainability initiatives.

● Single filter cartridge housings offer cost-effective filtration solutions, with lower initial investment costs compared to multi-cartridge housings or complex filtration systems. They also have lower operating and maintenance costs due to their simplicity and ease of maintenance.

● SS single cartridge filters provide excellent mechanical strength and structural integrity, allowing the filter housing to withstand high pressures and temperature fluctuations without deformation or failure. This ensures reliable performance and safety in demanding operating conditions.

● Stainless steel single cartridge filter housings are easy to clean and maintain, requiring minimal effort and resources for routine upkeep. The smooth surface of stainless steel facilitates thorough cleaning and sterilization, ensuring optimal hygiene and prolonging the lifespan of the filter housing.

● Stainless steel single filters can withstand a wide range of temperatures, from extreme cold to high heat, without compromising its mechanical properties or structural integrity. This makes stainless steel single cartridge filter housings suitable for use in applications where temperature control is essential.


Tech Support

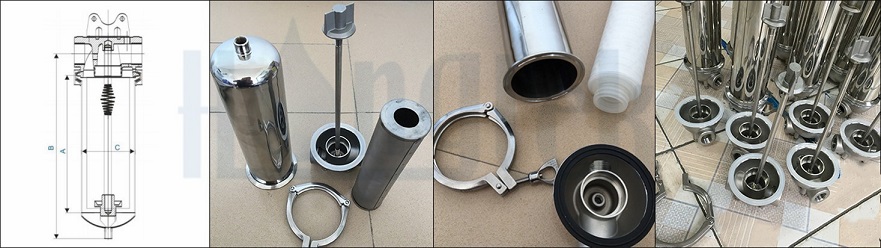

Deatil of Stainless Steel Single Cartridge Filter Housing

SCH Series Stainless Steel Single Cartridge Filter Housing

● Thread or clamped o-ring closure seal could be chosen to provide quick and positive seal

● Single center bolt for quick cartridge change and in-line pipe connection for easy installation

● Rigid cartridge support post with threaded end seal for positive 222/226/DOE cartridge seating

● SS304 and SS316 material construction allows for use in applications where stainless steel is preferred, including food and beverage

● Standard O-ring closure seal is EPDM, with optional materials available for improved chemical compatibility and higher temperature rating


Order Information
SCHCartridge LengthCartridge Size(OD)MaterialConnectionInlet/OutletSealing TypeSeal MaterialBottom

SCH Seires Stainless Steel

Single Cartridge Filter Housing

05 = 5"N = 2.5" StandardS4 = SS304B = BSPF04 = 1/2"T = ThreadS = SiliconF = Flat Bottom
10 = 10"
20 = 20"06 = 3/4"E = EPDM
30 = 30"M = 4.5" Big BlueS6 = SS316LP = NPTFC = ClampP = Drain with Plug
40 = 40"08 = 1"V = Viton

For Example:

SCH-10-N-S4-B-06-C-S-P

SCH Seires Stainless Steel Single Cartridge Filter Housing - 10" - OD 2.5" - SS304 - BSPF-3/4" - Clamp - Silicon - Drain with Plug
