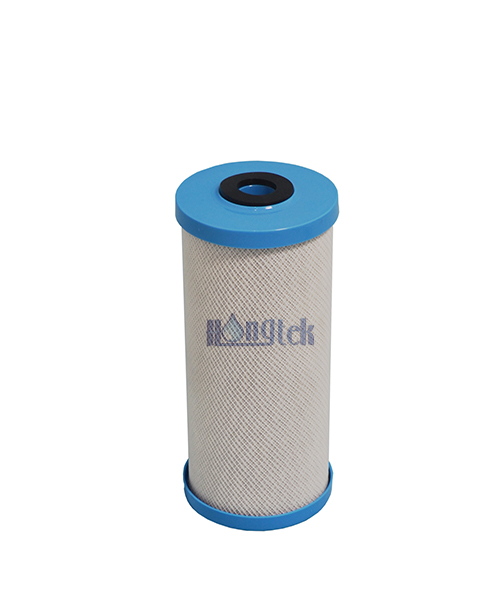

SCF Series Sintered Big Blue Carbon Block Filter Cartridges
SCF Series Sintered Big Blue Carbon Block Filter Cartridges SCF Series Sintered Big Blue Carbon Block Filter Cartridges SCF Series Sintered Big Blue Carbon Block Filter Cartridges
SCF Series Sintered Big Blue Carbon Block Filter Cartridges SCF Series Sintered Big Blue Carbon Block Filter Cartridges SCF Series Sintered Big Blue Carbon Block Filter Cartridges

SCF Series Sintered Big Blue Carbon Block Filter Cartridges

Description

SCF Series Sintered Big Blue Carbon Block Filter Cartridges are made of high-quality coconut shell activated carbon materials with high-end sintering technology. Sintered big blue carbon filters have strong adsorption and good rigid construction, which effectively removes fine sediment, bad taste and odor, chlorine, chloramines, organic chemicals, heavy metal, Vocs and THMS. Sintered  big blue activated carbon filters have very large filtration area and stronger adsorption. Owing to high filtration efficiency and long service life, sintered big blue carbon cartridges are the ideal choice of the household and commercial water filtration processing.

Specification
Filter MediaHigh iodine values coconut shell activated carbon
Length5"(127mm), 9.8"(250mm), 10"(254mm), 20"(508mm) According to customers requirements
Inside Diameter28mm Special ID can be customized
Outside Diameter4.5"(115mm) Special OD is accepted
Filtration Rating5μm
End CapPolypropylene
Outer WrapPolypropylene Non-woven fabric
Gasket/O-ringSilicone
NettingPolyethylene


Feature

● Effectively remove fine sediment, bad taste and odor, chlorine, chloramines,Vocs and THMS etc.

● Sintered big blue carbon filters possess very large filtration area and super strong adsorption

● Sintered big blue carbon cartridges have high flow rate, high filtration efficiency and long service life

● Big blue carbon water filters are made of 100% FDA approved high-quality coconut shell activated carbon materials

● Sintered big blue carbon filters have good rigid structure without release of carbon fines, meet drinking water standards


Application

● Water Purifier

● Drinking Water

● Pre Ultra-filtration

● Pre RO Water Filtration

● Industry Water Treatment

● Food & Beverage Industry


Performance

Operation Data for Sintered Carbon Block Cartridge Filters

Maximum Operating Temperature80℃(176℉)
Max. Differential Pressure7.0 bar at 25℃ (100 psi at 77℉)
Liquid Flow DirectionOutside to Inside
Recommended Change Out Differential Pressure2.1 bar (31 psi)


Flow Rate of Sintered Big Blue Carbon Block Filter Cartridges

OD x Length
(Nominal)
Chlorine Taste & Odor
Reduction Capacity @ Flow *
Initial △P @ Flow *Nominal Rating
10" x 4.5">10,000 gallons @ 2gpm4 psid @ 3 gpm5 μm
20" x 4.5">20,000 gallons @ 4gpm4.5 psid @ 4 gpm5 μm
Estimated Capacity based on 2 ppm influent concentration with > 95% reduction


Tech Support

Construction of Sintered Big Blue Carbon Block Filter Cartridges


● Inner layer has no contaminant and carbon granule leak out

● Outer layer is polypropylene non-woven fabric to filter the impurities & sludge

● Sintered big blue carbon water filters are made of high iodine values coconut shell

● A variety of filtration rating to keep high filtration efficiency of remove residual chlorine

● The length size of OD and ID can be manufactured according to customer's requirement

● End cap is made of FDA approved polypropylene material, it is reliably sealing & durable

● O-ring can be made of Silicone, Buna-N, EPDM, high temperature resistant & good sealing


Available ID & OD Sizes Of Bare Sintered Carbon Block



Order Information
SCFLengthIDODMicron Rating

SCF Series Sintered

Big Blue Carbon Block Filter Cartridges

5 = 5"(127mm)I = 28mmO = 4.5"(115mm)5 = 5μm
9.8 = 9.8"(250mm)
10 = 10"(254mm)
20 = 20"(508mm)

For Example:

SCF-10-I-O-5

SCF Series Sintered Big Blue Carbon Block Filter Cartridges - 10" - 28mm - 115mm - 5μm

Special Sintered Big Blue Carbon Block Cartridges can be customized, such as special ID, OD, length etc.
