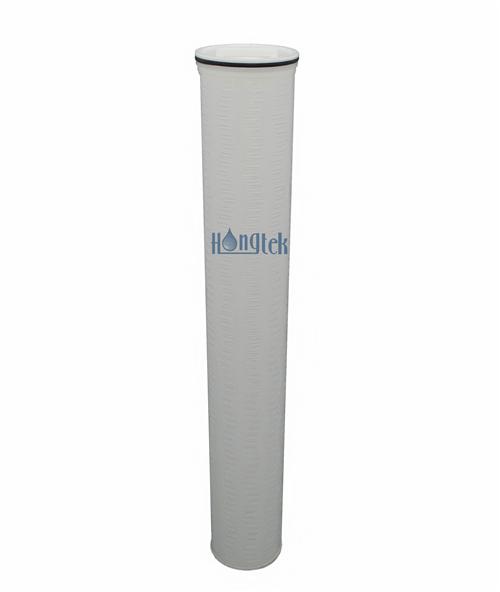

FON Series Pleated High Flow Filter CartridgesFON Series Pleated High Flow Filter CartridgesFON Series Pleated High Flow Filter Cartridges

FON Series Pleated High Flow Filter Cartridges

Description

FON Series Pleated High Flow Filter Cartridges are washable pp pleated cartridges, an economical and reliable pleated cartridge filter for high flow applications with high efficiency. Pleated high flow cartridges are designed for applications with high contaminant removal requirements. Pleated high flow cartridges with an outside to inside flow pattern, large surface filtration area and high dirt holding capacity to save the quantities of filter cartridges, lower waste disposal and maintenance costs. High performance filter media of pleated high flow cartridges comply with FDA and wide range of chemical compatibility.

Specification
Filter MediaPolypropylene, Polyester
Length23"(585mm), 40"(1016mm)
End Cap OD145mm
Filtration Rating1μm, 5μm, 10μm, 20μm, 50μm, 80μm, 100μm, 250μm
Support/DrainagePolypropylene (PP)
End Cap MaterialGlass fiber reinforced Polypropylene (PP)
OutsideNetting
Seal MaterialEPDM, Buna-N, Silicone, Viton


Feature

● Large surface filtration area and high dirt holding capacity

● 100% integrity testing and wide range of chemical compatibility

● High filtration efficiency, lower waste disposal costs and more economical

● High performance filter media of pleated high flow cartridges comply with FDA


Application

● Petrolchemicals

● Pre RO filtration

● Food & Beverage

● Water Processing

● General Industrial

● Power Generation

● Process Chemicals


Performance

Operation Data for Pleated High Flow Filter Cartridges

Maximum Operating Temperature50°C @ 2.0bar
25°C @ 3.4 bar
Max Working Temperature80°C
Max Working Pressure6 bar
Max Differential Pressure Suggested1 bar
Suggested Maximum Flow Of Water23inch length: 16 m³
40inch length: 28 m³
Liquid Flow DirectionOutside to Inside
Typical Surface Area1.14 m² per 23" pleated cartridge
2.28 m² per 40" pleated cartridge


Pressure-Drop Rate for 23" Pleated High Flow Filter Cartridges


Tech Support

Drawing for FON Series Pleated High Flow Cartridges



Installation for High Flow Filter Cartridges



Order Information
FONMaterialLengthFiltration RatingOpen End TypeO-ring Material

FON Series Pleated

High Flow Filter Cartridges

PP = Polypropylene23 = 23"(585mm)1 = 1μmD = Double O-ringsE = EPDM
5 = 5μm
10 = 10μmB = Buna-N
20 = 20μm
PE = Polyester 40 = 40"(1016mm)50 = 50μmS = Silicone
 80 = 80μm
 100 = 100μm V = Viton
 250 = 250μm

For Example:

FON-PP-40-80-D-S

FON Series Pleated High Flow Filter Cartridge - Polypropylene - 40"- 80μm - Double O-rings - Silicone

Special specifications pleated high flow cartridges can be customized, such as special end caps, length or outer cage etc.
