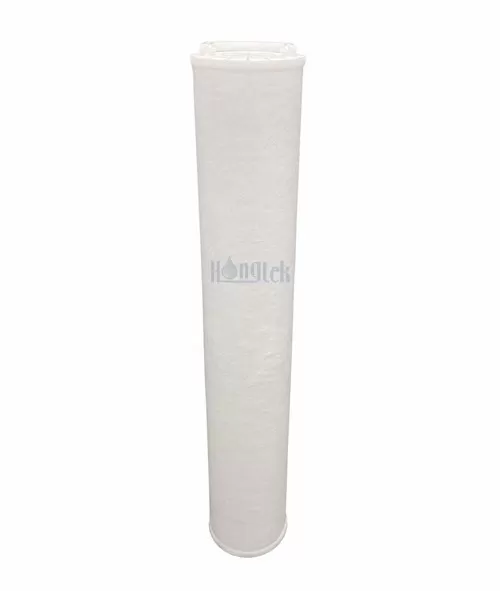

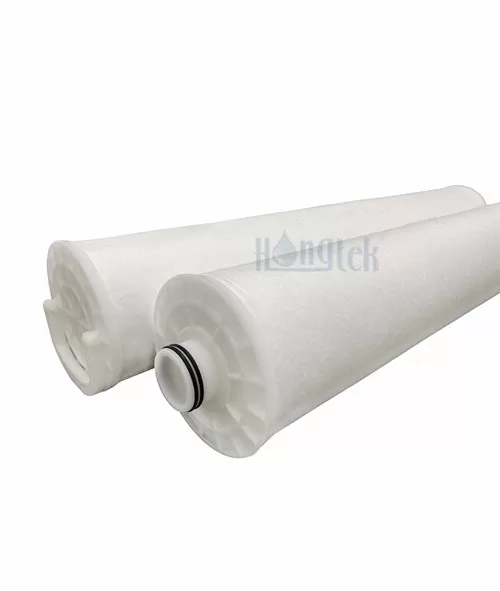

GEM Series High Flow Melt Blown Cartridge Filters

Description

Hongtek GEM Series High Flow Melt Blown Cartridge Filters are depth-type filtration solution engineered for high-capacity and high-efficiency applications. Manufactured using advanced melt-blown polypropylene technology, this high flow melt blown filters feature multi-layered gradient structure that provide exceptional dirt-holding capacity and long service life. High flow melt cartridge filters have high structural integrity combined with greater void volume giving a lower pressure drop, greatly improved efficiency compared to standard depth nominal filters. The high flow cartridges are designed to handle high flow rates while maintaining low pressure drop, making the cartridges ideal for use in demanding industrial processes, including water treatment, chemical processing, food and beverage production, and pharmaceuticals.

Specification
Filter MediaPolypropylene(PP)

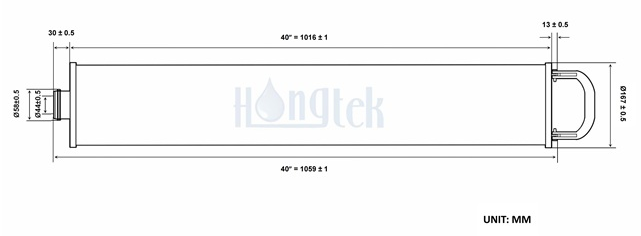

Length40"
Outside Diameter6.5"
ID44mm
Filtration Rating1μm, 5μm, 10μm, 20μm, 50μm, 70μm, 100μm
Support/DrainagePolypropylene (PP)
End Cap MaterialPolypropylene (PP)
Inner CorePolypropylene (PP)

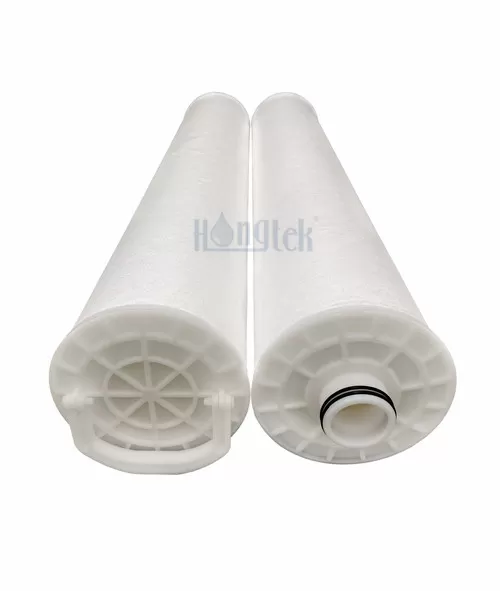

End CapFlexible Handle+226
O-ring Seal MaterialEPDM, Silicone, NBR, Viton
Feature

● Free of adhesives, binders, and surfactants

● High flow rate capacity with low pressure drop

● Gradient density structure for extended service life

● Available in a wide range of lengths and micron ratings

● 100% pure polypropylene construction for chemical compatibility

● The flexible handle of melt blown cartridges save space for the filter housings


Application

● Desalination of seawater

● Pharmaceutical production

● Food and beverage industry

● Chemical and petrochemical filtration

● Pre-filtration for reverse osmosis systems

● Cooling water and process water filtration


Performance

Operation Data of High Flow Melt Blown Cartridge Filters

Maximum Operating Temperature80°C
Liquid Flow DirectionOutside to inside
Max Working Pressure6 bar
Max Differential Pressure Suggested2 bar
Recommended Change-out Differential Pressure1.5 bar
Suggested Maximum Flow Of Water40inch length: 30 m³/h
Typical Surface Area0.47 m² per 40" melt blown cartridge


Order Information
GEMMaterialLengthFiltration RatingO-ring Material

GEM Series High Flow

Melt Blown Catridge Filters

P = PP Melt Blown40 = 40"1 = 1μmE = EPDM
5 = 5μm
10 = 10μmS = Silicone
20 = 20μm
50 = 50μmN = NBR
70 = 70μm
100 = 100μmV = Viton

For Example:

GEM-P-40-5-E

GEM Series High Flow Melt Blown Filters - Material: PP Melt Blown - Length = 40" - Filtration Rating = 5μm - O-ring Material = EPDM
