GEP Series Pleated High Flow Filter Cartridges are high-efficiency filtration solution engineered to deliver superior performance in high-volume applications. Constructed with pleated polypropylene media, the high flow filter cartridges offer a large surface area for extended service life, high dirt-holding capacity, and consistent filtration efficiency. High flow cartridges can be used for a variety of important industrial applications for different high flow rate request. Pleated high flow filters are designed for high flow rates with minimal pressure drop, making it ideal for industrial and commercial filtration systems where reliability and performance are critical.
| Filter Media | Polypropylene(PP) |
| Length | 20", 40", 60" |
| Outside Diameter | 6.5" |
| Filtration Rating | 1μm, 5μm, 10μm, 20μm, 50μm, 70μm, 100μm |
| Support/Drainage | Polypropylene (PP) |
| End Cap Material | Polypropylene (PP) |
| Inner Core | Polypropylene (PP) |
| Outside | PP Cage or Netting |
| End Cap | Flexible Handle+226 |
| O-ring Seal Material | EPDM, Buna-N, Viton |
● Absolute-rated filtration from 1 to 100 microns
● Low pressure drop and high dirt-holding capacity
● Thermally bonded construction with no adhesives or binders
● High surface area pleated design for maximum flow and longevity
● Available in various lengths and end configurations to suit different housings

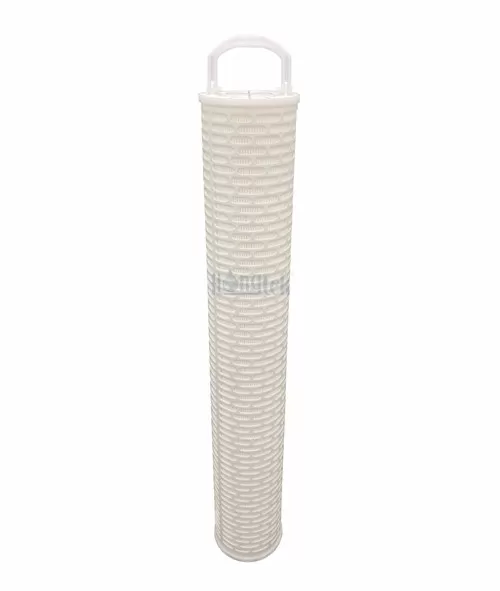

● The flexible handle of high flow cartridges save space for the filter housings
● 100% polypropylene media and components for broad chemical compatibility
● Food and beverage filtration
● Pharmaceutical and biotech industries
● Power generation and boiler feedwater systems
● Water treatment and reverse osmosis pre-filtration
● Chemical processing and electronics manufacturing
Operation Data of GEP Series Pleated High Flow Filter Cartridges
| Maximum Operating Temperature | 70°C(160°F) |
| Suggested Maximum Flow Of Water | 20inch length: 35m³/h(150gpm) |
| 40inch length: 70m³/h(310gpm) | |
| 60inch length: 100m³/h(440gpm) | |
| Liquid Flow Direction | Outside to inside flow path |
| Typical Surface Area | 3㎡ per 20" filter cartridge |
| 6㎡ per 40" filter cartridge | |
| 9㎡ per 60" filter cartridge | |
| Maximum Pressure | 4.2 bar |
| Maximum Forward Differential Pressure | 3.5 bar at 20 ℃ (50psid at 68°F) |
| 1.5 bar at 70 ℃ (20psid at 160°F) | |
| Recommend Change Out Differential Pressure | 2.5 bar at 20 ℃ (35psid at 68°F) |
| GEP | Material | Length | Filtration Rating | O-ring Material |
GEP Series Pleated High Flow Filter Cartridges | P = PP Pleated | 20 = 20" | 1 = 1μm | E = EPDM |
| 5 = 5μm | ||||
| 40 = 40" | 10 = 10μm | B = Buna-N | ||
| 20 = 20μm | ||||
| 60 = 60" | 50 = 50μm | V = Viton | ||
| 70 = 70μm | ||||
| 100 = 100μm |
For Example:
GEP-P-40-5-E
GEP Series Pleated High Flow Filter Cartridges - Material: PP Pleated - Length = 40" - Filtration Rating = 5μm - O-ring Material = EPDM
