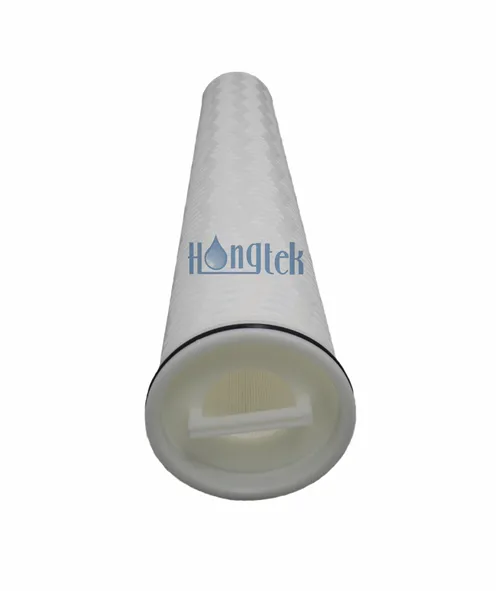

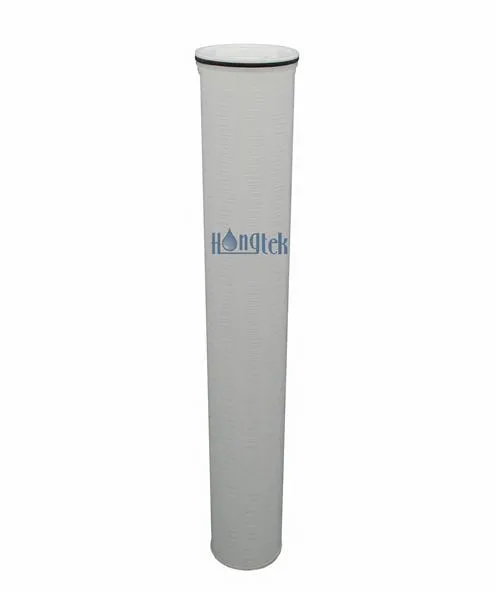

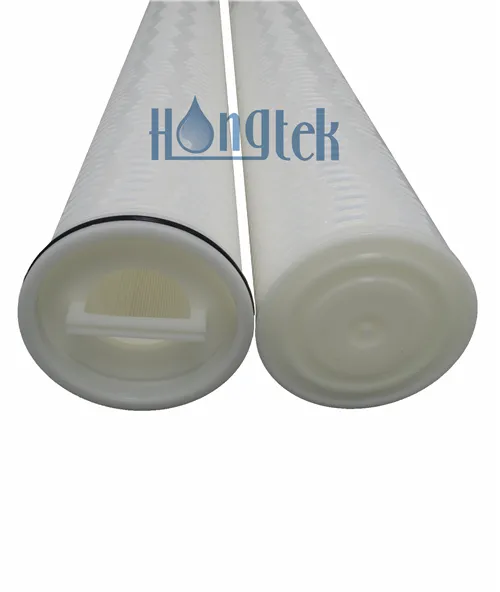

HFE Series Pleated High Flow Cartridge Filters
HFE Series Pleated High Flow Cartridge Filters HFE Series Pleated High Flow Cartridge Filters HFE Series Pleated High Flow Cartridge Filters HFE Series Pleated High Flow Cartridge Filters
HFE Series Pleated High Flow Cartridge Filters HFE Series Pleated High Flow Cartridge Filters HFE Series Pleated High Flow Cartridge Filters HFE Series Pleated High Flow Cartridge Filters

HFE Series Pleated High Flow Cartridge Filters

Description

HFE Series Pleated High Flow Cartridge Filters are designed for an economical and reliable filter system for high flow applications. Different from ordinary high flow cartridge filters, HFE Series high flow cartridge has a high strength 40 inch overall thick outer cage that can withstand higher water pressure. The inside-to-outside flow configuration and hard cage construction of the pleated high flow cartridge allows it to be tightly compacted to further minimize replace and disposal costs.

High flow cartridge filters have high performance filter media, strong dirt holding capacity, low delta pressure to flow for longer periods of time, reliable particle removal and long service life. Scientific large area pleated geometric design, complete thermal welding structure and high quality filtration effect can meet the needs for high flow filter systems.


Specification
Filter MediaPolypropylene(PP) Pleated
Length40"(1016mm), 60"(1524mm)
Outside Diameter6"(152mm)
Inside Diameter73.5mm
Filtration Rating1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm
Support/DrainagePolypropylene (PP)
End Cap MaterialGlass fiber reinforced Polypropylene (PP)
Outside 40" Overall Rigid Hard Cage
Seal MaterialEPDM, Buna-N, Viton


Feature

● Higher flow rates and more cost savings

● High filtration efficiency and wide chemical compatibility

● Advanced hot melt welding technology and 100% integrity testing

● Lower waste disposal costs, lower replacement and maintenance costs

● 40 inch overall thick outer cage that can withstand high water pressure

● high performance filter media, low resistance to flow for long service life


Application

● Microelectronics

● Food & Beverage

● Water Processing

● Power Generation

● Fuels & Chemicals

● Biopharmaceutical

● Machinery & Equipment

● Industrial Wastewater Treatment


Performance

Operation Data HFE Series Pleated High Flow Cartridge Filters

Maximum Operating Temperature180°F @ 20 psid (82°C @ 1.4 bar)
160°F @ 30 psid (71°C @ 2.1 bar)
77°F @ 50 psid (25°C @ 3.4 bar)
Suggested Maximum Flow Of Water20inch length: 660 LPM
40inch length: 1,300 LPM
60inch length: 1,900 LPM
Liquid Flow DirectionInside to outside
Typical Surface Area7㎡ per 40" filter cartridge
10.5㎡ per 60" filter cartridge
Maximum Pressure4.2 bar
Recommend Change out Differential Pressure2.5 Bar at 20 ℃


Tech Support

Design for High Flow Filter Cartridges


● Powerful technical team can help to customize the special high flow cartridge filters

● The 3D high-end design show the advantages of structure HFE Series pleated high flow cartridge

● The complete design is very important to research, development and manufacture of high flow cartridge filter

● Pay high attention to every detail, better design to create higher quality of high flow cartridge filters for water filtration system


Installation for High Flow Cartridges


● Suitable to install into high flow filter housings, inside to outside flow pattern, no bypass and large flow

● High flow cartridge filters have long working life, strong dirt holding capacity, absolute rated filters are designed

● Hard strength 40 inch overall thick outer cage can withstand higher pressure, high flow rate & low delta pressure

● Smaller and more economical filtration systems, lower maintenance and waste disposal costs, help users save much cost


Order Information
HFEMaterialLengthFiltration RatingO-ring MaterialInside (selective)

HFE Series

Pleated High Flow Cartridge Filters

P = PP Pleated40 = 40"(1016mm)1 = 1μmE = EPDMC = Central PP core
2 = 2μm
3 = 3μm
5 = 5μmB = Buna-N
10 = 10μm
60 = 60"(1524mm) 20 = 20μm
40 = 40μm V = Viton
50 = 50μm
70 = 70μm
100 = 100μm

For Example:

HFE-P-40-5-E

HFE Series Pleated High Flow Cartridge Filters - Material: PP Pleated - Length = 40" - Filtration Rating = 5μm - O-ring Material = EPDM

Special specifications high flow cartridge filters can be customized, such as, special length & end caps or Stainless Steel outside cage etc.
