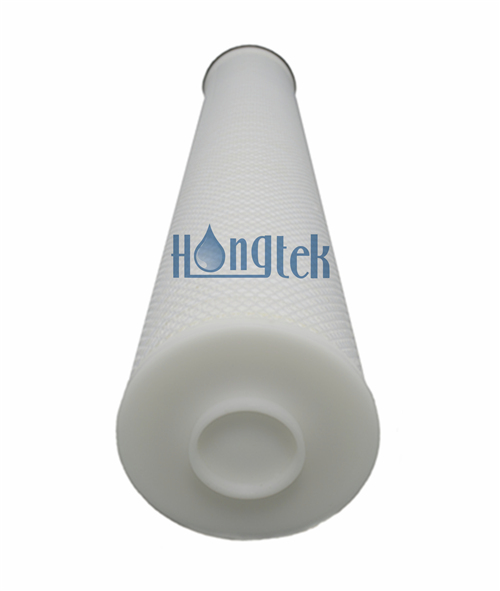

HFG Series Pleated High Flow Filter Elements
HFG Series Pleated High Flow Filter Elements HFG Series Pleated High Flow Filter Elements HFG Series Pleated High Flow Filter Elements
HFG Series Pleated High Flow Filter Elements HFG Series Pleated High Flow Filter Elements HFG Series Pleated High Flow Filter Elements

HFG Series Pleated High Flow Filter Elements

Description

HFG Series Pleated High Flow Filter Elements are designed for the applications of liquid filtration with large flow requirements, high flow capacity and high efficiency, inside to outside flow direction. The filter elements with inner core, outer wrap band and netting, have good integrity design with advanced hot melt technology. High flow filter elements fit into the standard high flow filter housings, easy to install and replace, so save a lot of labor cost. The pleated high flow filters have unique crescent-shaped pleat geometry, combined with its large 6 inch diameter, reduces the number of filters and size of housing required compared to the traditional OD 2.5" depth filter cartridges. High flow pleated filter elements help to remove particles and other contaminants from water, compatible industrial chemicals, and liquid food & beverage fluids with absolute rating.

Specification
Filter MediaPolypropylene(PP)
Length20", 40", 60"
Outside Diameter6"
Filtration Rating5μm, 10μm, 20μm, 40μm, 70μm, 100μm
Support/DrainagePolypropylene
End Cap MaterialPolypropylene
Inner CorePolypropylene
Outer NettingPolyethylene
Outer Wrap BandPolyethylene and Polypropylene
Seal MaterialEPDM, Buna-N, Viton


Feature

● High particle removal efficiency and long service life

● Advanced pleat technology results in large filtration area

● Higher flow rates compared to conventional OD 2.5" depth filters

● Advanced hot melt welding technology and 100% integrity testing

● High flow filter elements fit into the standard high flow filter housings

● High flow filters are easy to install and replace, save a lot of labor cost


Application

● Process Waters

● Food & Beverage

● Produced Waters

● Wastewater Treatment

● Pre-RO Water Filtration

● Condensing Water Filtration


Performance

Operation Data of HFG Series Pleated High Flow Filter Elements

Maximum Operating Temperature70°C(160°F)
Suggested Maximum Flow Of Water20inch length: 35m³/h(150gpm)
40inch length: 70m³/h(310gpm)
60inch length: 100m³/h(440gpm)
Liquid Flow DirectionInside to outside flow path
Typical Surface Area3㎡ per 20" filter element
6㎡ per 40" filter element
9㎡ per 60" filter element
Maximum Pressure4.2 bar
Maximum Forward Differential Pressure3.5 bar at 20 ℃ (50psid at 68°F)
1.5 bar at 70 ℃ (20psid at 160°F)
Recommend Change Out Differential Pressure2.5 bar at 20 ℃ (35psid at 68°F)


Tech Support

Design for High Flow Filter Elements


● Powerful technical team can help to customize the special high flow filter elements

● The high-end design show the advantages of structure HFG Series pleated filter elements

● Filter elements constituted by central inner hard core, middle pleats layers, outer wrap band and netting

● The complete design is very important to research, development and manufacture of high flow cartridge filter


Installation for Pleated High Flow Filter Elements


● High flow rate & low delta pressure, nominal or absolute rated filters are designed

● Inside to outside flow pattern, large flow, good sealing and no bypass, high filtration effect

● Smaller filter systems, easy to install and replace, save a lot of labor and maintenance costs

● Suitable to install into high flow filter housings, high flow filter elements have long working life


Order Information
HFGMaterialLengthFiltration RatingO-ring Material

HFG Series

Pleated High Flow Filter Elements

P = PP Pleated20 = 20"5 = 5μmE = EPDM
10 = 10μm
40 = 40" 20 = 20μmB = Buna-N
40 = 40μm
60 = 60" 70 = 70μm V = Viton
100 = 100μm

For Example:

HFG-P-60-5-E

HFG Series Pleated High Flow Filter Elements - Material: PP Pleated - Length = 60" - Filtration Rating = 5μm - O-ring Material = EPDM
