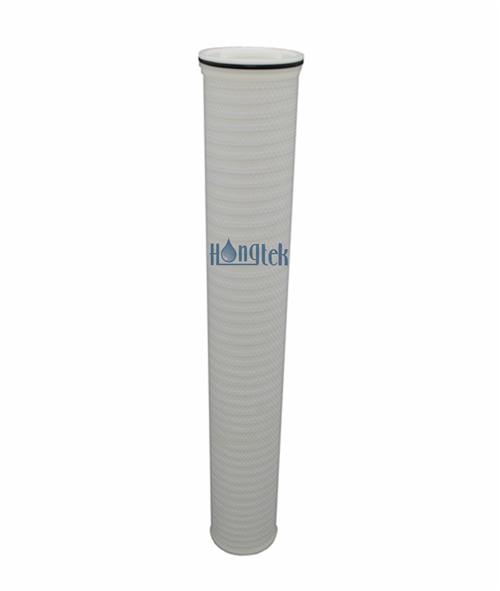

MF Series Pleated High Flow Cartridges Replace to 3M 740 series Filter Elements
MF Series Pleated High Flow Cartridges Replace to 3M 740 series Filter Elements MF Series Pleated High Flow Cartridges Replace to 3M 740 series Filter Elements MF Series Pleated High Flow Cartridges Replace to 3M 740 series Filter Elements
MF Series Pleated High Flow Cartridges Replace to 3M 740 series Filter Elements MF Series Pleated High Flow Cartridges Replace to 3M 740 series Filter Elements MF Series Pleated High Flow Cartridges Replace to 3M 740 series Filter Elements

MF Series Pleated High Flow Cartridges Replace to 3M 740 series Filter Elements

Description

MF Series Pleated High Flow Cartridges are designed to be used in different filter housings which install 1 to 37 pieces cartridge filters. Pleated high flow cartridges are made by polypropylene media, large filter area and high filtration efficiency exceed 99%. High flow cartridge filters can be used for a variety of important industrial applications for different high flow rate request.

High flow pleated cartridges are used as a direct replacement to 3M 740 series elements, reduce the number of normal 2.5" OD filter cartridges save much cost and manpower, longer service life and high dirt holding capacity.


Specification
Filter MediaPolypropylene Pleated
Length20"(508mm), 40"(1016 mm), 60"(1524mm)
Outside Diameter6 inch(152mm)
Filtration Rating1μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm
Support/DrainagePolypropylene (PP)
End Cap MaterialGlass fiber reinforced Polypropylene (PP)
Center CorePolypropylene
Outer Support CagePolypropylene
Seal MaterialEPDM, Viton



Feature

● Easy to install and replace, save manpower and times

● High flow pleated cartridges are high intensity and long service life

● Wide range of chemical compatibility and suitable for a variety of fields

● Pleated high flow cartridges are large flow rate and high dirt holding capacity

● Direct replacement to 3M 740 series elements, longer service life and high dirt holding capacity

● The sealing O-ring design no bypass to improve the filtering efficiency of high flow cartridge filters


Application

● Power plant condensed water filtration

● Chemical industry, microelectronics industry

● R.O. pre-filtration and sea water desalination

● Petroleum chemical industry related filtering

● Drinking water, edible oil, beverage, beer, milk filtration

● Pharmaceutical ingredients, solvents, and water filtration


Performance

Operation Date for MF Series Pleated High Flow Cartridges

Maximum Operating Temperature80℃
Maximum Differential Pressure3.4Bar @ 82℃
Replacement recommend pressure drop2.4Bar @ 20℃
Suggested Maximum Flow Rate 40"(1016 mm) - 1300 LPM


Flow Rate for 40" MF Series Pleated High Flow Cartridges


Tech Support

CAD Drawing for 40" MF Series Pleated High Flow Cartridges


● Inside core and outside cage ensure good performace under high pressure

● Long service life and easy to replace to3M 740 series high flow filter elements

● Pleated high flow cartridges are suitable to install for normal high flow filter housing

● Pleated cartridge save much cost and manpower, longer service life and high dirt holding capacity

● Good sealing O-ring design no bypass, high flow rate, low delta pressure & high filtration efficiency


Order Information
MFMaterialLengthFiltration RatingEnd CapsO-ring Material

MF Series

Pleated High Flow Cartridges

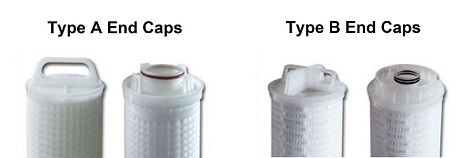

P = PP Pleated20 = 20"(508mm)1 = 1μmA = Type A End Caps E = EPDM
3 = 3μm
5 = 5μm
40 = 40"(1016mm)10 = 10μmV = Viton
20 = 20μmB = Type B End Caps
40 = 40μm
60 = 60"(1524mm)70 = 70μm
100 = 100μm

For Example:

MF-P-40-1-A-E

MF Series Pleated High Flow Cartridges - PP Pleated - 40" (1016mm) - 1μm - Type A End Caps - EPDM
