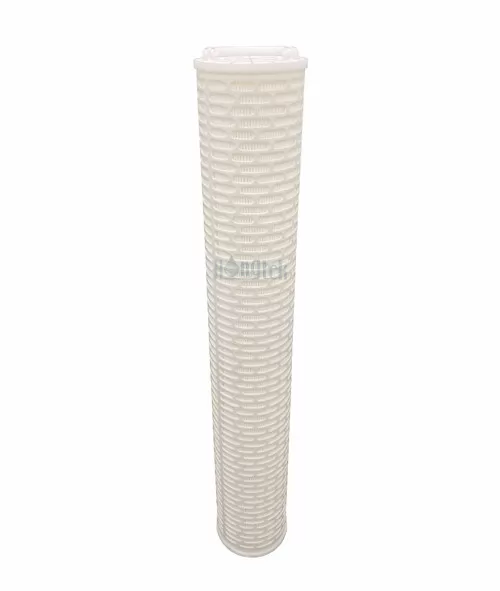

PF Series Pleated High Flow Filters

Description

PF Series Pleated High Flow Filters are made of advanced polypropylene microfiber and Parker high flow filter cartridges replacement, are good choice for large flow water filtration system. Firstly, The water treatment volume for per pleated high flow filter cartridge equals to 10pcs of standard 40 inch length and 2.5" outer diameter water filter cartridges.

Additionaly, the inner single O-ring and double O-rings end caps insure no bypass and the handle design makes it more easier to install and change out. With high dirt holding capacity, long service life and wide chemical compatibility, high flow pleated filters could be used in many crucial fluid RO prefiltration industries.

Specification
Filter MediaPolypropylene Pleated
Length20"(508mm), 40"(1016 mm), 60"(1524mm)
Outside Diameter6 inch(152mm)
Filtration Rating1μm, 3μm, 5μm, 6μm,10μm, 20μm, 40μm, 70μm, 100μm
Support/DrainagePolypropylene (PP)
End Cap MaterialGlass fiber reinforced Polypropylene (PP)
Seal MaterialEPDM, Viton
OutsideNetting


Feature

● Good performance with consistent good filtration efficiency and long service life

● PF Series high flow filter cartridges are wide chemical compatibility for different applications

● High flow pleated filters are high dirt holding capacity, high flow rates and low pressure drops

● Pleated high flow filters are easier install and replace, help end users save much cost and time

● Per high flow filter equals to 10pcs 40 inch length and 2.5" outer diameter standard filters, save costs and workplace


Application

● Petrochemical, refineries

● Food and beverage filtration

● Power plant water treatment

● Paints, inks, magnetic media

● Sea water desalination and RO pre-filtration

● API, solvents, and water filtration in biopharm market


Performance

Operation Data for PF Series Pleated High Flow Filters

Maximum Operating Temperature82℃
Maximum Differential Pressure3.4Bar @ 82℃
Suggested Maximum Flow Rate20"(508mm) - 30m³/h
40"(1016mm) - 50m³/h
60"(1524mm) - 70m³/h


Flow Rate for Length: 40" PF Series Pleated High Flow Filters


Tech Support

Installation Example for PF Series Pleated High Flow Filters


● Pleated high flow filters have stable structure and reliably sealing

● High flow pleated filters are installed in standard high flow filter housings

● Long service life and easy to replace help end users save much cost and time

● Geometry pleated structure, large filtration area and high dirt holding capacity

● High flow rate & low delta pressure, filters are designed for high filtration efficiency


Order Information
PFMaterialLengthFiltration RatingOpen End TypeO-ring Material

PF Series

Pleated High Flow Filters

P = Polypropylene20 = 20"(508mm)1 = 1μmS = Single O-ringE = EPDM
3 = 3μm
5 = 5μm
40 = 40"(1016mm)6 = 6μm
10 = 10μmD = Double O-ringsV  = Viton
20 = 20μm
60 = 60"(1524mm)40 = 40μm
70 = 70μm
100 = 100μm

For Example:

PF-P-40-5-D-E

PF Series Pleated High Flow Filters - Polypropylene - 40" (1016mm) - 5μm - Double O-rings - EPDM
