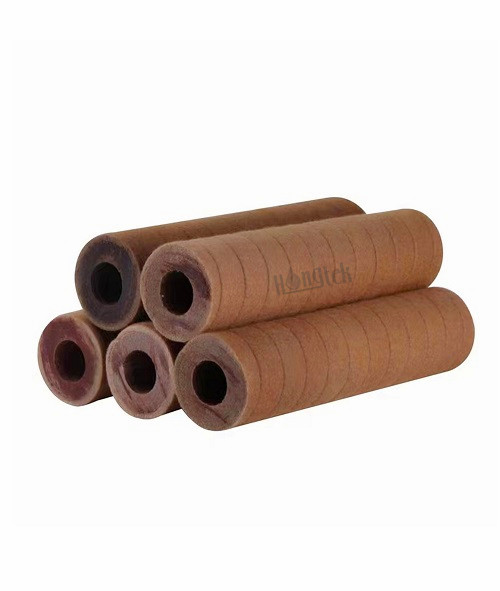

SRB Series Spiral Resin Bonded Cartridge Filters have unique double layered structure. Resin bonded cartridges are made by mixing acrylic fibers and resins and sintered at high temperatures. The outer spiral layer of resin bonded filters are relatively loose, which are conducive to hold larger particles and the hard structure of the inner layers are high precision, so as to filter smaller impurities and achieve a filtration efficiency of 99.9% with long service life. Resin bonded cartridge filters are large flow rate, low resistance, strong ability to high precision filtration rating, high mechanical strength, good support, no fiber shedding and strong corrosion resistance. Due to the superior performance and good chemical compatibility, resin bonded cartridges are widely used in high-temperature and high viscosity liquid filtration in the petrochemical, chemical coatings, ink & coating industries, organic solvents and other industries.
| Filter Media | Acrylic Fiber/Phenolic Resin |
| Length | 5"(127mm), 9.8"(248mm), 10"(254mm), 20"(508mm), 30"(762mm), 40"(1016mm) |
| Inside Diameter | 28mm, 30mm |
| Outside Diameter | 2.55"(65mm) |
| Filtration Rating | 1μm, 5μm, 10μm, 25μm, 50μm, 75μm, 100μm, 125μm, 150μm, 200μm |
| End Cap | Double Open End (DOE) |
● Resin bonded filters normally are DOE adapter, SOE adpter is accepted
● Resin bonded cartridge filters are ultra strong compressive strength and wide chemical compatibility
● The outer wrap of cartridge filters increase surface area, no fiber shedding and strong corrosion resistance
● Resin bonded cartridges very suitable for being used in high-temperature and high viscosity liquid filtration
● Resin bonded cartridge filters are large flow rate, low resistance and strong ability to high precision filtration rating
● The outer layer spiral wrap of resin bonded cartridges collect large particles, while inner layers control small particles
| Printing Inks | Chemical Coatings | Organic Solvents |
| Chemical Industry | Plasticizers Industry | Oil & Gas Fluids |
| Adhesives & Resins | Lacquers & Varnishes | Petroleum Products |
Operation Data for Resin Bonded Cartridge Filters
| Maximum Operating Temperature | 125 ℃ |
| Max. Working Pressure | 25 bar |
| Max. Differential Pressure | 4.8 bar |
| Applicable Acidity & Alkalinity | PH 4 - 9 |
| Liquid Flow Direction | Outside to inside |
| Recommend Change out Differential Pressure | 2.5 Bar |
| Recommend Flow Rate (10" for water) | 5μm: 22 L/min |
| 10μm: 30 L/min | |
| 50μm: 40 L/min |
Pressure-Drop Rate of 10" Resin Bonded Filter Cartridge
| SRB | Length | Micron Rating | ID | OD | End Cap |
SRB Series Spiral Resin Bonded Cartridge Filters | 5 = 5"(127mm) | 1 = 1μm | A = 28mm | C = 65mm | D = DOE(Double Open End) |
| 5 = 5μm | |||||
| 9.8 = 9.8"(248mm) | 10 = 10μm | ||||
| 25 = 25μm | |||||
| 10 = 10"(254mm) | 50 = 50μm | ||||
| 75 = 75μm | B = 30mm | ||||
| 20 = 20"(508mm) | 100 = 100μm | ||||
| 100 = 100μm | |||||
| 30 = 30"(762mm) | 150 = 150μm | ||||
| 40 = 40"(1016mm) | 200 = 200μm |
For Example:
SRB-20-5-A-C-D
SRB Series Spiral Resin Bonded Cartridge Filters - 20" - 5μm -28mm - 65mm - DOE
Special specifications Resin Bonded Cartridge Filters can be customized, such as special ID, OD, length and end caps etc.
