GFM Series Glass Fiber Membrane Pleated Cartridge Filters
GFM Series Glass Fiber Membrane Pleated Cartridge Filters GFM Series Glass Fiber Membrane Pleated Cartridge Filters GFM Series Glass Fiber Membrane Pleated Cartridge Filters
GFM Series Glass Fiber Membrane Pleated Cartridge Filters GFM Series Glass Fiber Membrane Pleated Cartridge Filters GFM Series Glass Fiber Membrane Pleated Cartridge Filters

GFM Series Glass Fiber Membrane Pleated Cartridge Filters

Description

GFM Series Glass Fiber Membrane Pleated Cartridge Filters are constructed with borosilicate glass fiber membranes and excellent PP support materials. Glass fiber pleated cartridges provide high and consistent filtration efficiency with a filtration rating range from 0.45 to 50 micron.

At the outset, glass fiber pleated cartridge filters have large surface filtering area,long service life, low initial pressure and wide chemical compatibility. In addition, glass fiber pleated filters are manufactured in advanced dust-free workshop, so they could be widely used in high-purity liquid filtration processing.

Specification
Filter MediaGlass Fiber Membrane
Length5", 9.75", 9.8", 10", 20", 30", 40"
Outside Diameter2.75"(70mm)
Filtration Rating0.45μm, 1μm, 3μm, 5μm, 10μm, 50μm
CorePolypropylene
Filter SupportPolypropylene
Gasket/O-ringSilicone, EPDM, Viton, NBR, Teflon encapsulated Viton
End Cap/CagePolypropylene
End Cap TypeDOE, 222/Flat, 222/Fin(Code 3), 226/Flat, 226/Fin(Code 7), 215/Flat, 215/Fin


Feature

● All materials of glass fiber cartridge filters comply with FDA requirements

● Glass fiber pleated cartridges have high efficiency retention ratings from 0.45 to 50 microns

●Glass fiber membrane filters are 100% integrity tested, high pressure & temperature resistant

● Rigid, molded PP cage protects pleated media and strengthens structural stability in whole life span

● Glass fiber pleated filters have surface area designed for maximum throughput and high dirt holding capacity

● Glass fiber pleated cartridges offer wide range of chemical compatibility, long service life and relatively low operation costs


Application
SolventsCosmeticsOil industry
SemiconductorFood & BeverageWater treatment
DI water systemsChemicals industryMedicinal Filtration


Performance

Operation Data for Glass Fiber Membrane Pleated Cartridge Filters

Maximum Operating Temperature80℃(170℉)
Max. Differential Pressure5.5 bar at 21℃(80 psi at 70℉)
2.75 bar at 60℃(40 psi at 150℉)
Recommended Change Out Differential Pressure2.4 bar (35 psid)
Sterilization Temperature Time121˚C (250˚F) for 30 minutes at 1.0 bar (14 psi), multiple cycles

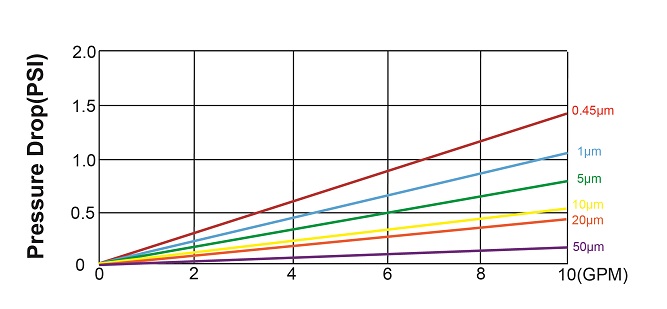

Pressure Drop Rate for 10" Glass Fiber Membrane Pleated Cartridge Filters


Tech Support

End Caps of Glass Fiber Membrane Pleated Cartridge Filters



Order Information
GFMLengthMicron RatingEnd CapGasket/O-ring

GFM Series

Glass Fiber Membrane Pleated Cartridge Filters

5 = 5"0.45 = 0.45μmA = Double Open End (DOE)S = Silicone
9.75 = 9.75"1 = 1μmB = 222/Flat(SOE)E = EPDM
9.8 = 9.8"3 = 3μmC = 222/Fin(SOE)N = NBR
10 = 10"5 = 5μmD = 226//Flat(SOE)V = Viton
20 = 20"10 = 10μmF = 226/Fin(SOE)
30 = 30"20 = 20μmG = 215/Flat(SOE)T = Teflon Encapsulated Viton
40 =40"50 = 50μmH = 215/Fin(SOE)

For Example:

GFM-10-5-A-E

GFM Series Glass Fiber Membrane Pleated Cartridge Filters - 10" - 5μm - DOE - EPDM

Customized Sizes of Glass Fiber Membrane Pleated Cartridge Filters can be accepted
