Filtration System: Parallel vs Series Connection

Aug. 17, 2026

In industrial water treatment, poor filtration performance rarely comes from the filter media itself - it's almost always a piping configuration problem. Choosing between parallel and series connections is a foundational design decision. Here's a clear, no-fluff breakdown to help you decide which is right for your project.

The Core Trade-Offs at a Glance

Factor	Series Connection	Parallel Connection
Primary Goal	Staged filtration (improves quality)	Flow capacity (increases throughput)
Pressure Drop	Adds up across stages (higher energy cost)	Low (equal to a single filter)
System Flow	Limited by the slowest filter	Sum of all filters (high flow)
Maintenance	Requires full system shutdown	Allows individual filter isolation (24/7 operation)
Upfront Cost	Lower (simpler piping)	Higher (complex headers and valves)
Best Application	Low-flow, high-purity processes	High-flow, continuous industrial processes
Quick Tip: Most large-scale, reliable systems use a hybrid design - series stages for quality, and parallel banks for capacity and uptime.

3-Step Decision Framework

Step 1: Prioritize Your Goal

● Choose Series if: Your main objective is removing progressively finer particles (e.g., RO pre-treatment, ultrapure water).

● Choose Parallel if: Your main objective is handling a high flow rate with minimal pressure loss and maximum uptime.

Step 2: Factor in Your Housing Material

Different materials handle pressure and temperature differently. This is a critical safety constraint.

Material	Series	Parallel	Key Limitation

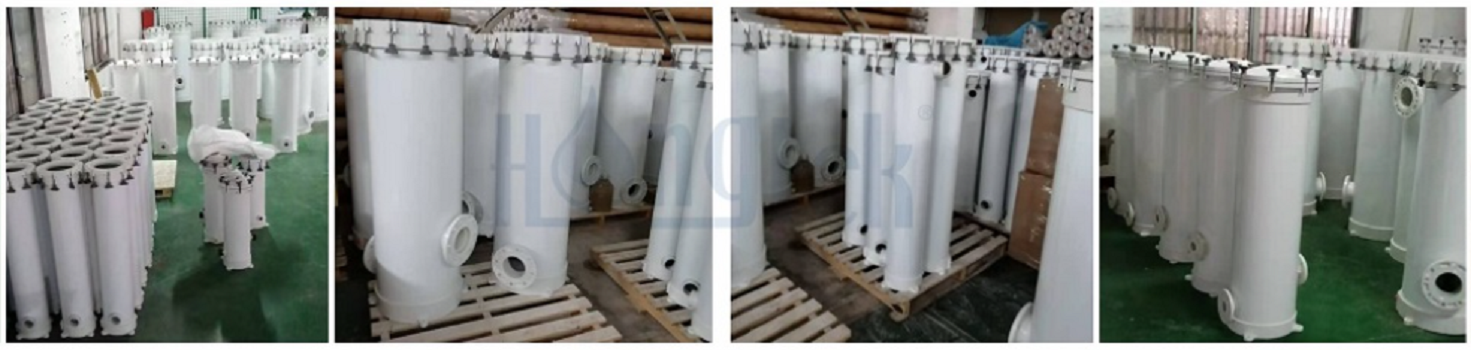

FRP Filter Housing	Yes (low-flow only)	Yes	Poor pressure tolerance; avoid high-pressure series setups.

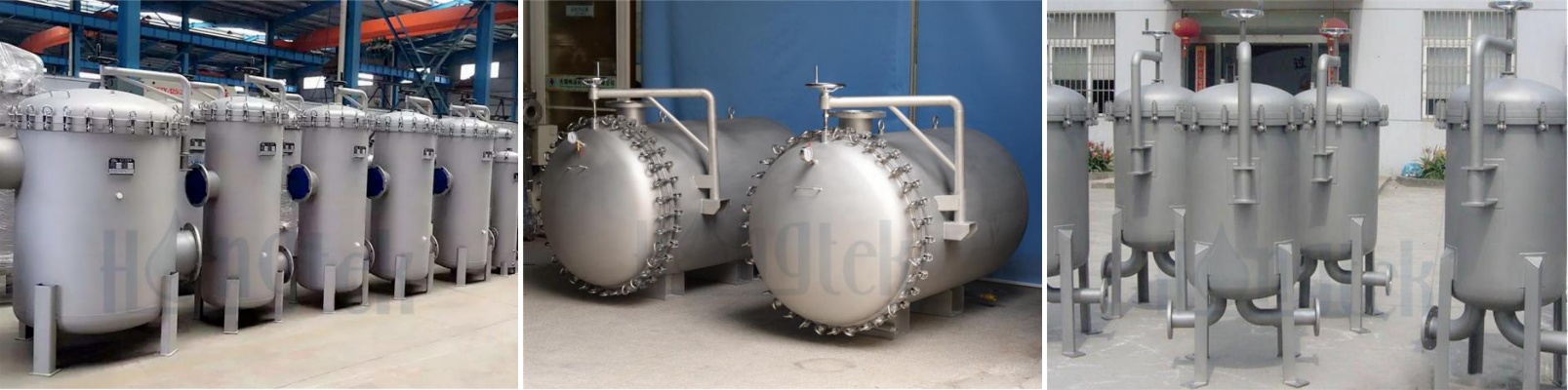

Stainless Steel Filter Housing	Yes	Yes	Best for high-pressure, high-temp, or chloride-heavy water.

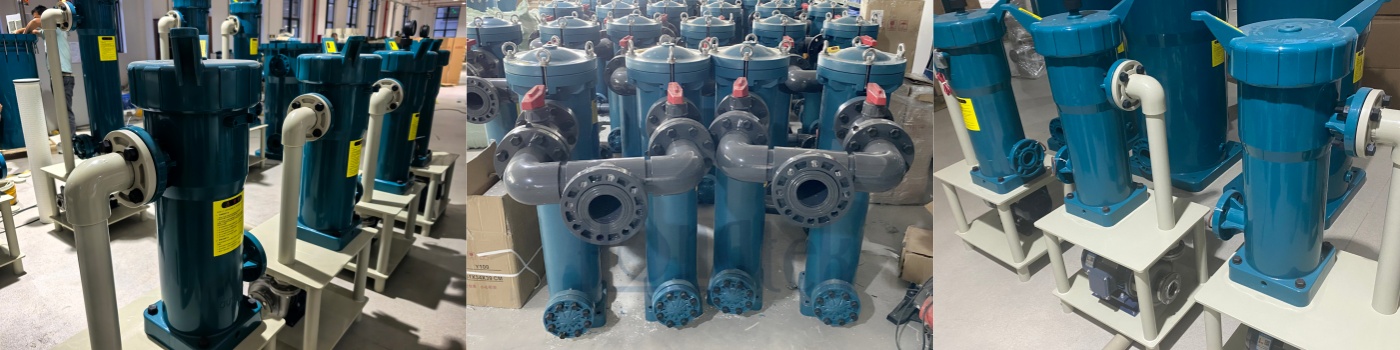

PPH Plastic Filter Housing	Yes	Yes	Excellent for chemicals, but low pressure/temperature limits make series configurations risky.

Step 3: Consider Maintenance Reality

● Series forces shutdowns for filter changes - unsuitable for non-stop production.

● Parallel offers operational flexibility and simpler, more uniform consumable replacement cycles.

When to Break the Rules

Some applications benefit from a combined approach:

● Parallel banks of filters, with each bank containing two stages in series (e.g., a 5µm bag filter followed by a 1µm cartridge filter). This gives you both capacity and quality.

● Pro Tip: Always run a differential pressure calculation before finalizing your design. This prevents unexpected pump overload and energy waste.

Summary

● Need quality with low flow? - Go Series.

● Need capacity and uptime? - Go Parallel.

● Need both? - Design a Hybrid solution.
