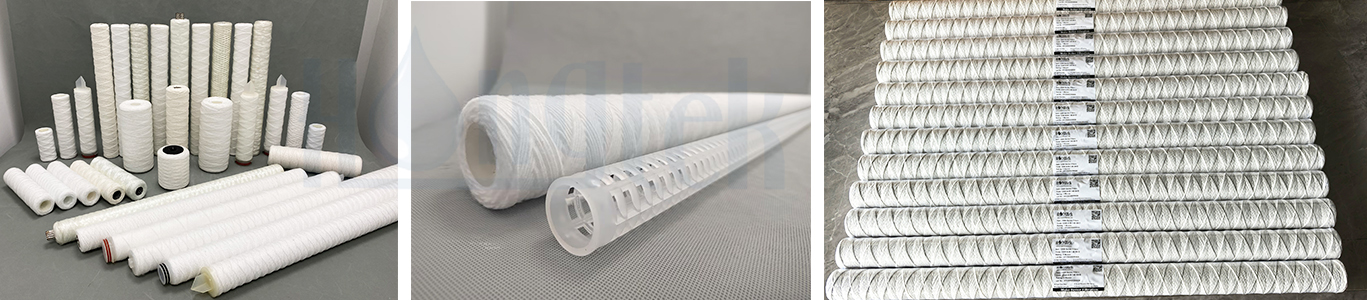

Traditional String Wound Cartridges VS High Flow String Wound Cartridges

In industrial water treatment, chemicals, food & beverage, and RO system pretreatment, traditional 2.5-inch string wound filter cartridges have long been widely used for small- to medium-flow situations. They are simple, reliable, affordable, and easy to replace. As industrial demands for higher flow rates and enhanced filtration efficiency continue to rise, traditional string would filter cartridges have revealed limitations in handling large-flow and heavy-contamination scenarios. In response, high-flow string wound filter cartridges have been developed. They are not intended to replace traditional cartridges, but to complement them, providing a more optimal solution for systems requiring high-flow and high-efficiency performance.

The traditional filter cartridges are compact and versatile, suitable for low to medium flow rates and standard operating conditions, while high flow rate string wound filter cartridges are large outer diameter + deep winding, specifically designed for high flow rates and high dirt holding capacity scenarios.

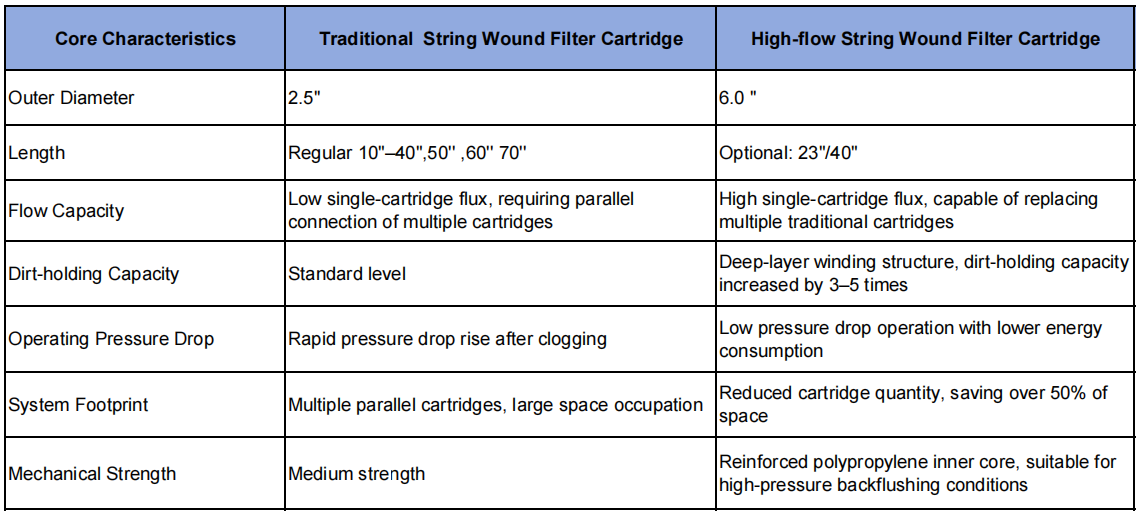

Comparison of Flow and Operating Efficiency

● Traditional String-Wound Filter Cartridges: Suitable for small- to medium-flow, with low purchase cost. But for large flows, multiple cartridges need to run in parallel, which increases the pressure drop, complicates piping, and increases the risk of leaks.

● High-flow String-Wound Filter Cartridges: A single cartridge can handle a large flow, simplifying the system layout. Their low-pressure drop reduces pump energy use, and longer service life means less downtime from frequent replacements.

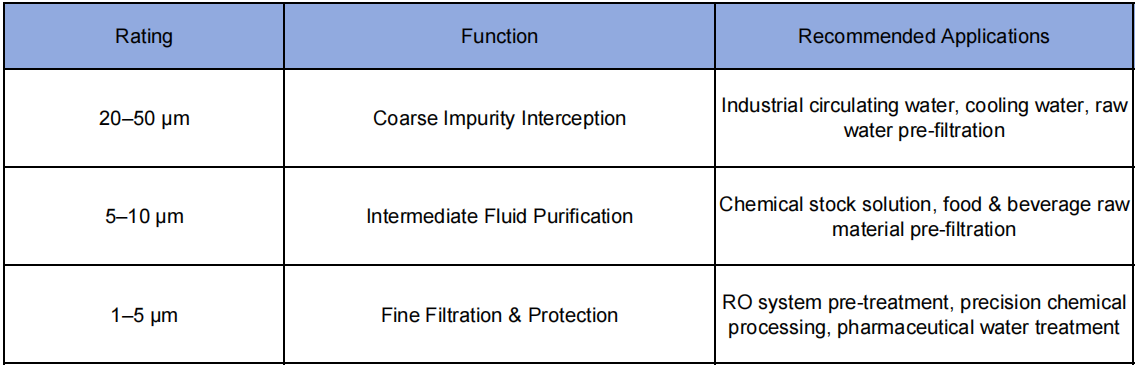

Rating selection and applicable scenarios

High-flow-rate wound filter cartridges can be used alone or in combination with traditional filter cartridges to achieve gradient filtration. So the suggestion is that higher precision is not always better. It is recommended to use a 20-50μm high-flow filter element for the front-end coarse filtration and a 1-5μm traditional filter element for the back-end fine filtration, balancing efficiency and lifespan.

Maintenance and Cost Advantages

● Traditional 2.5″ string wound cartridges: Highly versatile, easy to replace, and low in single-unit cost. Ideal for small- to medium-sized standard filtration systems, especially when budgets are tight and flow is stable.

● High-flow string wound cartridges: Handle more contaminants and need less frequent replacement, reducing labor and maintenance costs. One high-flow cartridge can replace several traditional ones, saving space. Longer service life also reduces downtime from replacements, ensuring continuous production.

Summary

● Traditional 2.5″ string wound cartridges: Proven and stable, cost-effective, suitable for small- to medium-flow and standard filtration conditions.

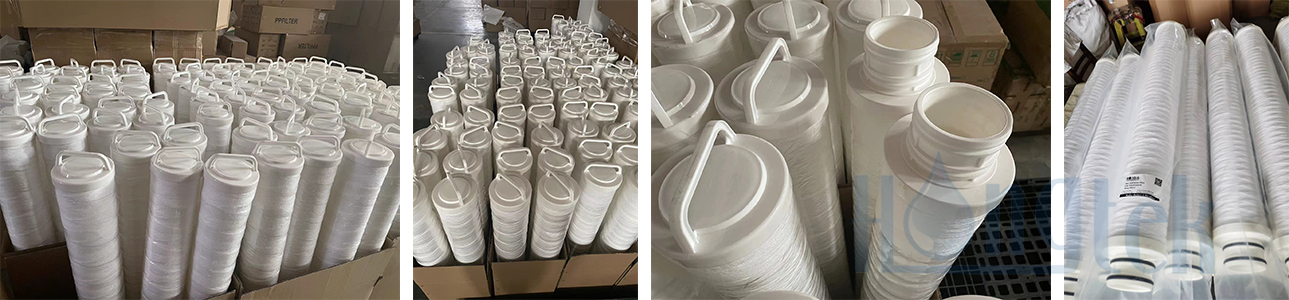

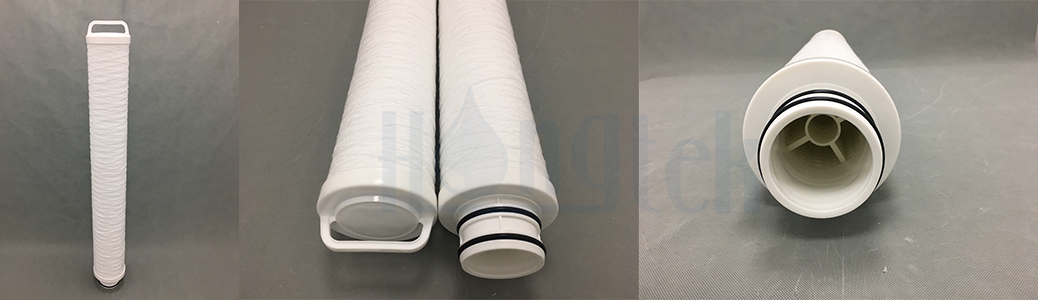

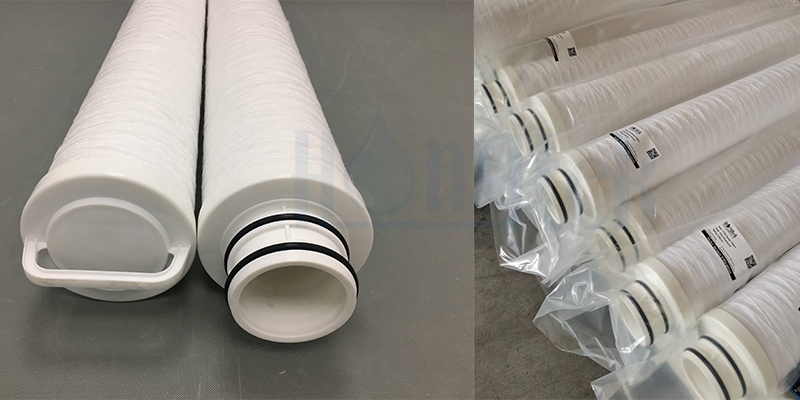

● High-flow string wound cartridges: Large, deep-layered structure with high flow, low pressure drop, and high contaminant capacity, ideal for high-flow, continuous industrial applications.

These two types are not replacements for each other but complementary options. Companies can flexibly combine them based on actual conditions, flow, and filtration accuracy needs, achieving a balance between cost, efficiency, and ease of maintenance. When dealing with complex operating conditions, choosing the right filter cartridge can be challenging. Hongtek offers a full range of high-flow wound cartridges along with free technical selection support. Contact us to receive your personalized "Application Matching & Cartridge Selection Plan", helping your filtration system achieve stable operation, high efficiency, and optimized costs.
