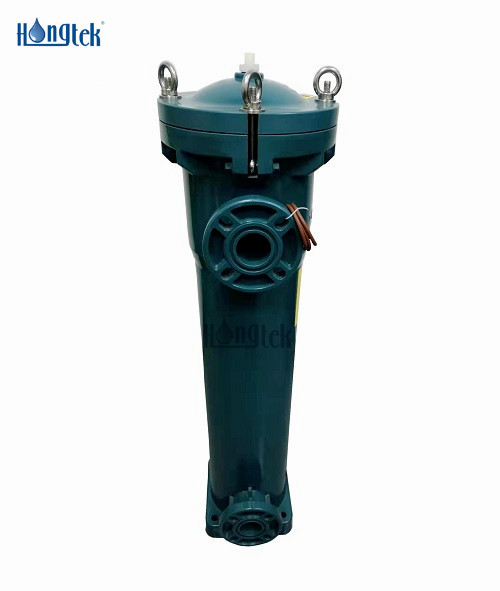

PPU Series PPH Single High Flow Polypropylene Filter Housing

Description

PPU Series PPH Single High Flow Polypropylene Filter Housing is made of Polypropylene Homopolymer (PPH) plastic integral die casting. PPH material has the advantages that stainless steel does not have. PPH high flow filter housing has the characteristics of strong corrosion resistance, acid and alkali resistance, high temperature resistance, high strength, and non-conductivity. PPH single high flow filter housing uses a single high flow series filter cartridge. The single high flow PP filter housing can be configured as an independent unit or combined with multiple filter housings in parallel according to on-site usage scenarios, which can effectively increase the flow of produced water and save space. PPH single high flow filter housing has smooth inner and outer walls, clean surface, not easy to scale, prevent bacterial growth, easy to clean, easy to install and maintain, and cost-effective. PPH high flow filter housing are widely used in industrial seawater desalination systems, chemical industry filtration, RO pre-filtration systems, power plant water treatment, electroplating solution filtration etc..

Specification
Housing MaterialPPH(Polypropylene Homopolymer)
Housing DirectionVertical
Filter SizeHigh Flow Cartridge 30", 40" Length & 6" OD
Number of FilterSingle
Housing Thickness16mm
Filtration Rating1μm - 100μm
ConnectionSide Port
Inlet/Outlet TypeFlange
Inlet/Outlet Size DN50, DN65, DN80
Sealing TypeScrewing Cap, Swing Bolt Cap
Seal MaterialViton


Feature

● Wide application range and long service life

● Easy to install and maintain, save labor cost, cost-effective

● Good sealing performance, no dead angle, no side leakage

● PPH high flow filter housing has Large flow and smaller installation space

● Strong corrosion resistance, acid and alkali resistance, high temperature resistance


Application

● RO Prefiltration

● Water Treatment

● Food and Beverage

● Medical and Chemical

● Electroplating Industry

● Sea Water Desalination

● Ultrafiltration Pretreatment

● Power Plant Water Treatment


Performance

Operation Data for PPH Single High Flow Filter Housing

Max. Temperature90°C
Max. Pressure116psi(8bar)
Liquid Flow DirectionSide in and side out
Flow RateSingle 30" High Flow Cartridge: 22.5m³/h
Single 40" High Flow Cartridge: 30m³/h

Installation of Single High Flow Filter Inside PPH High Flow Filter Housing

PPU Series PPH Single High Flow Polypropylene Filter Housing

● Easy to install and replace high flow filter elements, saving maintenance and labor costs.

● According to flow requirements, it can be adapted to a single 30 inch or 40 inch high flow filter element.

● Plastic microfiltration system is suitable for scenarios where stainless steel filter housing cannot be used.

● Adapt to different high flow filter elements by machining the bottom and top structures of the PPH filter housing.

● Ensure good sealing performance of the high flow filter, no side leakage, high flow rate, and high filtration efficiency.


Tech Support

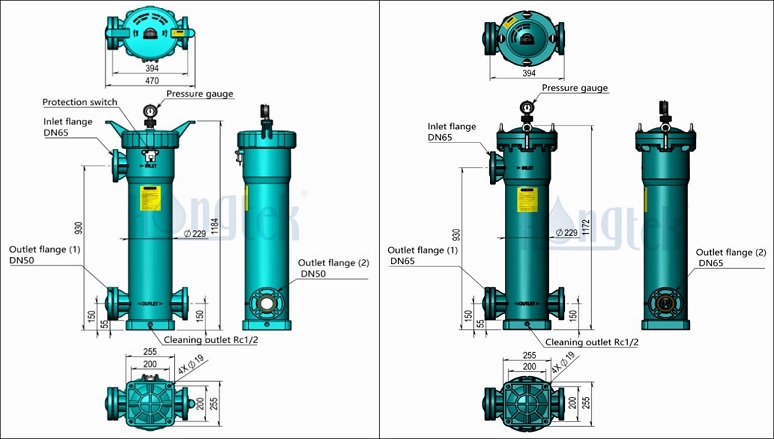

Drawing of PPH Single 40" Pall Ultipleat High Flow Cartridge Filter Housing


● There are screwing and swing bolt cap two different top covers to choose

● Good sealing, no side leakage, high filtration efficiency and long working life

● The filter housing can be adapted to a single 40 inch high flow filter element

● Save a lot of space, easy to install and maintain and replace the high flow filter element

● Strong pressure resistance, acid and alkali resistance, make up for the lack of stainless steel filter housing

● The flow rate is larger than that of the traditional depth filter element to meet the different needs of users

Applications of PPH Single High Flow PP Filter Housing


PPH High Flow Filter Housing Production Workshop



Order Information
PPUFilter LengthLiquid Flow DirectionNumber of FilterSealing TypeInlet/Outlet Size(Flange)

PPU Series PPH Single

High Flow Filter Housing

30 = 30"I = Inside to outside1 = 1pcA = Screwing CapN50 = DN50
40 = 40"O = Outside to insideB = Swing Bolt CapN65 = DN65
N80 = DN80

For Example:

PPU-40-O-1-B-N65

PPU Series PPH Single High Flow Filter Housing - 40" - 1pc - Outside to inside - Swing Bolt Cap - DN65

Please note: accept special customization and multi high flow filter housings combination
