PPF Series PPH Plastic Multi Cartridge Polypropylene Filter Housing

Description

PPF Series PPH Plastic Multi Cartridge Polypropylene Filter Housing make up for the unsuitable use of stainless steel multi-cartridge housings. Because in the filtration of strong acids and alkalis and strong corrosive liquids, stainless steel filter housing cannot be used, so PP cartridge filter housing has their remarkable superior performance. The PPH multi cartridge housing is one-piece injection molding, no seams, no dead ends, easy to clean, good sealing, with strict leak-proof design, the filtrate will not bypass, not leak, suitable for installing various depth filter elements, It has good filtration effect and long service life. PPH multi cartridge filter housing is a high-quality, high-efficiency, economical and practical excellent filtration system.

Specification
Housing MaterialPPH(Polypropylene Homopolymer)
Housing DirectionVertical
Depth Filter Type(OD:2.5")PP Melt Blown Filter
String Wound Cartridge
Pleated Cartridge Filter
Cartridge Length10", 20", 30", 40"
Housing Thickness16mm, 22mm
Filtration Rating0.1μm - 200μm
ConnectionSide Port, Bottom Port
Inlet/Outlet TypeFlange
Inlet/Outlet SizeDN40, DN50, DN65, DN80
Sealing TypeScrewing Cap Type, Swing Bolt Type
Seal MaterialViton


Feature

● All-match: international standard for inlet and outlet flanges

● No effusion: smooth interior and good sealing design, no residual liquid in the filter

● High pressure resistance: maximum working pressure 10 bar, working temperature 90℃

● Good sealing: all the sealing rings are made of fluorine rubber, which makes the corrosion resistance better

● Convenient operation: quick opening and easy installation and disassembly, easy to replace filter element consumables

● Acid and alkali resistance: suitable for 36% concentration of hydrochloric acid, less than 90% concentration of sulfuric acid

● Seamless barrel: The housing and flanges are injection molded at one time, without seams, with a smooth appearance and no leakage points.


Application

● PCB Industry

● Metal Plating

● LED Equipment

● Potion Processing

● Chemical Industry

● Inks and Coatings

● Sewage Treatment

● Acid-base Solution Filtration


Performance

Operation Data for PPH Multi Cartridge PP Filter Housing

Max. Temperature90°C
Max. Pressure116psi(8bar)
Liquid Flow DirectionSide in and side out
Bottom in and bottom out

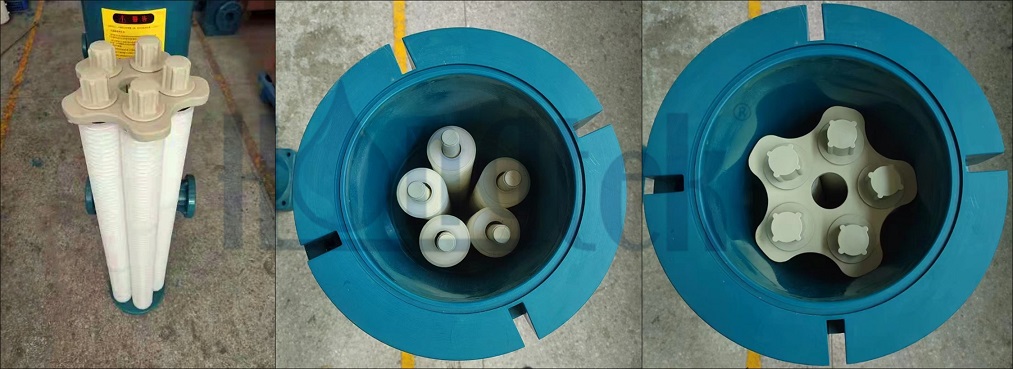

5pcs 20" PP Pleated Cartrdige Filters Installed In PPH Multi-cartridge Housing

PPF Series PPH Plastic Multi Cartridge Polypropylene Filter Housing


Tech Support

Drawing of PPH Plastic Multi Cartridge PP Filter Housing


● No side leakage, good sealing performance, easy to install, maintain and replace the filter elements.

● Strong corrosion resistance, suitable for use in strong acid, strong alkali and high temperature scenarios.

● According to the user's needs, the top cover of PPH filter housing can choose screwing cap type or swing bolt cap type.

● The bottom and top seals of the filter housing can be modified according to 10 inch, 20 inch, and 30 inch depth filter elements.

● The PPH filter housing is modified according to the bag filter housing shell to adapt to various filtration scenarios that require the use of depth filters.

● According to the required flow and filter cartridges of different lengths, different types of filter elements, filter housings of different heights are recommended for flexible matching.

PPH Cartridge Filter Housing Installation Reference


Application of PPH Plastic Multi Cartridge PP Filter Housing



Order Information
PPFCartridge TypeCartridge LengthNumber of CartridgeSealing TypeInlet/Outlet Size(Flange)

PPF Series

PPH Multi Cartridge Filter Housing

M = PP Melt Blown Filter10 = 10"3 = 3pcsC = Screwing Cap TypeN40 = DN40
5 = 5pcs
20 = 20"25 = 25pcsN50 = DN50
W = String Wound Cartridge30 = 30pcs
30 = 30"35= 35pcsN65 = DN65
40= 40pcsB = Swing Bolt Type
E = Pleated Cartridge Filter40 = 40"45= 45pcsN80 = DN80
50= 50pcs

For Example:

PPF-M-30-5-C-N65

PPF Series PPH Multi Cartridge Filter Housing - PP Melt Blown Filter - 30" - 5pcs - Swing Bolt Type - DN65

There are many types of multi cartridge filter housings, please contact our sales team for specific needs.
