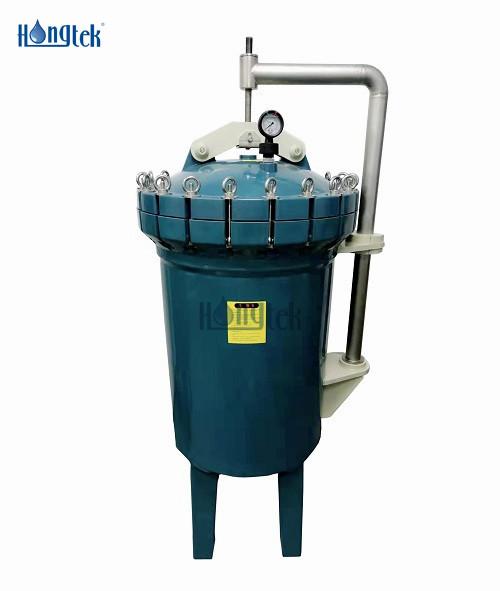

PPY Series PPH Plastic Multi High Flow Cartridge Filter Housing
PPY Series PPH Plastic Multi High Flow Cartridge Filter Housing PPY Series PPH Plastic Multi High Flow Cartridge Filter Housing PPY Series PPH Plastic Multi High Flow Cartridge Filter Housing PPY Series PPH Plastic Multi High Flow Cartridge Filter Housing
PPY Series PPH Plastic Multi High Flow Cartridge Filter Housing PPY Series PPH Plastic Multi High Flow Cartridge Filter Housing PPY Series PPH Plastic Multi High Flow Cartridge Filter Housing PPY Series PPH Plastic Multi High Flow Cartridge Filter Housing

PPY Series PPH Plastic Multi High Flow Cartridge Filter Housing

Description

PPY Series PPH Plastic Multi High Flow Cartridge Filter Housing adopts the method of installing multiple high flow cartridges in the housing shell to meet the water treatment system's demand for larger flow. PPH multi high flow cartridge housing has the characteristics of acid resistance, alkali resistance, high temperature resistance and strong chemical resistance. PPH plastic multi high flow filter housing has the characteristics of longer service life, larger flow rate, good dirt holding capacity and high filtration efficiency. The multi high flow cartridge housing is suitable for strong corrosion filtration where stainless steel filter housing cannot be used. PPH multi high flow filter housing has a simple structure and is easy to install and maintain, which can help save a lot of space and equipment costs, so as to achieve cost-effective filtration.

Specification
Housing MaterialPPH(Polypropylene Homopolymer)
Housing DirectionVertical
Filter SizeHigh Flow Cartridge 30" Length & 6" OD
Number of Cartridges2 - 7pcs
Housing Thickness22mm
Filtration Rating1μm - 100μm
ConnectionBottom Port
Inlet/Outlet TypeFlange
Inlet/Outlet SizeDN80
Sealing TypeSwing Bolt Cap With/Without Rocker Arm
Seal MaterialViton


Feature

● Thickness of PPH housing is up to 22mm, pressure resistance up to 10 bar

● PPH Plastic multi high flow filter housing help to save a lot of space and equipment costs

● According to the flow requirements, the multi high flow cartridge housing can be customized

● PPH multi high flow cartridge housing is easy installation, low maintenance cost and labor saving

● Longer service life, good sealing, larger flow, good dirt holding capacity and high filtration efficiency

● Strong corrosion resistance, acid and alkali resistance, high temperature resistance and high strength


Application

● Power Plant

● RO Prefiltration

● Water Treatment

● Electronics Industry

● Medical and Chemical

● Electroplating Industry

● Sea Water Desalination


Performance

Operation Data for PPH Multi High Flow Cartridge Filter Housing

Max. Temperature90°C
Max. Pressure145psi(10bar)
Liquid Flow DirectionBottom in and bottom out
Flow Rate2pcs 30" High Flow Cartridges: 45m³/h
3pcs 30" High Flow Cartridges: 70m³/h
4pcs 30" High Flow Cartridges: 90m³/h
5pcs 30" High Flow Cartridges: 110m³/h
6pcs 30" High Flow Cartridges: 135m³/h
7pcs 30" High Flow Cartridges: 160m³/h


Tech Support

Drawing of PPH Plastic Multi-Cartridge Filter Housing


● The wall thickness of the filter housing is 22mm, with strong pressure resistance and long service life.

● High flow multi-cartridge filter housing, good sealing, easy to install, maintain and replace the high flow filter elements.

● Different numbers of high flow filter elements can be designed according to the required flow rate with high filtration accuracy.

● Up to 7pcs high flow filter elements with 30inch length and 6" OD can be installed, and the maximum flow rate can reach 160m³/h.

● Compared with the depth filter housing, the High flow multi-cartridge housing saves a lot of space and is economical and applicable.

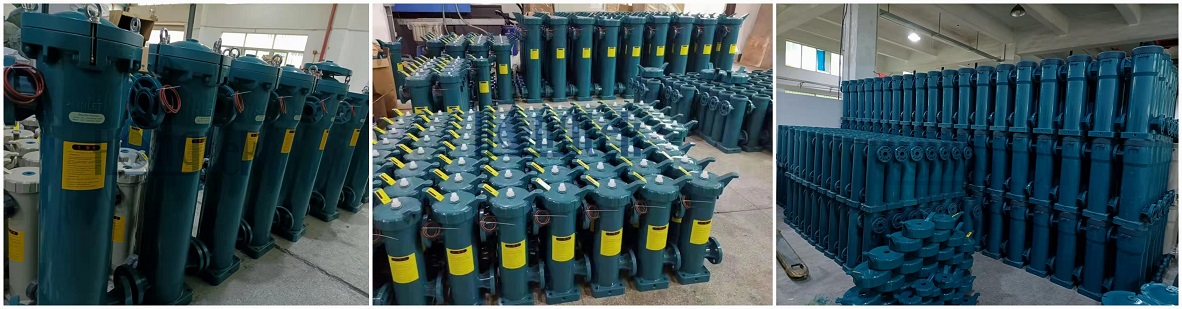

PPH Plastic High Flow Filter Housing Production Workshop


Order Information
PPYFilter LengthNumber of FiltersInlet/Outlet Size(Flange)Rocker Arm

PPY Series PPH Multi

High Flow Cartridge

Filter Housing

30 = 30"2 = 2pcsN80 = DN80W = With Rocker Arm
3 = 3pcs
4 = 4pcs
5 = 5pcsT = Without Rocker Arm
6 = 6pcs
7 = 7pcs

For Example:

PPY-30-6-N80-W

PPY Series PPH Multi High Flow Cartridge Filter Housing - 30" - 6pc - DN80 - With Rocker Arm

Please note: Special specification PPH multi high flow cartridge housings can be customized when needed
