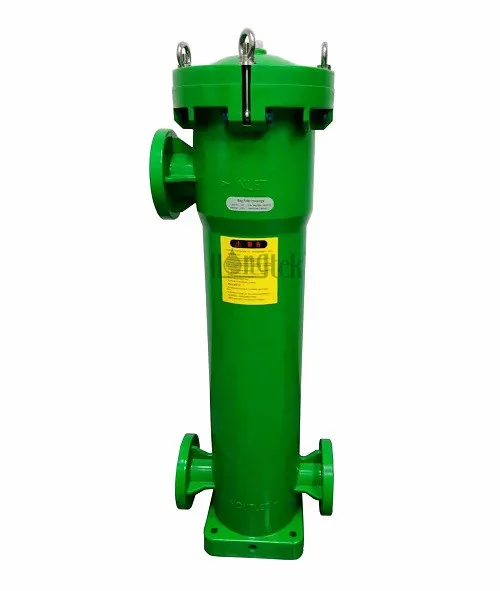

PPT Series Top Entrying Type PPH Plastic Single Polypropylene Bag Filter Housing, equipped with standard size #2 (Φ7"x32") filter bag. The PPH plastic bag housing is designed and manufactured according to the international standard, which can match the filter bags of international famous brands (such as EATON, FSI, PALL, etc.). The body of plastic bag housing adopts a one-piece design, the structure is firm and reliable, and there is no welding point, which completely solves the concern of liquid leakage. Increase the space design of the inner wall of the mesh basket and the bucket and the bottom of the mesh basket and the bucket, so that the liquid filtration channel is more unobstructed, thereby reducing the energy consumption of the pump. PPH bag filter housing contains UV-resistant material, light weight, durable, suitable for use in various climates, and has good corrosion resistance to most chemicals.
| Housing Material | PPH(Polypropylene Homopolymer) |
| Housing Direction | Vertical |
| Bag Size | Size #2: Φ7"x32"L(Φ180x810mm) |
| Number of Bag | Single |
| Housing Thickness | 16mm |
| Filtration Rating | 1μm - 800μm |
| Connection | Top Port and Side Port |
| Inlet/Outlet Type | Flange |
| Inlet/Outlet Size | DN65 |
| Sealing Type | Screwing Cap Type |
| Seal Material | Viton |
● Acid and alkali resistant and high temperature resistant, PPH bag filter housing has good corrosion resistance to most chemicals
● The water inlet and outlet are connected by flange, which is sturdy and durable, and can be used with international standard pipe flanges
● This plastic bag housing is designed and manufactured according to the international standard, which can match with the size #2 (Φ7"x32") filter bag
● The excellent sealing design of the mesh basket, the inner wall of the bucket, the ring mouth of the filter bag and the inner wall of the mesh basket prevents leakage inside the bucket
● The polished barrel wall design can not only prevent the liquid medicine from crystallizing on the barrel wall, but also facilitate manual cleaning, and it is convenient and quick to replace the filter bag
● Desalination
● Petrochemical
● Industrial Waste
● Electronics Industry
● Biological Engineering
● Electroplating Industry
● Pharmaceutical Industry
Operation Data for PPH Plastic Single Size #2 PP Bag Filter Housing
| Max. Temperature | 90°C |
| Max. Pressure | 116psi(8bar) |
| Liquid Flow Direction | Top entrying and side out |
| Flow Rate | Size #2 (Φ7"x32"): 40m³/h |
| Filtration Area | Size #2 (Φ7"x32"): 0.5㎡ |
| Bag Housing Capacity/Weight | Size #2 (Φ7"x32"): 32L/24.2KG |
Components & Drawing of PPT Series PPH Bag Filter Housing
● Save space, save installation and maintenance costs
● PPH plastic bag housing is no welding points and no leakage
● Large flow rate, high filtration precision and wide range of uses
● Acid and alkali resistance, high temperature resistance, strong corrosion resistance
● Top entrying type PPH bag filter housing is rigorously designed and has good sealing performance
| PPH | Bag Dimensions | Number of Bag | Inlet/Outlet Size(Flange) |
PPT Series PPH Single Bag Filter Housing | S2 = Size #2 (Φ7"x32") | 1 = 1pc | N65 = DN65 |
Hongtek Code: PPT-S2-1-N65
PPT Series Top Entrying Type PPH Single Bag Filter Housing - Size #2: Ø7"× 32" - 1pc - DN65
