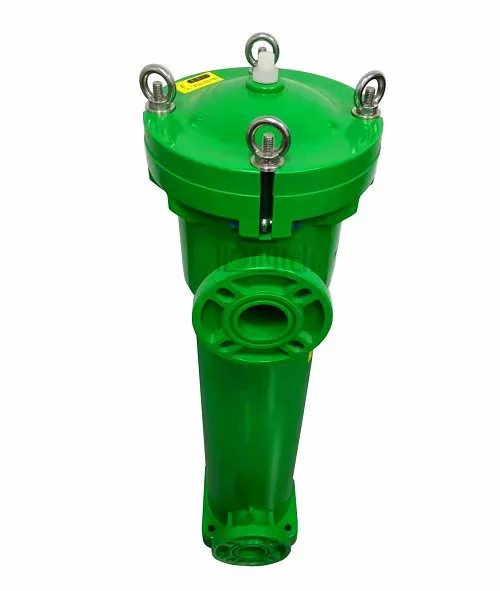

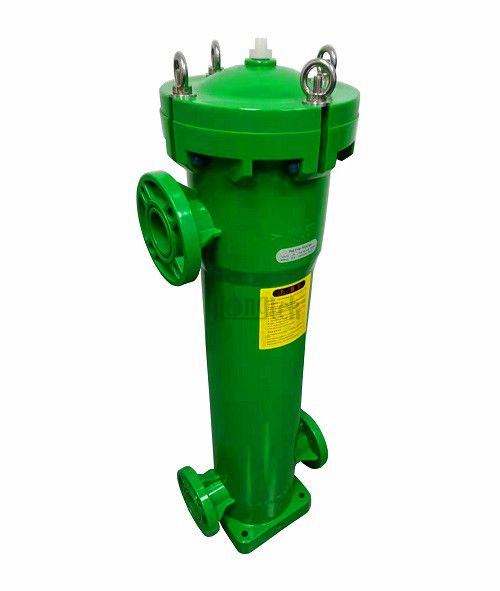

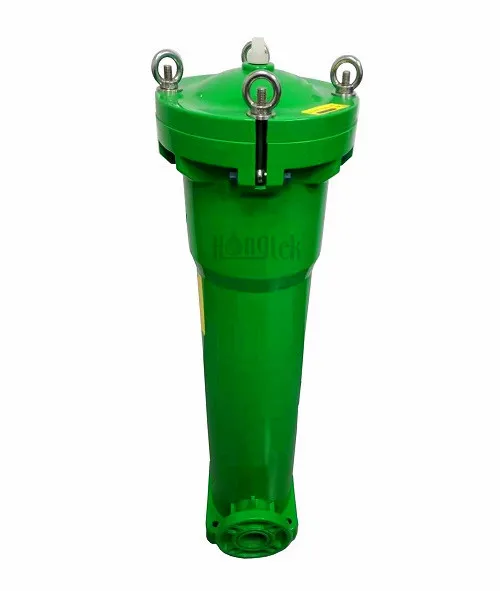

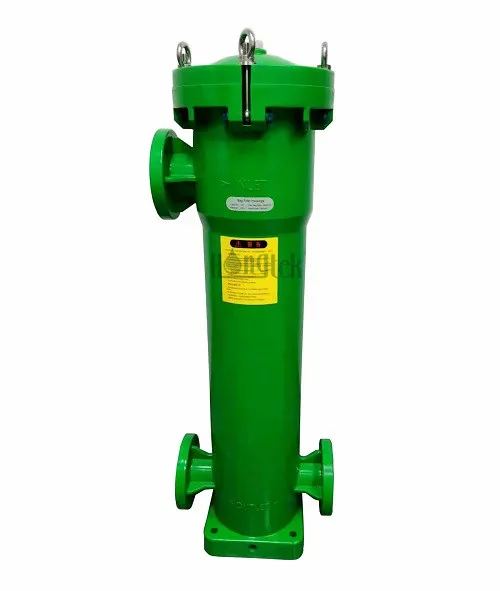

Hongtek PVM Series PVDF Plastic Multi Cartridge Filter Housing is made of PVDF for the installation of 5 round depth filter cartridges. PVDF multi cartridge housing is available for OD 2.5" micron filter cartridges. The cover can be removed without tools and 4 sets of SS316 eye bolts gives higher tightness. With unique one-piece molded body, without welding, no side leakage, PVDF multi cartridge filter housing is easy to install and maintain. PVDF plastic filter housing can deal with liquid with strong acid, strong alkali and highly corrosive, such as sulfuric acid, hydrochloric acid, sulfonic acid, plating solution, etc. PVDF cartridge filter housing also has unparalleled performance under high pressure and high temperature conditions. It would be your perfect choice for application as chemical industry, electroplating filtration industry, petrochemical and metal processing etc.
| Housing Material | PVDF(Polyvinyl Fluoride) |
| Housing Direction | Vertical |
| Filter Type | Depth Cartridge Filter |
| Cartridge Length | 30" |
| Cartridge No. | 5pcs |
| Housing Thickness | 16mm |
| Filtration Rating | 0.1μm - 200μm |
| Connection | Side Port |
| Inlet/Outlet Type | Flange |
| Inlet/Outlet Size | DN50, DN65, DN80 |
| Sealing Type | Swing Bolt Cap Type |
| Seal Material | Viton |
● PVDF plastic filter housing is made of pure PVDF, no metal parts, never rust and corroded
● Excellent chemical compatibility, can filter strong acid, strong base and organic solvent
● It can resist on high temperature and high pressure with low pressure difference and long service life
● Filter cartridge can be replaced conveniently, providing high precision with wide filtering area, high efficiency, easy to operate and clean
● PVDF cartridge filter housing can be widely used in electroplating, PCB, chemical engineering, medical treatment, environmental protection and coating etc
● Chemical solvent
● Medical Treatment
● Semiconductor Industry
● Pharmaceutical water filtration
● Paint resin and Coating Industry
● Industrial Waste Water Treatment
Operation Data for PVDF Multi Cartridge Filter Housing
| Max. Temperature | 150°C |
| Max. Pressure | 116psi(8bar) |
| Liquid Flow Direction | Side in and side out |
| PVM | Cartridge Length | Number of Cartridge | Inlet/Outlet Size(Flange) |
| PVM Series PVDF Multi Cartridge Filter Housing | 30 = 30" | 5 = 5pcs | N50 = DN50 |
| N65 = DN65 | |||
| N80 = DN80 |
For Example:
PVM-30-5-N65
PVM Series PVDF Multi Cartridge Filter Housing - 30" - 5pcs - DN65
