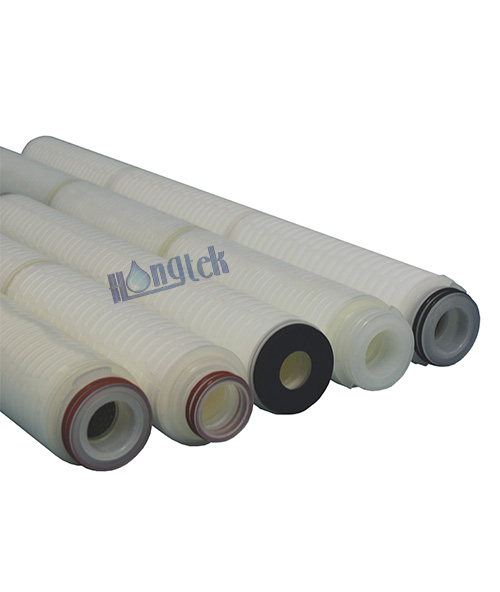

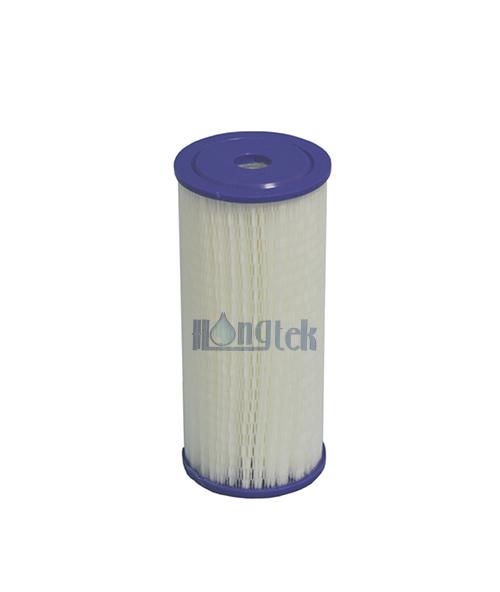

APC Series Absolute PP Pleated Filter Cartridges
APC Series Absolute PP Pleated Filter Cartridges APC Series Absolute PP Pleated Filter Cartridges APC Series Absolute PP Pleated Filter Cartridges
APC Series Absolute PP Pleated Filter Cartridges APC Series Absolute PP Pleated Filter Cartridges APC Series Absolute PP Pleated Filter Cartridges

APC Series Absolute PP Pleated Filter Cartridges

Description

APC Series Absolute PP Pleated Filter Cartridges are high-purity pp pleated cartridges designed for use in most applications where absolute rated pleated filtration is needed. 10-inch absolute PP pleated filter holds 6.5 square feet of filtration media, providing larger surface area than normal pleated filter cartridges. High-purity absolute PP pleated cartridge is of great value with excellent dirt holding capacity, long service life and consistence of performance.

Absolute PP pleated filters are constructed with 100% advanced PP materials and assembled by high technology thermal bonding equipment. Absolute PP pleated cartridges are offered in absolute rate Beta 5000(to 99.98%) retention efficiencies. Absolute pleated filter cartridges are wide chemical compatibility due to the use of 100% polypropylene materials comply with FDA, so absolute pleated filter cartridge is an ideal choice for efficient filtration of critical industries.


Specification
Filter MediaPolypropylene
Length5", 9.75", 9.8", 10", 20", 30", 40"
Outside Diameter2.75"(70mm)
Filtration Rating0.1μm, 0.22μm, 0.45μm, 0.65μm, 0.8μm, 1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 30μm, 40μm, 50μm, 60μm
CorePolypropylene, Stainless Steel
Support/DrainagePolypropylene
Gasket/O-ringSilicone, EPDM, Viton, NBR, Teflon encapsulated Viton
End Cap/CagePolypropylene
End Cap TypeDOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin, 215/Flat, 215/Fin


Feature

● High surface area, resulting in low pressure and excellent dirt holding capacity

● Wide chemical compatibility using 100% polypropylene material to meet FDA requirements

● PP pleated filter cartridges are with absolute removal ratings for consistent and reliable performance

● Assembled by high technology thermal bonding equipment, non-adhesive and 100% integrity tested

● Absolute PP pleated cartridges are offered in absolute rate Beta 5000(to 99.98%) retention efficiencies


Application
Food & BeverageProcess WaterDeionized Water
Fine ChemicalsR.O PrefiltrationPlating Chemicals
WastewaterSemiconductorPharmaceuticals
Performance

Operation Data for Absolute PP Pleated Filter Cartridges

Maximum Operating Temperature80℃(176℉)
Max. Differential Pressure4.8 bar at 20℃ (70 psi at 68℉)
3.4 bar at 50℃ (50 psi at 122℉)
1.4 bar at 80℃ (20 psi at 176℉)
Maximum reverse pressure40 psid @ 70°F (2.8 bar @ 21°C)
Recommended Change Out Differential PressureΔP 35 psi
Filtered Hot Water80˚C for 30 min
Sterilization Temperature Time121˚C (250˚F) for 30 minutes, multiple cycles


Tech Support

Electron Microscopic Photo of Absolute PP Membrane

Absolute-PP-Membrane-Electron Microscopic.jpg


3D Drawing for Absolute PP Pleated Filter Cartridges
Drawing-for-Absolute-PP-Pleated-Filter Cartridges.png

● Ulti-layers pleated, low pressure drop, high capacity of impurities and long service life

● 100% integrity tested, ineer core and outside cage strengthen capacity of high flow pressure

● Thermal welding techniques ensure Absolute PP Pleated Filter Cartridges no side leakage

● Large surface area allow for high flow rate and higher dirt holding capacity than normal depth filters


Installation Example for Absolute PP Pleated Filter Cartridges

Drawing-for-Absolute-PP-Pleated-Filter Cartridges.jpg

● Manufactured in continuous lengths up to 40 inches

● Easy to install help to save some manpower and time

● Many kinds of end caps fit for standard filter housings

● Wide range of chemical compatibility used in prefiltration fields

● Various gaskets/O-ring material compatible with a variety of fluids

● Special Absolute PP Pleated Filters can be made, such us S.S. inner core


End Caps of Absolute PP Pleated Filter Cartridges


Order Information
APCLengthMicron RatingEnd CapGasket/O-ringAdders

APC Series

Absolute PP Pleated Filter Cartridges

5 = 5"0.1 = 0.1μmA = Double Open End (DOE)S = SiliconeT = Thicker PP Cage
0.22 = 0.22μm
9.75 = 9.75"0.45 = 0.45μmB = 222/Flat(SOE)
0.65 = 0.65μmE = EPDM
9.8 = 9.8"0.8 = 0.8μmC = 222/Fin(SOE)
1 = 1μmI = Stainless Steel Insert End Cap
10 = 10"2 = 2μmD = 226//Flat(SOE)N = NBR
3 = 3μm
20 = 20"5 = 5μmF = 226/Fin(SOE)
10 = 10μmV = Viton
30 = 30"20 = 20μmG = 215/Flat(SOE)S = Stainless Steel Core
30 = 30μm
40 =40"40 = 40μmH = 215/Fin(SOE)T = Teflon Encapsulated Viton
50 = 50μm
60 = 60μm

For Example:

APC-20-5-A-S

APC Series Absolute PP Pleated Filter Cartridges - 20" - 5μm - Double Open End (DOE) - Silicone Gasket
