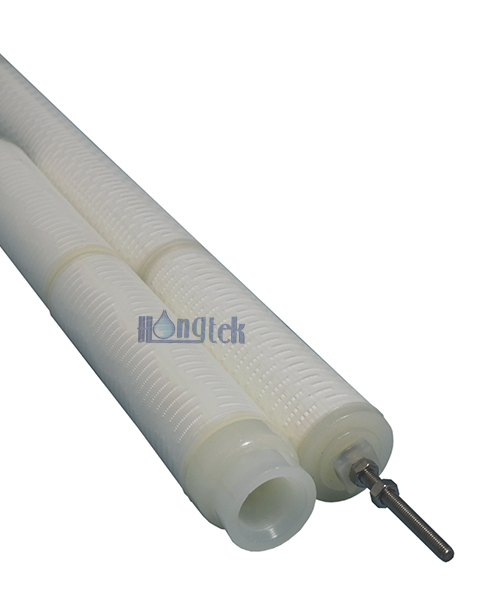

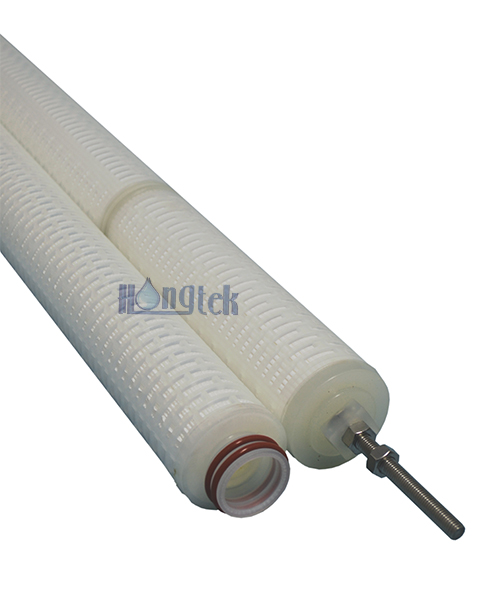

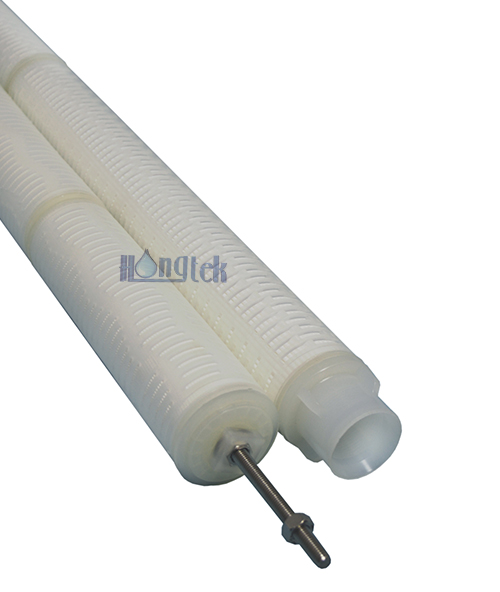

BCF Series Backwashable PP Pleated Cartridges
BCF Series Backwashable PP Pleated Cartridges BCF Series Backwashable PP Pleated Cartridges BCF Series Backwashable PP Pleated Cartridges
BCF Series Backwashable PP Pleated Cartridges BCF Series Backwashable PP Pleated Cartridges BCF Series Backwashable PP Pleated Cartridges

BCF Series Backwashable PP Pleated Cartridges

Description

BCF Series Backwashable PP Pleated Cartridges are mainly designed for power plant condensed water filtration. PP Filter media of backwashable pleated cartridges are available in absolute ratings ranging from 1 to over 100 microns to meet the removal requirements of each individual condensate system. Like all the condensate filter cartridges from Hongtek, a variety of end fittings can be selected to retrofit the elements in existing power plant condensate filter systems.

The length used most for backwashable PP pleated cartridges are 60" and 70". The robust construction and reduced pleat height, not only makes backflush possible and media deterioration avoidable, but also extends filtration area and therefore provides higher flow capacity. Backwashable cartridges are with a wide range of chemical compatibility, high efficiency filtration,  long service life and economical cost.

Specification
Filter MediaPolypropylene
Length60"(1524mm), 70"(1778mm)
Outside Diameter2.75"(70mm)
Filtration Rating1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 100μm
CorePolypropylene
Support/DrainagePolypropylene
Gasket/O-ringSilicone, EPDM, Viton, NBR
End Cap/CagePolypropylene
End Cap TypeDOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin, 215/Flat, 215/Fin


Feature

● High surface area of superior pleated media, high dirt holding capacity

● Wide range of chemical compatibility, long service life and economical cost

● Less damage from iron and copper to the boiler and turbine of condensed system

● Backwashable cartridges Absolute micron rating, removal efficiency rated at 99.9%

● Backwashable PP pleated cartridges designed for power plant condensed water filtration

● Backwashable pleated cartridges Can be backwashed to prolong life and easy to change out


Application
ElectronicsPre RO FiltrationPetrochemical Processes
Boiler WaterPlating SolutionsCondensed Water Filtration
Cooling WaterSea Water DesalinationPower Plant Water Treatment


Performance
Maximum Operating Temperature80℃(176℉)
Max. Differential Pressure4.0 bar at 20℃ (58 psi at 68℉)
2.0 bar at 60℃ (29 psi at 140℉)
1.4 bar at 80℃ (20 psi at 176℉)
Maximum reverse pressure1.0 bar at 80℃ (14 psi at 176℉)
Recommended Change Out Differential Pressure2.0 bar (29 psi)


Tech Support

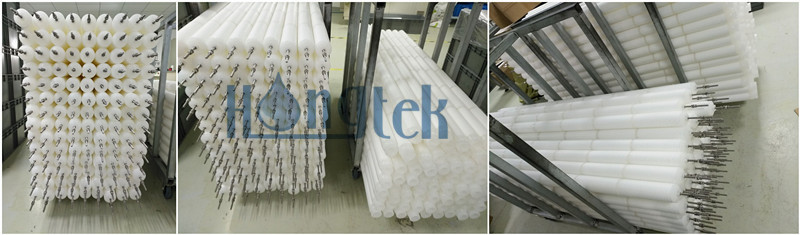

Display of Backwashable PP Pleated Cartridges


● Backwashable PP pleated cartridges are easy to maintenance and lower change out costs

● High surface area of superior pleated media, high dirt holding capacity, removal efficiency rated at 99.9%

● A variety of end fittings can be selected to retrofit the elements in existing power plant condensate filter systems

● 60 inchs & 70 inchs backwashable PP Pleated Cartridges are mainly designed for power plant condensed water filtration


Order Information
BCFLengthMicron RatingGasket/O-ringEnd Cap

BCF Series

Backwashable PP Pleated Cartridges

60 = 60"1 = 1μmS = SiliconeDOE = Flat Gaskets
Double Open
End
3 = 3μm2E = 2-222 O-ring
with Flat End
5 = 5μmE = EPDM6E = 2-226 O-ring
with Flat End
10 = 10μm2F = 2-222 O-ring
with Fin
70 = 70"20 = 20μmN = NBR6F = 2-226 O-ring
with Fin

50 = 50μm

ES = Extended PP & S.S.
Thread Adapter

100 = 100μm

V = Viton

For Example:

BCF-60-5-S-ES

BCF Series Backwashable PP Pleated Cartridges - 60" - 5μm - Silicone - Extended PP & S.S. Thread Adapter
