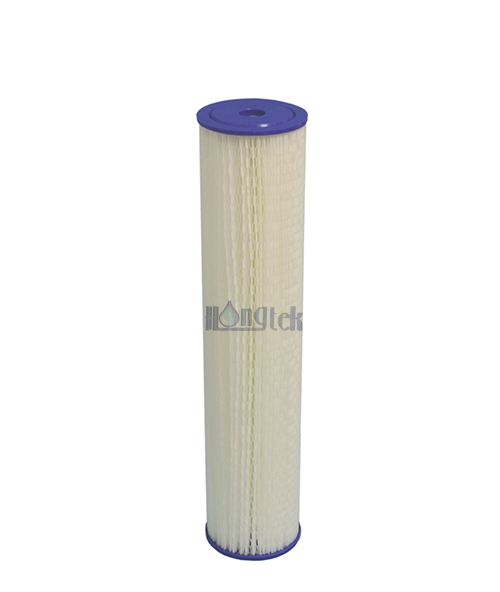

BPC Series Big Blue Polyester Pleated Cartridges
BPC Series Big Blue Polyester Pleated Cartridges BPC Series Big Blue Polyester Pleated Cartridges BPC Series Big Blue Polyester Pleated Cartridges
BPC Series Big Blue Polyester Pleated Cartridges BPC Series Big Blue Polyester Pleated Cartridges BPC Series Big Blue Polyester Pleated Cartridges

BPC Series Big Blue Polyester Pleated Cartridges

Description

BPC Series Big Blue Polyester Pleated Cartridges are made of high-quality polyester filter media and designed for general water filtration purposes, having low pressure drop and high flow capacity. Big Blue polyester pleated cartridges offer high retention efficiency.

Big blue polyester cartridges have central PP corn and welded plastisol end caps to ensure no bypass. Big Blue polyester filters are washable and reusable commodiously. Numerous pleated counts enlarge surface area, making the filters durable and improving filtration efficiency.


Specification
Filter MediaPolyester (PET)
Length9.8", 10", 20", 30", 40"
Outside Diameter4.5"
Inside Diameter1.1" (28mm)
Filtration Rating1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 100μm
CorePolypropylene
Outer NettingPolypropylene
End Caps/GasketsPlastisol/Polyurethane
End Cap TypeDouble Open End (DOE)


Feature

● Pleated design increases surface area and maximizes dirt holding capacity

● Big Blue polyester pleated filters require low pressure drop and perform with high flow rate

● High quality polyester filter media and chemical resistant, good for for general water filtration

● Big Blue polyester pleated cartridges are easy to install, saving maintenance and replacement cost

● Polyester filters are washable and reusable, accompanied with good price and good filtration efficiency


Application
ElectronicsPre RO/DIPCW
Cooling WaterFood & BeverageDrinking Water
PharmaceuticalsIndustrial Water & PlatingChemicals & Organic Solvents


Performance

Operation Data for Big Blue Polyester Pleated Cartridges

Maximum Operating Temperature75℃(167℉)
Max. Differential Pressure4.8 bar at 20℃ (70 psi at 68℉)
3.4 bar at 50℃ (50 psi at 122℉)
Maximum reverse pressure40 psid @ 70°F (2.8 bar @ 21°C)
Recommended Change Out Differential Pressure2.4 bar (35 psid)


Pressure Drop vs Flow Rate for 10" Big Blue Pleated Cartridge


Tech Support


● Big Blue polyester pleated filters are tightening pleated with larger filtration area, others are sparse pleated counts with less surface area

● Hongtek end cap is made of high quality Polyurethane, smooth surface is good for sealing, low quality end caps are made of inferior glue

● Big Blue polyester pleated cartridges have advanced outer netting to strengthen the whole construction, others don't make good outer netting

● The Pleated counts of Hongtek big blue polyester pleated cartridges is equal or greater than 70, low quality made less than 70 pleated counts


Order Information
BPCLengthMicron RatingOutside

BPC Series

Big Blue Polyester Pleated Cartridges

9.8 = 9.8"1 = 1μmW = With PP Netting
10 = 10"5 = 5μm
20 = 20"10 = 10μm
30 = 30"20 = 20μm
30 = 30μmO = Without Netting
40 =40"50 = 50μm
100 = 100μm

For Example:

BPC-10-1-W

BPC Series Big Blue Polyester Pleated Cartridges - 10" - 1μm - With PP Netting
