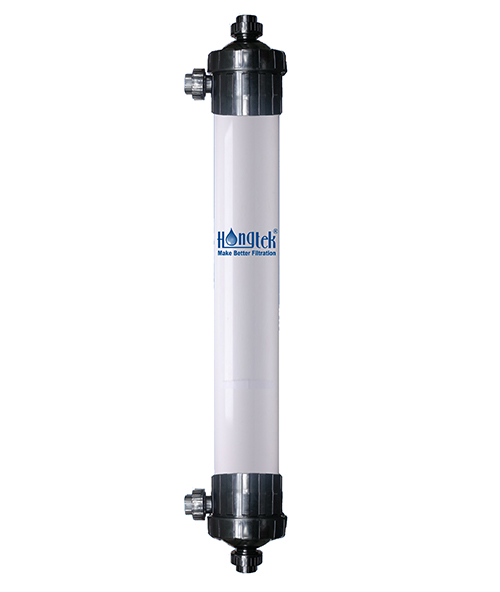

UFP200 Series 8" PVC UF Membrane Module for Industrial Water Treatment
UFP200 Series 8" PVC UF Membrane Module for Industrial Water Treatment UFP200 Series 8" PVC UF Membrane Module for Industrial Water Treatment UFP200 Series 8" PVC UF Membrane Module for Industrial Water Treatment
UFP200 Series 8" PVC UF Membrane Module for Industrial Water Treatment UFP200 Series 8" PVC UF Membrane Module for Industrial Water Treatment UFP200 Series 8" PVC UF Membrane Module for Industrial Water Treatment

UFP200 Series 8" PVC UF Membrane Module for Industrial Water Treatment

Description

UFP200 Series 8" Hollow Fiber PVC UF Membrane Module is made of modified PVC hollow fiber membrane with hydrophilicity, high strength, high flux, strong anti-pollution ability and high oxidation resistance ensures a longer service life of the ultrafiltration membrane module. 0.01micron nominal membrane pore of hollow fiber PVC UF membrane can remove bacteria, viruses, microorganisms, particulate matter, colloids and macromolecular organics, effectively ensuring the effluent effect or protecting subsequent process equipment. Larger effective filtration area, improved design water production of PVC UF membrane module, saving equipment input cost. Internal pressure structure makes cleaning more thorough and prolongs the service life of PVC UF membrane module.

Specification
ModuleUFP200

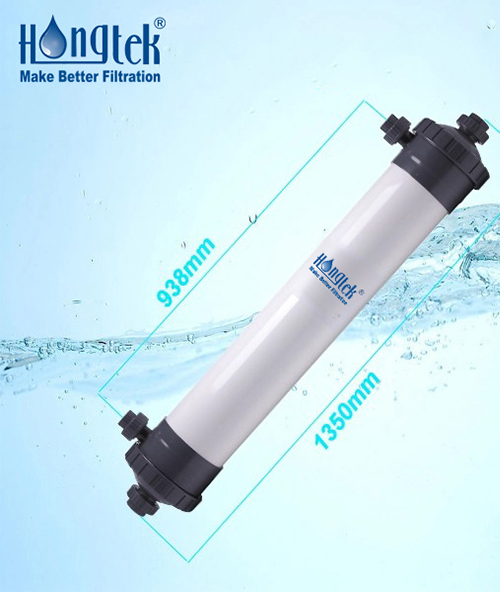

Element sizeØ200×1350mm
Membrane materialPVC
Active membrane area24m²
ID/OD of hollow fiber1.0mm/1.8mm
MWCO100000 Dalton
Filtration rating0.01 micron
Material of end sealEpoxy resins
Material of housingUPVC
Inlet pipeDN50 OD 56mm PVC pipe
Produced water outlet pipeDN50 OD 56mm PVC pipe
Concentrated water outlet pipeDN50 OD 56mm PVC pipe


Feature

● PVC UF membrane has strong chemical resistance, wide application range

● Good sealing of components, easy backwashing, stable good water quality

● UF membrane module has large filtration area, large flow, and small footprint

● Strong anti-pollution ability, good mechanical performance and long service life

● PVC UF membrane module using dead end filtration or cross-flow filtration method


Application

● Purification of tap water

● Domestic sewage treatment

● RO membrane pretreatment

● Food and beverage filtration

● Industrial wastewater treatment

● Pretreatment of seawater desalination


Performance
Membrane water flow modeInside to outside
Operation mode Cross-flow filtration or dead end filtration
Pure water flow6.5t/h. 25℃. 0.15Mpa
Designed water flow40-100L/㎡.h
Maximum operating pressure0.3Mpa
Maximum transmembrane pressure0.2Mpa
Operating temperature range5-45℃
Influent water turbidity<15NTU
Produced water turbidity<0.1NTU
Produced water SS≤1mg/L
Produced water SDI≤3
Operation PH Range 2-12
Bacterial virus removal rate>4log

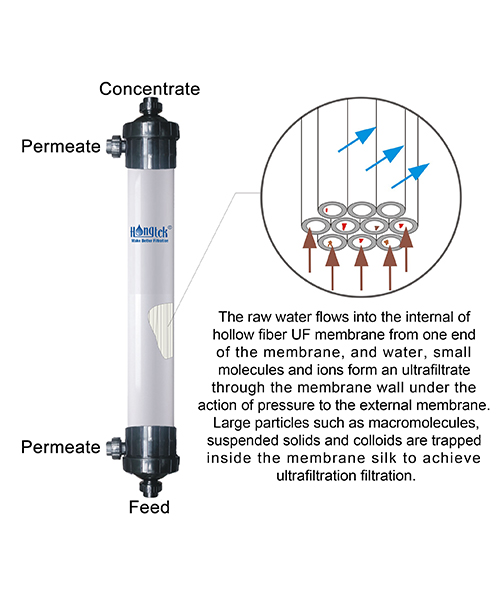

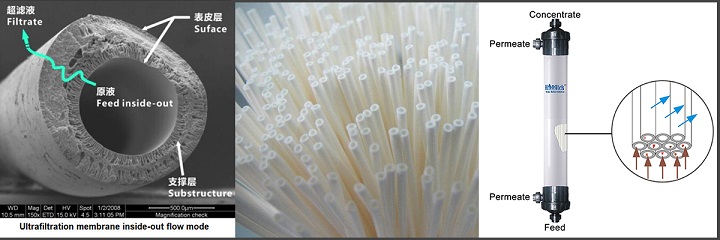

Work principle of hollow fiber PVC UF membrane


● Hollow fiber PVC membrane water flow mode is from inside to outside

● PVC UF membrane is resistant to acid and alkali and has good drug resistance

● PVC UF membrane module can be used in cross-flow filtration or dead end filtration operation

● PVC ultrafiltration membrane is low pressure operation, low energy consumption and cost saving

● Rating is 0.01 micron, particles such as macromolecules, suspended solids and colloids are trapped inside

● The impurities are trapped on the inner surface of the membrane silk, no dead angle problem and easier to be washed


Tech Support

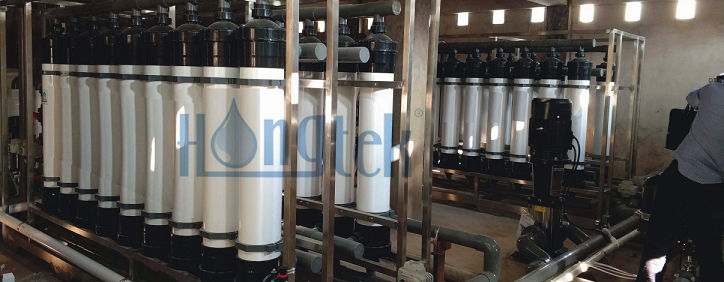

Project Case of 8" PVC Ultrafiltration Membrane


Rural drinking water reconstruction 1200m³/d

Process: Mountain Spring Water - Quartz Sand Filter - Laminated Filter - UF Membrane - Disinfection - User

Equipment parameters: UFP200 membrane module, 18pcs/group, 2 groups, 36 pieces, design operating flux 75L/m².h
