FSW Series Glass Fiber Wound Yarn Cartridge Filters
FSW Series Glass Fiber Wound Yarn Cartridge Filters FSW Series Glass Fiber Wound Yarn Cartridge Filters FSW Series Glass Fiber Wound Yarn Cartridge Filters
FSW Series Glass Fiber Wound Yarn Cartridge Filters FSW Series Glass Fiber Wound Yarn Cartridge Filters FSW Series Glass Fiber Wound Yarn Cartridge Filters

FSW Series Glass Fiber Wound Yarn Cartridge Filters

Description

FSW Series Glass Fiber Wound Yarn Cartridge Filters are improved wound yarn cartridges for micron industry liquid processing. Glass fiber wound yarn cartridges are over-strikingly winded as the normal polypropylene or bleached cotton wound yarn, constructed with denser layers inside and coarser layers outside. Superiors glass fiber wound cartridge filters possess good filtration capacity and long life, high flow rate but low pressure drop, excellent dirt holding capacity and efficiency compared to conventional string wound filter cartridges.

Specification
Filter MediaGlass Fiber
Length5", 9.75", 9.8", 10", 20", 30", 40", 50" (According to customers requirements)
Inside Diameter28mm, 30mm (Special ID can be customized)
Outside Diameter2.4"(61mm), 2.5"(63mm), 2.55"(65mm) Special OD is accepted
Filtration Rating1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 75μm, 100μm
CoreSUS304, SUS316
Gasket/O-ringSilicone, EPDM, Viton, Buna
End CapDOE, 222/Flat(SOE), 222/Fin(SOE), 226/Flat(SOE), 226/Fin(SOE)


Feature

● High temperature withstanding and good chemical compatibility

● Glass fiber wound yarn cartridges are easy to install, replace and maintain

● Glass fiber wound yarn filters have wide applications,long service life and reasonable cost

● Glass fiber wound cartridge filters have no drop,stable construction and good filtration efficiency

● Continuous strand winding geometry of wound yarn cartridges provides performance consistency for liquid filtration

● Various O-ring and end cap options of glass fiber wound cartridge filters are available to fit for different filter housings


Application
Water PurificationDilute Acids & AlkaliesPrefilter for Membranes
Oil Water SeparationElectroplating IndustryElectronics and Semiconductor
Petrochemical IndustryPower Plant Water TreatmentOrganic Acids
& Solvents Filtration


Performance

Operation Data for Glass Fiber Wound Yarn Cartridge Filters

Maximum Operating TemperatureGlass Fiber with SUS Core : 400℃
Max. Differential Pressure2.7 bar at 27 ℃(50 psi at 80℉)
1.4 bar at 60 ℃(20 psi at 140℉)
0.7 bar at 82 ℃(10 psi at 180℉)
Recommend Change out Differential Pressure1 bar (14 psi)


Tech Support
Construction of Glass Fiber Wound Yarn Cartridge Filters

● The picture is the cross-section of wound yarn cartridges

● High dirt holding capacity, high flow rate and long service time

● From outer layers to inner layers glass fiber wound yarn are loose to tight

● Honeycomb construction without using adhesives and no fine fibre drop out

● Multilayered structure and depth filtration pattern ensure good filtration efficiency

● High quality glass fiber wound yarn filters for compatibility with wide range of process fluids


Production of Glass Fiber Wound Yarn Cartridge Filters

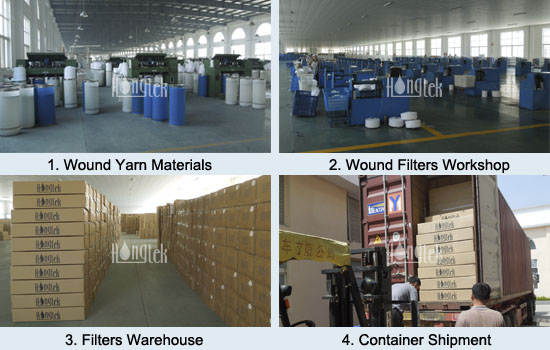

● Wound Yarn Materials: All glass fiber wound yarns are made of high quality FDA approved materials

Wound Filters Workshop: One of largest workshop of glass fiber wound yarn cartridges in China, high out put & fast delviery time

Wound Cartridges Warehouse: Scientific storage and warehouse of glass fiber wound yarn filters to the benefit of good delivery efficiency

Container Shipment: Glass fiber wound cartridge filters are convenient to be loaded into containers, safety & timely transport for the shipment


Order Information
FSWIDODMicron RatingLengthCore MaterialEnd CapGasket/O-ring

FSW Series

Glass Fiber

Wound Yarn Cartridge Filters

A = 28mmC = 61mm1 = 1μm5 = 5"S4 = SUS 304D = DOES = Silicone
5 = 5μm9.75 = 9.75"
M = 63mm10 = 10μm9.8 = 9.8"T = 222/Flat(SOE)E = EPDM
20 = 20μm10 = 10"
B = 30mm30 = 30μm20 = 20"S6 = SUS 316O = 222/Fin(SOE)V = Viton
F = 65mm50 = 50μm30 = 30"
75 = 75μm40 = 40"P = 226/Flat(SOE)U = Buna
100 = 100μm50 = 50"L = 226/Fin(SOE)

For Example:

FSW-B-M-10-40-S4-D

FSW Series Glass Fiber Wound Yarn Cartridge Filters - 30mm - 63mm - 10μm - 40" - SUS 304 - Double Open End (DOE)

Special Glass Fiber Wound Yarn Cartridge Filters can be customized, such as special ID, OD, length and end caps etc.
