How to Choose the Right Pleated Filter Cartridge for Ink Filtration?

Filtration plays an important role in ink manufacturing and processing. Fine particles, pigment agglomerates, gels and other contaminants can affect ink cleanliness, printing quality and downstream equipment. Choosing the right Pleated Filter Cartridge involves more than selecting a micron rating. Membrane material, chemical compatibility, ink viscosity, filtration efficiency and cartridge construction should all be considered.

1. Check Chemical Compatibility

Ink formulations may contain water, organic solvents, pigments, resins and additives. The filter membrane and sealing materials must be compatible with the actual ink formulation to minimize swelling, degradation, leakage and premature failure. Common membrane options include PP, PES, PVDF and PTFE.O-rings and gaskets are equally important. Their material should be selected according to the ink chemistry and operating conditions.

2. Select the Right Filtration Rating

The appropriate micron rating depends on the contaminant size, ink cleanliness requirements and downstream equipment.Coarser filtration may be suitable for pre-filtration, while finer filtration may be required for final filtration or sensitive printheads and nozzles.

It is also important to distinguish between nominal and absolute ratings. Absolute-rated filters provide more defined particle retention under specified test conditions and may be preferred for critical filtration. However, a lower micron rating does not automatically mean better filtration. An excessively fine filter can increase pressure drop and shorten filter life. The appropriate rating should be determined according to the ink formulation, particle distribution and required cleanliness level.

3. Consider Ink Viscosity and Flow Rate

Ink viscosity can vary significantly between formulations. Higher-viscosity inks generally create greater pressure drop across the filter.When selecting a Membrane Pleated Filter Cartridge, consider: Ink viscosity,Flow rate,Operating pressure,Allowable differential pressure,Required service life,Available filtration area.

Pleated cartridges provide a large filtration area in a compact size. For higher-viscosity inks, sufficient filtration area can help control pressure drop and extend cartridge service life. The membrane should be selected based on the actual ink formulation and solvent system, rather than ink type alone.

4. Look Beyond the Membrane

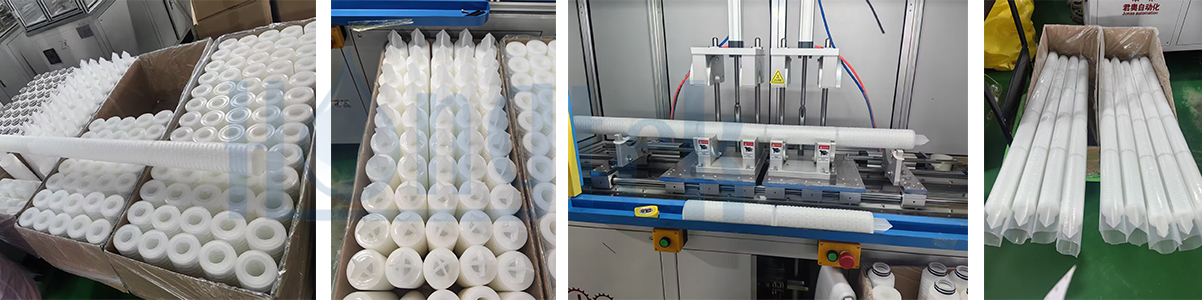

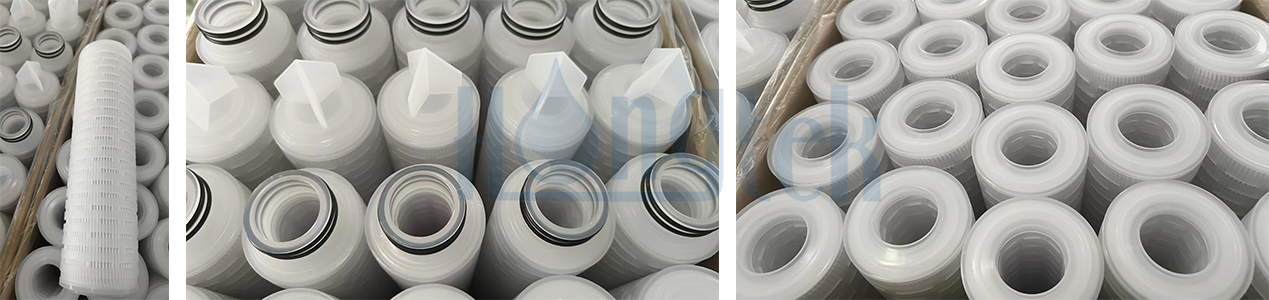

The membrane is only one part of a Pleated Filter Cartridge. The support layer, core, outer cage, end caps and bonding method can also affect filtration performance and cleanliness. For ink applications with strict cleanliness requirements, the complete cartridge should be evaluated for fiber shedding, extractables, mechanical strength and structural stability.

Low-fiber-shedding support materials can be considered where minimizing potential fiber contamination is important. Where applicable, thermal or other adhesive-free bonding methods may also help reduce potential adhesive-related contamination.

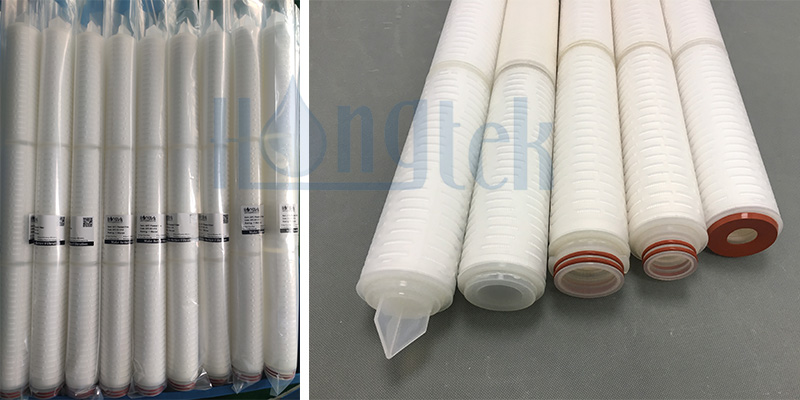

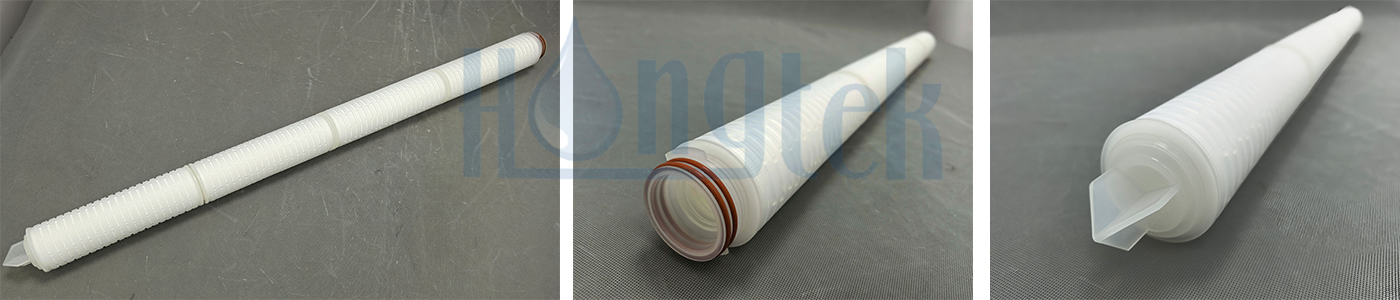

5. Match the Cartridge to the Housing

The cartridge and housing should be treated as one sealing system. Before selection, check the cartridge length, diameter, end-cap configuration, O-ring material, housing dimensions and operating pressure. Proper cartridge-to-housing matching helps ensure reliable sealing and prevents fluid bypass.

PP, PES, PVDF or PTFE: Which Should You Choose?

Need Help Selecting an Ink Filter Cartridge?

The right pleated filter cartridge depends on more than micron rating. Membrane material, ink chemistry, viscosity, flow rate, filtration area, cartridge construction and housing configuration should be evaluated together. Hongtek supplies Pleated Filter Cartridges with PP, PES, PVDF and PTFE membranes, with different cartridge configurations and filtration ratings available for industrial applications. If you can provide the ink type, viscosity, flow rate, required micron rating and cartridge dimensions, our team can help recommend a suitable filter configuration.
