How do You Filter Digital Ink for Solvent-Based & UV Inks?

In industrial inkjet printing, digital ink filtration is critical. Poor filtration causes nozzle clogging, ink breakage, skewed jetting, white spots, streaking, and uneven color. This guide explains how to filter digital ink for solvent-based ink filtration and UV-curable ink filtration using a three-stage ink filtration process.

Why is Digital Ink Filtration Important?

Printheads are expensive and sensitive. Grinding debris, pigment agglomerates, ink skin, and microgels can block nozzles or change jetting. A digital ink filter system for industrial inkjet printing removes contaminants before they reach the printhead and supports a reliable printhead protection filtration solution.

What Are the Main Digital Ink Types?

Solvent-based ink uses organic solvents; pigments agglomerate, and the system is corrosive. UV-curable ink contains photosensitive resins and reactive monomers; it forms microgels under light or high shear. Filtration must remove contaminants without causing secondary contamination or damaging ink fluidity, color, and curing performance.

How do You Filter Solvent-Based Ink?

Solvent-based ink can corrode cotton or cellulose media, causing fiber shedding and white spots. Use a solvent resistant ink filter cartridge with staged-gradient filtration. Standard workshop conditions are usually acceptable. For best filter cartridge for solvent-based ink, choose PP, PTFE, or Stainless Steel Housings.

How do You Filter UV-Curable Ink?

UV ink is prone to light-triggered polymerization. High pressure and shear can also create new gels. UV ink microgel filtration requires light shielding, low-pressure slow filtration, and accurate gel retention. Use light-proof cartridges and closed equipment under dim conditions.

What Is the Best Three-Stage Filtration Process?

A single high-precision filter clogs quickly and causes pressure fluctuations. Use three stages:

Stage 1: 10-20 μm Pre-Filtration

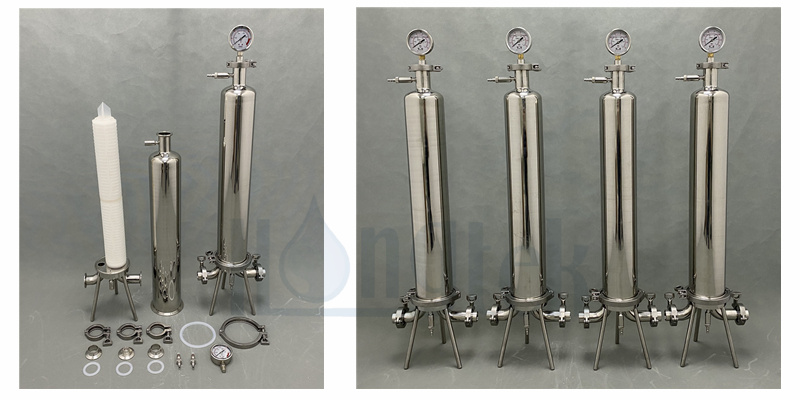

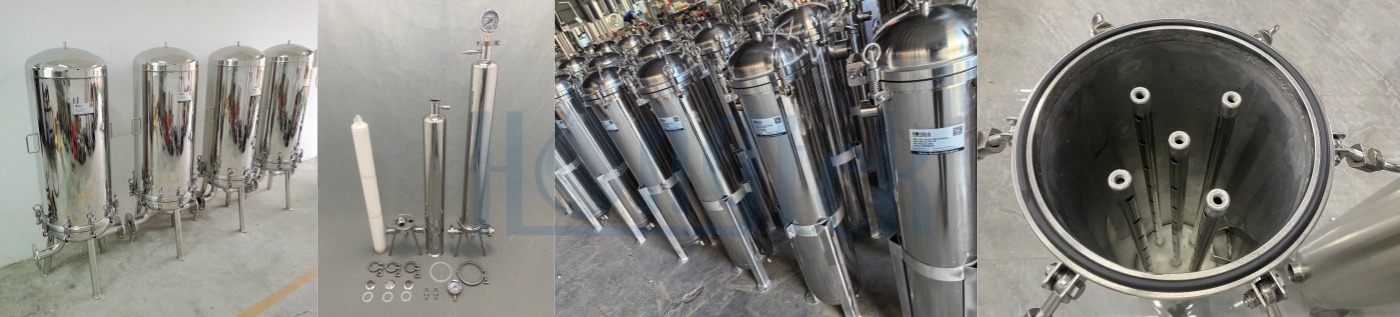

10-20 micron pre-filtration for ink traps grinding residues, ink skin, pigment agglomerates, and dust. Stainless steel housings suit bulk solvent-based filtration.

Stage 2: 3-5 μm Intermediate Filtration

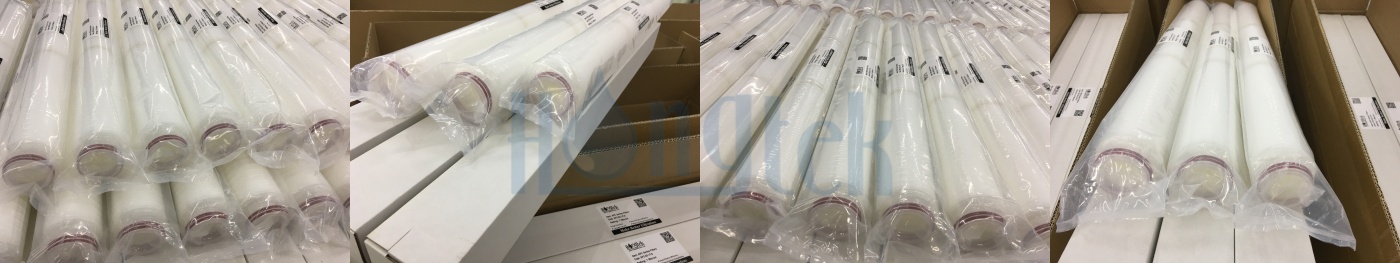

3-5 micron intermediate ink filtration captures fine suspended impurities and pigment agglomerates. PP pleated cartridges are adhesive-free and reduce secondary contamination.

Stage 3: 0.45-1 μm Final Fine Filtration

0.45-1 micron final ink filtration protects the printhead. For Ricoh, Epson, and Kyocera heads, 0.45-0.65 μm is preferred. For large-channel heads, 1 μm balances efficiency and flow.

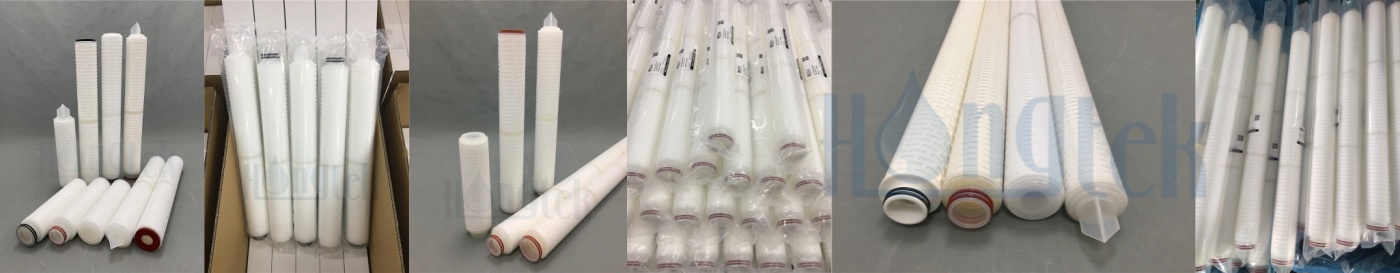

Use absolute-rated PES or PVDF Membrane Pleated Filter Cartridges. PES offers high flow and low pressure drop; PVDF offers solvent resistance and anti-aging performance.

Which Filter Cartridge Should You Choose?

Conclusion

Solvent-based ink filtration focuses on solvent resistance and gradient impurity removal. UV-curable ink filtration focuses on light shielding and microgel control. A three-stage ink filtration system stabilizes ink quality, protects printheads, improves yield, and reduces costs.
