What are the Pressure Drop and Differential Pressure of a Filter Cartridge in Industrial Filtration?

In industrial filtration settings, many managers have faced such dilemmas: the electricity cost of system operation significantly exceeds expectations, yet the root cause is difficult to pinpoint; product quality on the production line fluctuates, and traceability investigations consume substantial manpower and resources; the frequency of High Flow Filter Element replacements remains high, with maintenance costs continuously squeezing profit margins. These seemingly independent phenomena often point to a common core - neglect and misjudgment of the key operational parameters of the filtration system: "pressure drop and differential pressure".

As quantitative indicators of the pressure change when fluid passes through the filter element, pressure drop and differential pressure directly reflect the operational status of the filtration system and the performance of the filter element. Accurately understanding these parameters not only provides data support for energy consumption control and cost optimization but also serves as an essential foundation for preventing equipment failures, ensuring process stability, and achieving safe production. In modern industrial management, the scientific understanding and effective control of pressure drop and differential pressure have become an indispensable part of improving overall system efficiency and promoting lean production.

1. What Are the Pressure Drop and Differential Pressure of a Filter Cartridge?

An industrial pipeline system operates like a precisely functioning "blood circulation system", transporting various fluid media required for production. In this system, the filter element plays a critical role as a "checkpoint", similar to key nodes in blood vessels, responsible for intercepting and removing impurities from the fluid. The pressure of the fluid within the pipeline can be compared to human blood pressure, serving as the fundamental driving force for maintaining normal system operation. Meanwhile, contaminants are like cholesterol or plaque in the blood - their accumulation can obstruct the smooth flow of the fluid.

Within this analogy, the concepts of pressure drop and differential pressure become intuitive and easy to understand. When fluid passes through the filter element as a "checkpoint" the interception of contaminants by the filtering medium inevitably creates resistance. The pressure loss caused by this resistance is essentially the "toll" - the fundamental manifestation of pressure drop and differential pressure. From an engineering perspective, these two terms are distinct yet closely related:

● Differential pressure is a state parameter, specifically referring to the pressure difference between the inlet and outlet of the Filter Cartridges. It reflects the resistance state of the filtering component at a specific moment.

● Pressure drop, on the other hand, emphasizes the process and specific value of pressure reduction, focusing on the dynamic characteristics of pressure changes as fluid passes through the filter element.

In practical industrial filtration applications and engineering discussions, these two terms are often used interchangeably. Their core physical meaning is uniformly represented by the symbol ΔP. This parameter not only directly indicates the degree of clogging in the filter element but also serves as a fundamental metric for evaluating the operational status of the entire filtration system. It provides critical data support for system maintenance management and performance optimization.

2. Pressure Drop/Differential Pressure: The "Health Gauge" of Industrial Filtration Systems

This metric directly reflects the health status of the filter element: the initial pressure drop serves as a "health report" for a new filter element, indicating its inherent flow resistance; the operating pressure drop gradually increases with contaminant accumulation, akin to the progression of a chronic condition; the final pressure drop marks the "end point" of the filter element's service life - once the set value is reached, replacement is mandatory to prevent acute system failures.

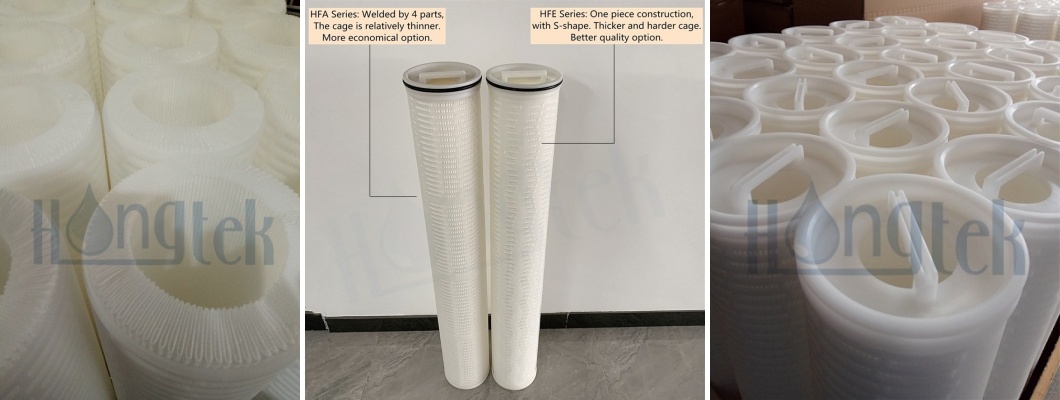

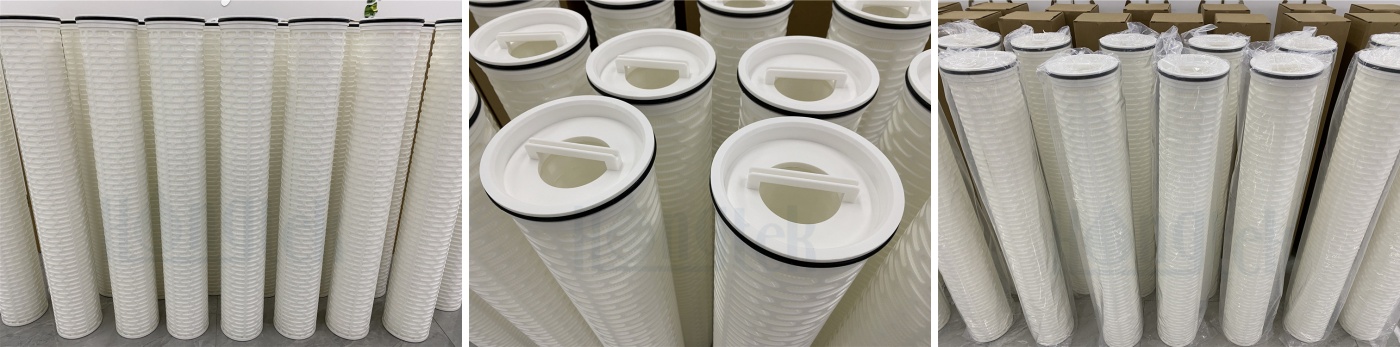

Secondly, it is also a hidden driver of energy costs, as the system's baseline energy consumption is directly linked to the initial pressure drop of the filter element. Taking Hongtek's HFA Series Pleated High Flow Filter Cartridges as an example, under the same precision conditions, the 40-inch high-flow pleated filter with its inner skeleton-free design achieves a 15%-20% reduction in initial pressure drop compared to traditional inner skeleton structures, thanks to its smoother flow path design. This helps lower electricity consumption from the very first day of operation.

Furthermore, it also indicates production safety and quality during operation. When the differential pressure continuously rises, the structural integrity of the filter element is put to the test. Traditional processes, such as welding four 10-inch filter elements into a 40-inch one, may have weld points that become weak links under pressure fluctuations. In contrast, products like Hongtek's HFE Series Pleated High Flow Cartridge Filters, with their integrally molded robust support, and the HFM Series Pleated High Flow Cartridge Filters monolithic mixed fiberglass reinforced PP outer skeleton, can withstand higher final pressure drops. This effectively prevents filter media collapse or structural failure, eliminating contaminant leakage and providing stronger protection for downstream equipment and product quality.

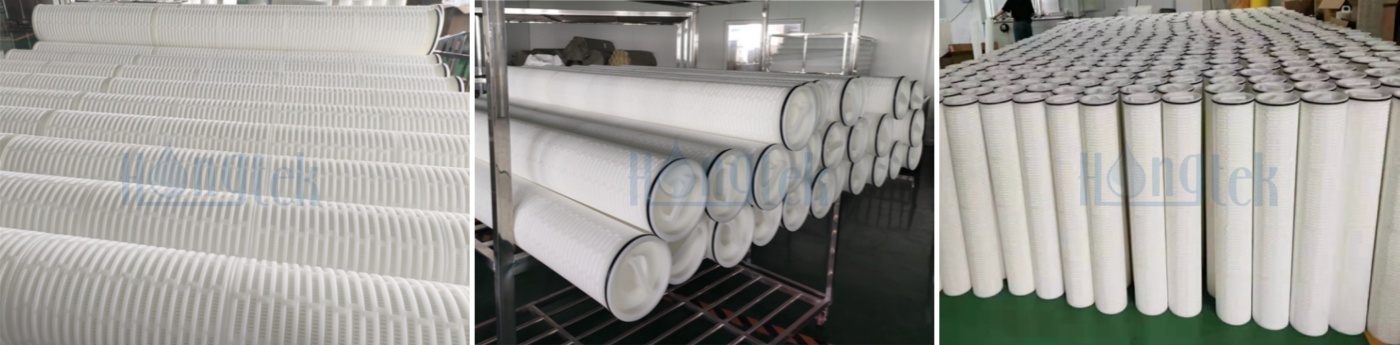

In summary, pressure drop/differential pressure data dictates the service life and replacement costs of filter elements. The lifespan of a filter element depends on its contaminant retention capacity. All of Hongtek's 40-Inch High Flow Pleated Filter Elements significantly expand the dirt-holding capacity by increasing the effective filtration area, prolonging the plateau period of slow pressure drop rise. This means more contaminants can be intercepted before reaching the final pressure drop, reducing replacement frequency and directly lowering the filter element consumption cost per production cycle.

3. How to Manage Pressure Drop/Differential Pressure for Smart Operations?

First, precise monitoring is essential. Installing high-precision differential pressure gauges or sensors at the filter inlet and outlet is the prerequisite for obtaining accurate data. Second, scientific setting is crucial: the initial pressure drop should serve as the performance baseline, with abnormally high values potentially indicating selection or installation issues; the final pressure drop should be set based on the equipment manufacturer's recommendations, considering the system's pressure limits and energy consumption curves. Finally, trend analysis is key: systematically recording the pressure drop curve over time/flow rate. A rapid spike in pressure drop often signals process abnormalities, while a gradual increase indicates normal clogging.

This enables a shift from "reactive response" to "proactive prediction" in maintenance operations. For more demanding applications, consider PP Filter Elements with mixed glass fiber material paired with a reinforced outer skeleton design. Such filter elements maintain deep filtration precision while addressing potential flexibility issues of pure glass fiber elements through enhanced structure, achieving an optimized balance among dirt holding capacity, strength, and filtration efficiency.

4. Conclusion

In industrial filtration systems, pressure drop/differential pressure is far more than a simple reading - it serves as a pivotal indicator linking equipment status, operational costs, product quality, and production safety. We recommend starting with installing a reliable differential pressure gauge and establishing a systematic pressure drop log to take the first step toward refined and intelligent operations. Accurately understanding and scientifically managing pressure drop/differential pressure will not only bring "tangible" benefits to enterprises but also instill an "intangible" layer of safety assurance.
