How to Select a Sanitary Cartridge Filter Housing?

Selecting the right Sanitary Stainless Steel Cartridge Filter Housing is essential for efficient filtration, hygienic operation, and reliable performance. The housing should match the fluid, flow rate, cartridge, operating conditions, and cleaning requirements. The right configuration helps maintain stable flow, reduce pressure drop, extend cartridge life, and minimize contamination risks.

1. Define Your Filtration Requirements

Check fluid chemistry, viscosity, temperature, contaminants & target filtration grade. High viscosity media (syrup, oil) need a larger filtration area to control pressure drop. However, actual flow capacity depends on the filter media, micron rating, fluid viscosity, temperature, and allowable pressure drop. Therefore, the manufacturer's cartridge flow-rate data should be used for final sizing. For high-flow applications, multiple cartridges can be installed in parallel to increase the total filtration area and maintain stable system performance.

2. Select the Cartridge and Filtration Area

Sanitary liquid filtration commonly uses pleated cartridge filters for their large filtration area and stable flow performance. Key selection points include cartridge size, end connection, gasket material, micron rating and fluid compatibility.

Filter Cartridge Integrated Comparison Table

Selection reference: Final choice shall be determined by filtration level, flow rate, pressure drop and expected cartridge

3. Choose Single or Multi-Cartridge Housing

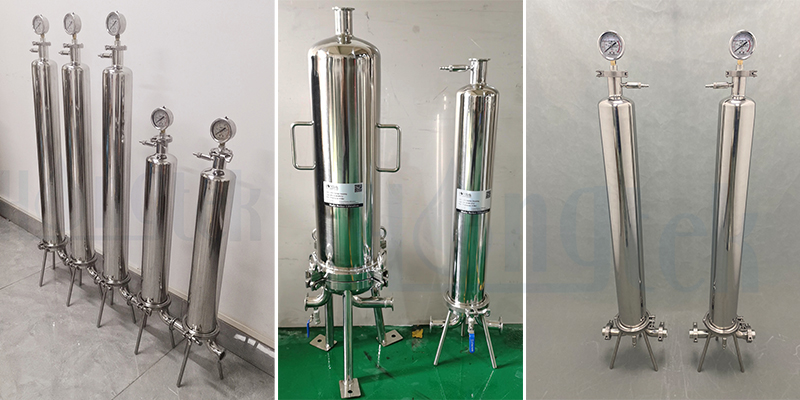

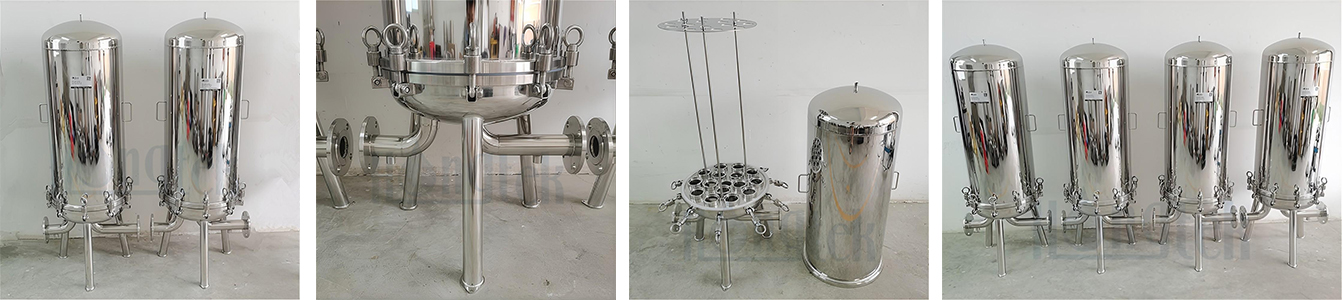

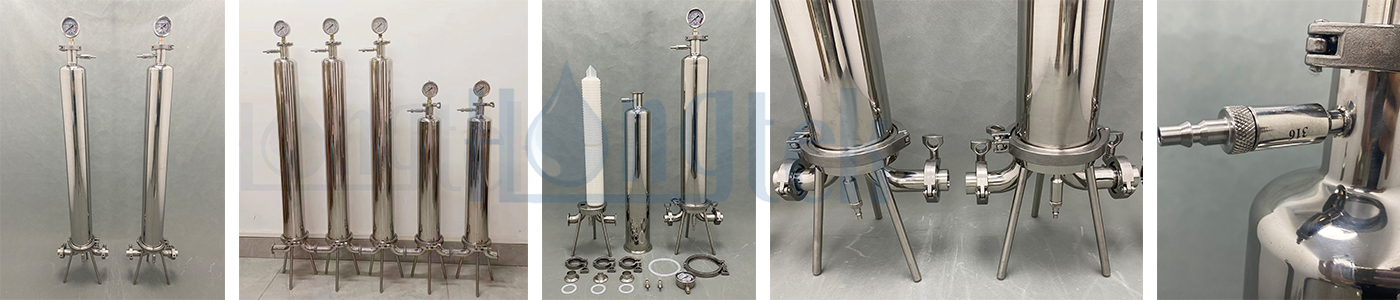

When evaluating single vs. multi-cartridge sanitary housing, consider the required flow rate, filtration area, and available installation space. Single-cartridge housings are suitable for small production lines, pilot systems, and space-limited applications. Our UPH Series Sanitary Cartridge Filter Housing accommodates 10", 20", 30", or 40" cartridges in a compact design, while the MPH Series Sanitary Cartridge Filter Housing provides multiple cartridge configurations for larger flow rates and greater filtration capacity. In general, higher flow rates require a larger filtration area, achieved through longer or additional cartridges.

4. Choose the Housing Material and Sanitary Configuration

Select housing material and sanitary construction according to fluid chemistry, corrosion demand, cleaning regime and project specifications.

Housing Material & Sanitary Configuration Consolidated Table

5. Verify the Complete Filtration System

Before finalizing selection, verify compatibility among housing, cartridges and process conditions. Check flow rate, pressure temperature, cartridge specs, media, micron rating, materials, pressure drop and sterilization requirements. Watch differential pressure: insufficient filtration area raises pressure drop and shortens cartridge life. For pharma use, confirm hygienic design, cleanability and compliance. Proper system matching delivers stable performance and easier maintenance.
