How to Choose the Surface Treatment Types of Stainless Steel Filter Housing?

In industrial applications, you may often encounter a puzzling phenomenon: among filters all nominally labeled "stainless steel" some quickly develop rust, corrosion, or even perforations in similarly harsh environments, while others remain stable and as good as new for a long time. This difference often does not stem from the material itself but lies in a crucial yet easily overlooked step - surface treatment. Surface treatment is by no means a simple "cosmetic project"; it directly determines the filter's service life, stability of filtration accuracy, long-term operating costs, and the high-end fields it can be applied to. This article provides a clear and practical selection guide to help you cut through the confusion and make the most economical and reliable choice for your equipment.

1. The Core Value of Surface Treatment - Three Key Functions Beyond Aesthetics

The primary mission of surface treatment is to significantly enhance the corrosion resistance of the Filter Housing. An excellent surface treatment process forms a dense and stable protective layer on the housing surface, effectively resisting corrosion from water, chemicals, salt spray, humid air, and other media, ensuring the long-term stable operation of the filter in harsh environments. Secondly, it notably improves the mechanical properties of the housing by increasing surface hardness and wear resistance, thereby reducing scratches and abrasions that may occur during installation, transportation, and daily use. Finally, it serves as the foundation for meeting specific process requirements. A smooth and dense surface is less prone to contaminant adhesion, making it easy to clean and sterilize - this is crucial for industries with extremely high cleanliness standards, such as food and pharmaceuticals. At the same time, a smooth surface also ensures better sealing, fundamentally preventing the risk of leakage.

2. In-depth Analysis of Mainstream Processes

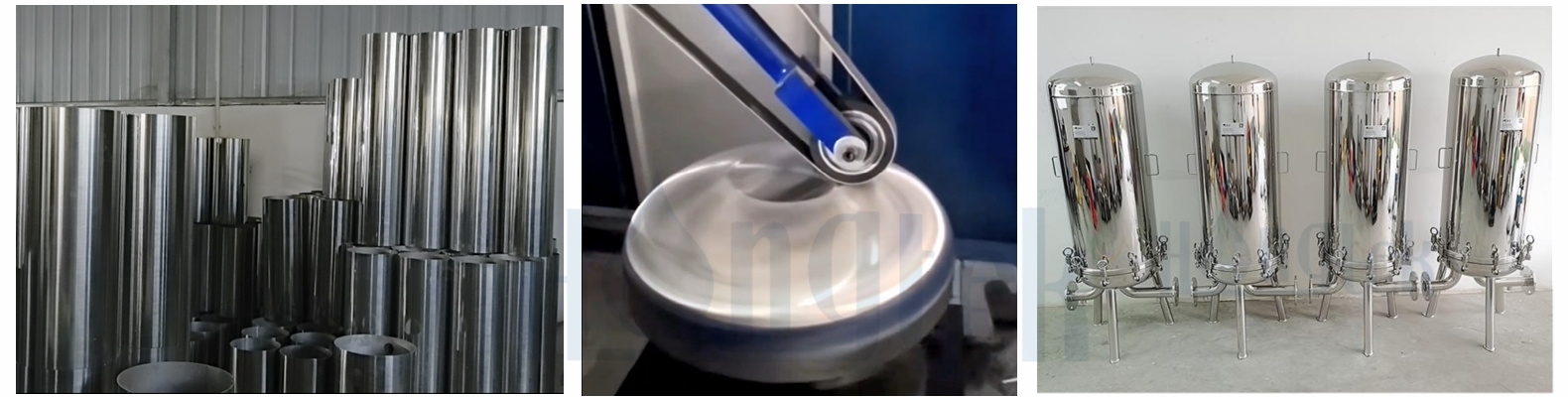

First, let's discuss mechanical polishing. This process achieves a mirror-smooth surface through physical cutting methods. By gradually grinding the stainless steel surface using physical means (such as grinding wheels and abrasives), microscopic protrusions are eliminated to ultimately achieve a mirror finish. This technique relies on mechanical kinetic energy rather than chemical reactions, so it has minimal impact on the base material composition. The process involves three stages: rough grinding (to remove scratches), medium grinding (to refine texture), and fine grinding (for mirror finishing). Stainless steel filters treated with mechanical polishing boast an exquisite appearance, excellent flow properties, and superior cleanliness. However, the improvement in corrosion resistance is relatively limited, and the cost is relatively high. This makes them more suitable for display equipment or food and daily chemical processing equipment where high aesthetic and cleanliness standards are required.

Hongtek Stainless Steel Filter Housing can be your preferred solution. For applications requiring high cleanliness and exceptional appearance, we provide professional mechanical polishing services. With an experienced production team and stringent process controls, we subject every filter housing to multi-stage fine grinding and mirror finishing. This ensures a flawlessly smooth surface and evenly finished welds, not only effectively reducing the risk of contaminant adhesion but also endowing the equipment with lasting aesthetics and durability. It is a reliable choice for food, daily chemical, and display equipment.

Next is electrochemical polishing, which operates on the principle of anodic dissolution. It selectively removes microscopic protrusions in an electrolyte (such as an acidic solution containing FeCl₃ and HCl), achieving a truly seamless, uniform mirror finish and forming a consistent chromium-rich passivation layer (Cr₂O₃). This layer is dense and firmly bonded to the substrate, enhancing corrosion resistance by 3 - 5 times. The process results in an extremely smooth surface that resists material buildup, with a surface roughness value achievable at Ra = 0.5 - 10 μm.

For instance, Hongtek's MPH Series Stainless Steel Sanitary Multi Cartridge Filter Housing features an internal mirror-polished surface (roughness Ra ≤ 0.3 μm). Meticulously polished and free of dead corners, this sanitary filter housing is compact, lightweight, and easy to use and clean. It offers a large filtration area, low clogging rate, high filtration speed, as well as excellent thermal dilution stability and chemical stability. Stainless steel sanitary housings are widely used in precision filtration and sterilization processes.

Although the initial cost and process requirements are relatively high, electrochemical polishing is undoubtedly the preferred choice for industries such as biopharmaceuticals and semiconductors, where ultra-high purity and superior corrosion resistance are critical.

On the other hand, sandblasting creates a uniform matte surface by projecting abrasive particles. Its primary value lies in enhancing aesthetics and increasing surface area to improve the adhesion of subsequent coatings (such as spray painting). However, the rough texture is prone to trapping contaminants, and corrosion resistance can only be ensured when combined with follow-up treatments. Sandblasting not only imparts a unique matte finish and fine texture to the filter housing but, more importantly, forms a uniformly micro-roughened layer through high-speed impact, significantly enhancing the adhesion between coatings and the substrate. This provides a solid foundation for subsequent painting or film application processes. Additionally, this treatment effectively masks minor scratches incurred during transportation and installation, making it particularly suitable for outdoor or industrial environments requiring frequent maintenance and disassembly.

For this specific process, Hongtek's Stainless Steel Filter Housing also offer a mature and reliable solution. Our sandblasting process strictly controls the type of abrasive, particle size, and blasting parameters to ensure a consistent and uniform surface texture on every filter housing. This provides an ideal foundation for enhanced adhesion in subsequent painting processes.

3. Decision-Making Factors to Identify the Optimal Solution

With multiple surface treatment options available, how do you make the right choice? Consider these four critical dimensions for a comprehensive evaluation.

Application Environment

● Ultra-clean or sterile rooms: Electrochemical polishing is also the preferred choice.

● High-humidity, coastal, or chemical environments: Prioritize electrochemical polishing.

Media Characteristics

● Contact with strong acids, alkalis, or chlorides: Opt for the superior corrosion resistance of electrochemical polishing.

● Handling food or pharmaceuticals: Choose processes meeting hygiene standards, such as electrochemical or mechanical polishing.

Cleaning & Sterilization Needs

● Aesthetic & Functional Requirements

● Easy-to-clean mirror finish: Mechanical or electrochemical polishing.

● Planned subsequent coating or preference for a matte appearance: Start with sandblasting.

● Frequent cleaning or CIP/SIP requirements: The seamless, smooth surface achieved by electrochemical polishing is ideal.

If you remain unsure which surface treatment best suits your specific operating conditions, our technical experts are ready to assist. We offer complimentary operational analysis and selection advice, leveraging our expertise to support your decisions and ensure optimal filter performance throughout its lifecycle.
