How to Choose the Right Stainless Steel Filter Housing?

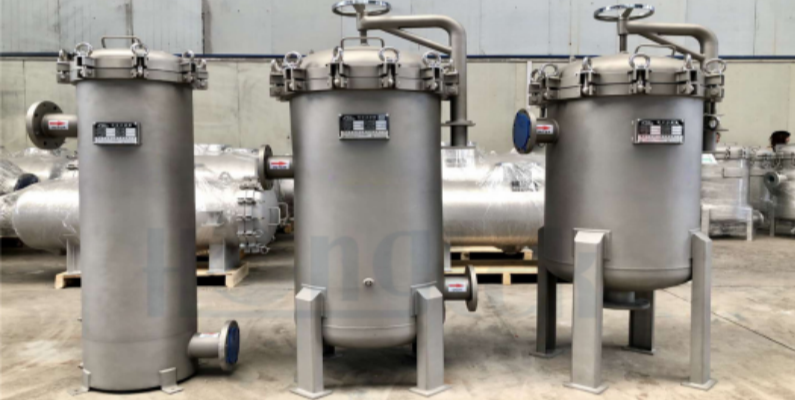

Stainless Steel Filter Housings have become the preferred choice for numerous industries due to their excellent corrosion resistance, high-strength structure, and long service life. Whether in precision filtration for food and beverages, high-purity water preparation in the pharmaceutical industry, or industrial circulating water systems, municipal water supply, and chemical production, they quietly undertake the core mission of intercepting impurities, protecting downstream equipment, and ensuring water quality safety. A suitable set of stainless steel filters not only enhances the operational efficiency of the entire system but also significantly reduces long-term operation and maintenance costs.

Mastering Filter Cartridge Selection: A 5-Dimensional Guide

1. Filter Cartridge Selection: The Balance of Flow Rate, Space and Cost

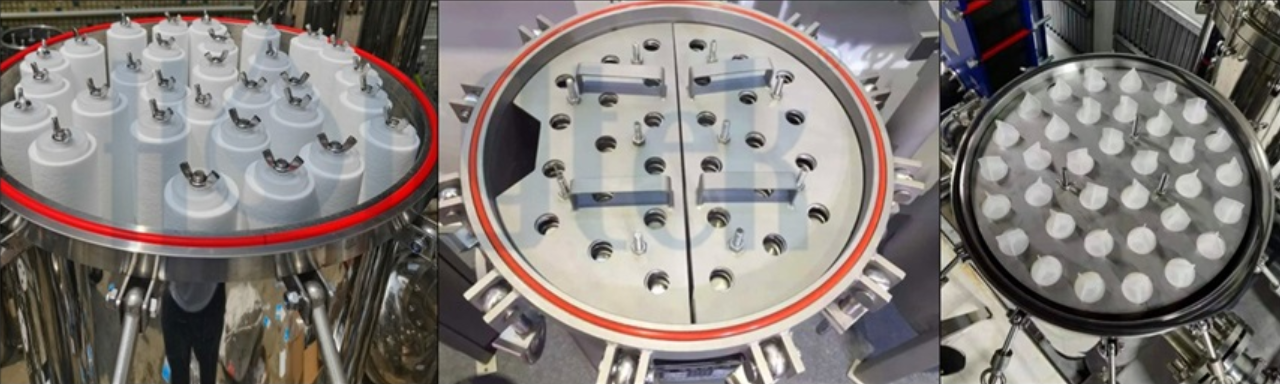

The Filter Cartridge is the heart of the filter, and choosing the right type directly determines the filtration performance. Matching the filter specification based on flow rate requirements is a key starting point. For low-flow scenarios, such as standalone medical equipment water treatment units, the system's processing capacity is limited, and installation space is often constrained. In such cases, the ideal choice is to use small-diameter cartridges, like 2.5-inch (≈63mm) outer diameter (OD) cartridges or 2.75-inch (≈69mm) OD mini-pleated cartridges. Hongtek's MCH Series Stainless Steel Multi Cartridge Filter Housing is specifically designed for such applications. It's perfectly meeting the core demand for "cost-effectiveness and compactness" in small-scale applications.

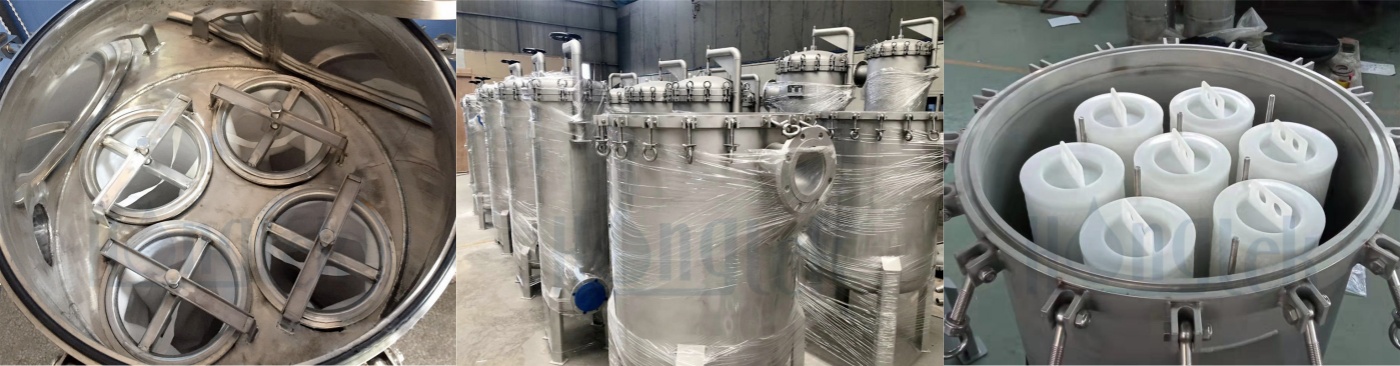

Conversely, when dealing with large-scale circulating water systems, pre-treatment for main factory water intakes, or protective filtration for central water supply systems, high flow rates and prolonged operation times pose significant challenges to the filter's processing capacity and dirt-holding capacity. Here, opting for 6-inch (≈152mm) OD high-flow pleated cartridges or filter bags becomes advantageous. Their larger diameter translates to a single cartridge having a filtration area far exceeding that of smaller cartridges. Corresponding housings, such as Hongtek's cartridge-type: BCH Series Stainless Steel Filter Housing or bag-type: MFH Series Stainless Steel Filter Housing, are suitable choices. These housings can easily handle high flow rates, effectively reduce system pressure drop, and capture more contaminants, thereby significantly extending the service life per change-out.

Finally, a lifecycle cost analysis is essential. The initial purchase price is just the tip of the iceberg. It's vital to calculate the replacement frequency, unit cost of cartridges, and labor costs associated with downtime for changes. Sometimes, a cartridge type with a slightly higher initial investment but a much longer replacement cycle proves to be more economical in the long run.

2. Access Method: The Choice Between Sealing, Pressure and Maintenance Convenience

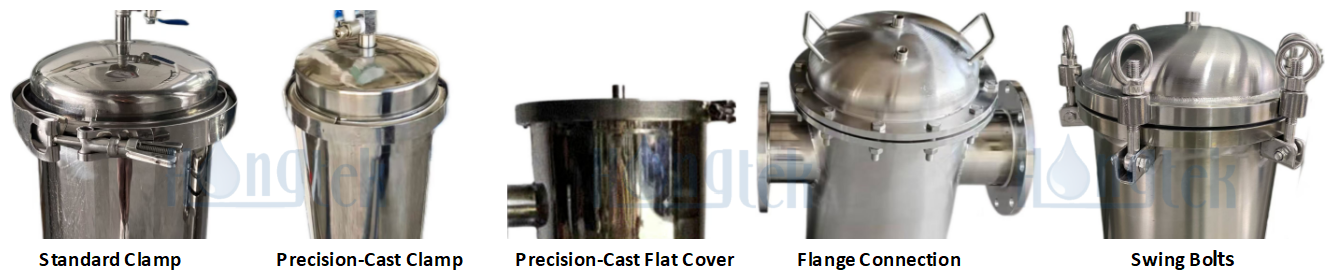

Different opening mechanisms are suitable for different pressure ratings and operational preferences. ① Standard Clamp: Features quick opening and closing with no special tools required, making it ideal for applications where frequent cartridge cleaning or replacement is necessary. ② Precision-Cast Clamp / Precision-Cast Flat Cover: Utilizes precision casting technology for superior sealing performance and higher pressure resistance, suitable for high-pressure piping systems. ③ Flange Connection: Secured with bolts, offering excellent sealing and serving as the standard for large-scale, high-pressure fixed piping systems, providing the highest reliability. ④ Swing Bolts: Equipped with lifting lugs on the top cover of large or heavy-duty filters, enabling the use of lifting equipment for safe cover removal during maintenance.

3. Inlet/Outlet Ports: Seamless Integration with Piping Systems

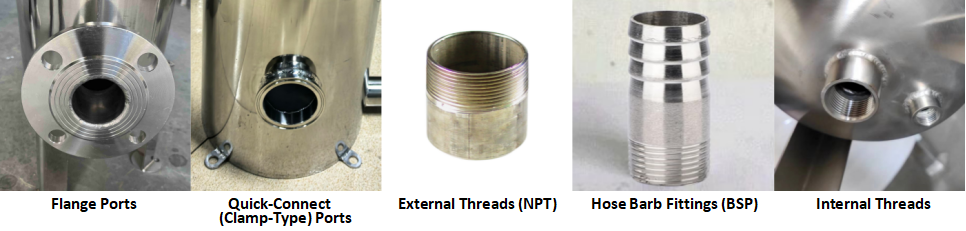

Connection ports serve as the bridge between the filter and the system; mismatched fittings can lead to leaks or installation difficulties. Common connection types include: ① Flange Ports: Standard industrial fittings offering high connection strength and excellent sealing performance. ② Quick-Connect (Clamp-Type) Ports: Enable rapid installation and removal, facilitating easy maintenance. ③ Hose Barb Hose Barb Fittings / External Threads (NPT/BSP): Commonly used in small to medium flow applications or equipment integration, providing flexible connectivity. ④ Internal Threads: For applications with small to medium flow rates and low to medium pressure, this interface design allows the filter to maintain a compact and streamlined profile. It is particularly well-suited for installations inside equipment or within spatially constrained piping systems.

4. Base Mounting Options: Balancing Stability and Flexibility

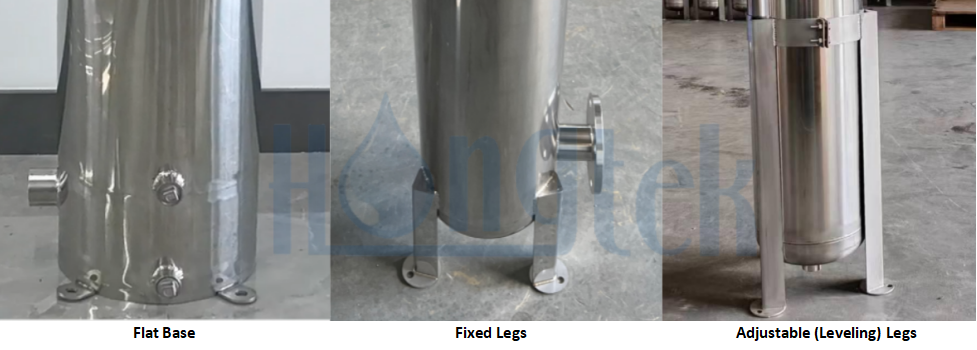

The base design is critical for equipment stability and adaptability to installation environments. ① Flat Base: Designed to rest directly on the floor or a platform, offering excellent stability. Ideal for permanent installations in fixed locations. ② Fixed Legs: Elevate the filter to a specific height, providing convenient access for bottom piping connections or drain port inspection. Best suited for stationary setups. ③ Adjustable (Leveling) Legs: Feature legs with adjustable height, allowing the filter to be leveled on uneven surfaces. Particularly useful during initial commissioning or in scenarios where occasional repositioning of the equipment is required.

5. Material Grade: SS 304, SS 316 or Carbon Steel?

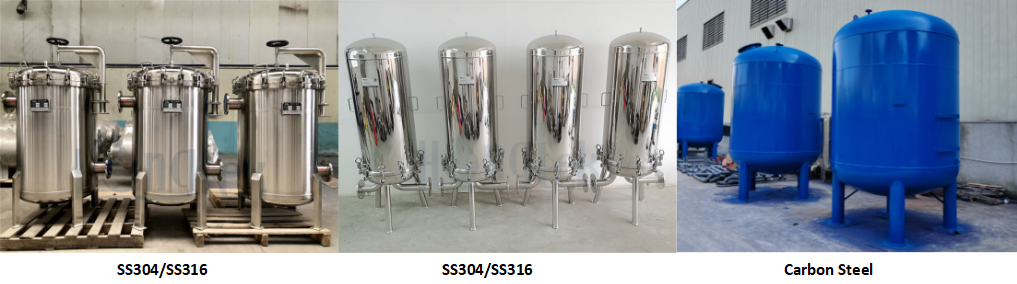

The choice of material fundamentally determines the filter's corrosion resistance and its suitability for specific applications. SUS304 Stainless Steel: A versatile austenitic stainless steel offering good corrosion resistance and workability. It meets the requirements for most standard water treatment applications (such as municipal water or cooling), representing a cost-effective option. SS 316 Stainless Steel: With the addition of molybdenum compared to SS 304, it demonstrates significantly enhanced resistance to pitting and crevice corrosion caused by chloride ions. Suitable for coastal environments, seawater desalination, chemical, or water with high chloride content, providing reliable performance in more demanding conditions. Carbon Steel: The most cost-effective option, but highly prone to rust. Typically used only for filtering non-corrosive media (such as air or oils), and requires strict anti-corrosion coating treatment (e.g., epoxy resin or paint) on both internal and external surfaces. Generally not recommended for water treatment applications.

Conclusion: One Precise Investment, Long-Term Returns

Selecting the right stainless steel filter is far more than a simple model comparison - it is a systematic engineering task that requires comprehensive consideration of process requirements, on-site conditions, operational costs, and long-term planning. Remember: the most expensive option may not be the most suitable, and the cheapest one often comes with hidden costs. True "one-step optimization" means ensuring every investment delivers value and every piece of equipment operates reliably for years to come. When you find yourself uncertain about the best choice for your specific working conditions, feel free to reach out to the Hongtek Professional Team. Our experts will analyze your operational environment and requirements to help you develop a customized selection plan.
