Compact Size and High Flow: The Engineering Logic of Pleated Design

In filtration, a seemingly contradictory demand persists: users want cartridges compact for easy installation, yet powerful enough for growing line capacities. Traditional cartridges force a trade-off - larger size for higher flow, or lower flow to save space. High-flow pleated cartridges offer an elegant solution that delivers both.

1. Flat Surface Not Enough? Fold It

Traditional cartridges have limited filtration area based on surface projection. Pleated design folds a flat sheet like an accordion, multiplying the effective area within the same housing. For the same footprint, actual area increases several times over. More area naturally means higher flow capacity.

2. Pleat Density and Depth

Pleating is not simply folding material randomly. Pleat count, height, and spacing each affect performance and fluid dynamics. Denser pleats provide more area but may restrict flow channels. Deeper pleats offer more contaminant space but may create stress points. Quality designs balance these factors for optimal results.

3. Inside-Out Flow Design

HFD Series Pleated High Flow Filter Cartridge typically use an inside-to-outside flow path. Fluid enters from the interior and flows radially outward through the media. Flow velocity naturally decreases along the radial path, distributing particles evenly. This approach prevents surface clogging and extends cartridge service life effectively.

4. End Caps and Seals: Every Drop Must Pass Through

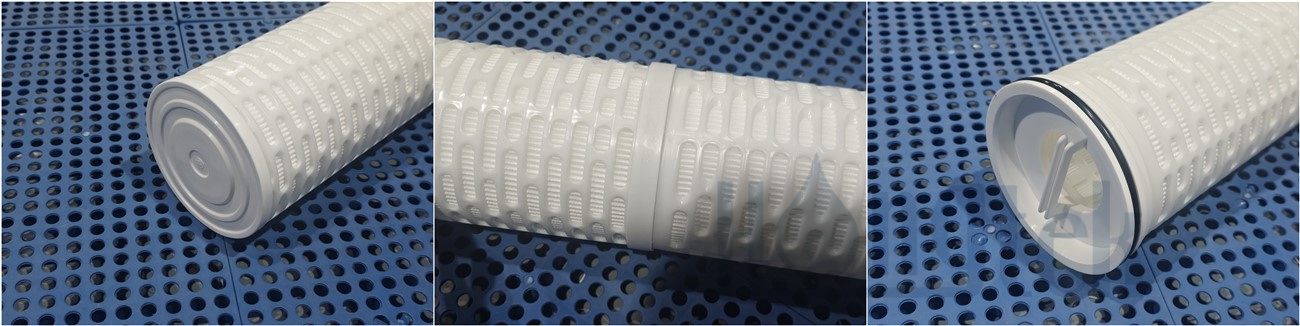

Even the largest pleated area is useless if fluid bypasses the media. Thermal-bonded end caps fuse seamlessly with the media, eliminating adhesive failure risks. Built-in seals ensure reliable sealing between cartridge and housing. All-polypropylene construction avoids corrosion and leaching issues completely.

5. Flow Path Optimization

The fluid path into and out of the HFG Series Pleated High Flow Filter Cartridge significantly affects flow performance. Inlet guides, internal distribution, and outlet designs are optimized through fluid dynamics simulation. Smoother paths mean lower pressure drop, which translates to higher throughput. This creates a virtuous cycle for more compact system designs.

6. The Answer to "Compact Size, High Flow"

The compact size and high flow are not achieved by any single technology. They result from a combination of pleated structure, depth filtration, inside-out flow, sealing, and flow optimization. Every pleat contributes to flow capacity, every seal ensures reliability. This demonstrates how pleated design achieves more with less.
