Filter Cartridges: Depth Filtration vs. Surface Filtration

When buying filter cartridges, designing filtration systems, or checking product specifications and filter plans, many people choose filters blindly because they mix up these two filtration methods, resulting in poor performance. Only by understanding the working principles, key differences, advantages, and suitable applications of depth filtration and surface filtration can you select the right filter cartridges based on water quality, working conditions, flow rate, and accuracy requirements, making your filtration system run more stably, efficiently, and reliably.

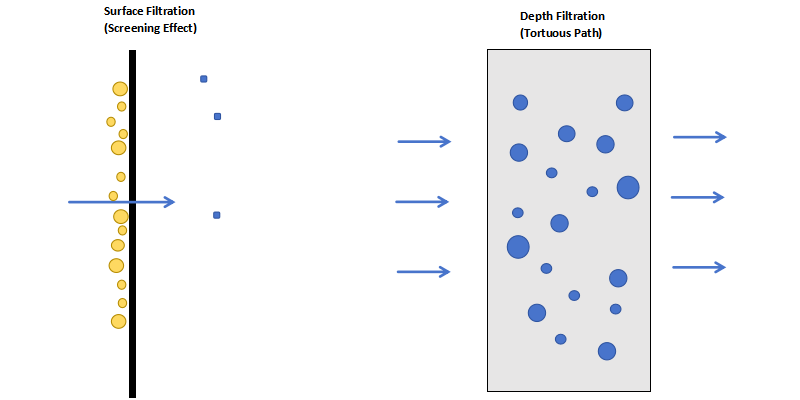

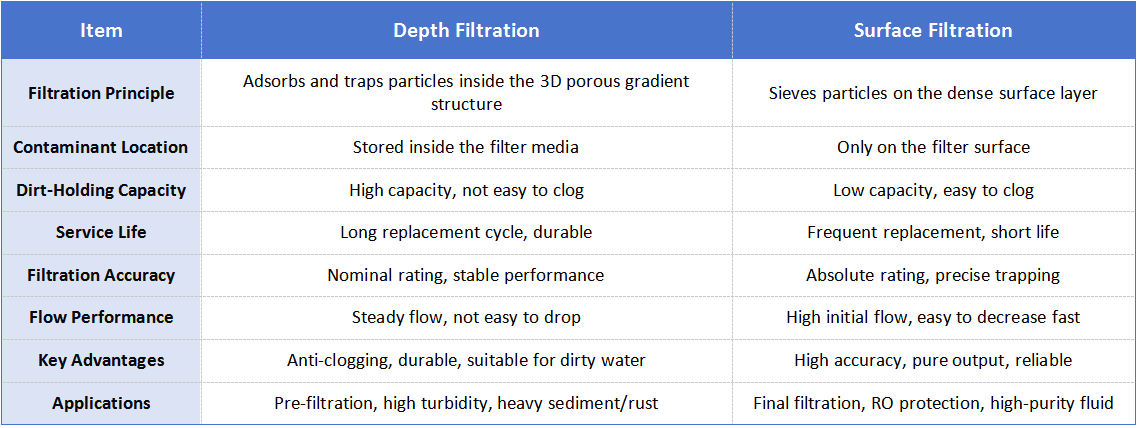

1. Depth Filtration vs. Surface Filtration

Depth filtration uses a porous, gradient structure inside the filter media. Fluid flows into the filter, and particles are adsorbed, trapped, and stored throughout the entire thickness of the media - not just on the surface. Advantages: ① High dirt-holding capacity, resistant to clogging; ② Longer service life and stable flow rate; ③ Reliable performance for high-purity applications; ④ Strong resistance to pollution, ideal for dirty water.

Surface Filtration also called screen filtration, surface filtration uses a dense, uniform microporous layer on the filter surface. Like a sieve, it traps particles larger than the pore size on the surface. Particles do not enter the media but form a filter cake on top. Advantages: ① High and stable filtration accuracy; Easy to check clogging; ② High initial flow rate; ③ Disadvantages; Low dirt-holding capacity; ④ Prone to quick clogging; ⑤Shorter service life.

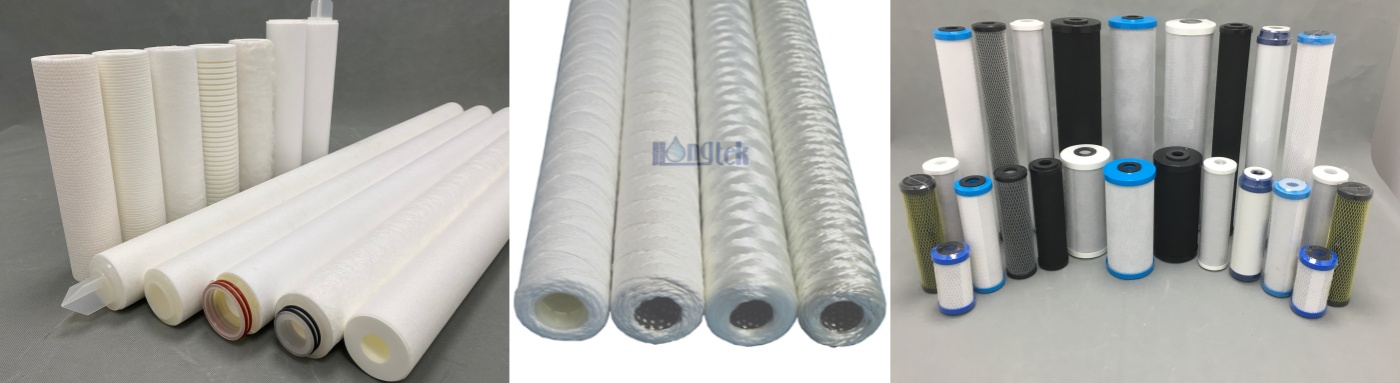

2. Which Filter Cartridges Use Depth Filtration?

① Filters that trap and store particles inside a 3D porous gradient structure are depth filters. They hold more dirt, clog less, and last longer. Common types:

② String-wound Filter Cartridges. Made with precision winding to form a gradient pore structure, with strong dirt-holding capacity. We offer PP, fiberglass, and absorbent cotton versions, with different inner skeletons to match working conditions.

③ Activated Carbon Filters Including activated carbon fiber and sintered activated carbon, they remove particles, residual chlorine, color, and odor. Granular Activated Carbon Filters also provide deep adsorption and filtration.

Depth filters are the best choice for pre-treatment in high-rust, high-sediment water sources, protecting sensitive rear-end equipment.

④ PP Melt-blown Filter Cartridges. The most widely used pre-depth filter. It has a porous fiber structure that effectively removes sand, rust, and suspended solids. Our PP melt-blown filters come with various surface treatments: smooth, grooved, long-fiber, orange-peel, and dotted surfaces, suitable for municipal water, industrial pre-filtration, household water purification, and food & beverage pre-filtration.

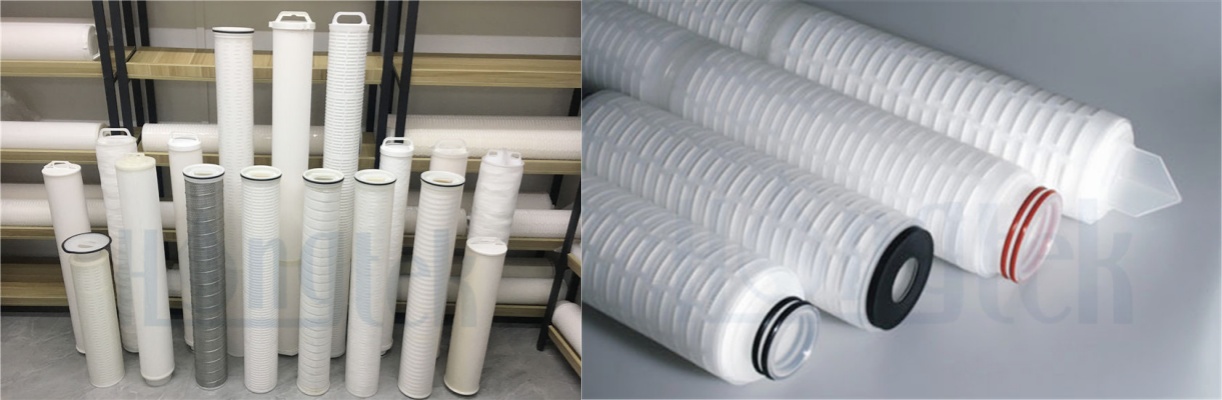

3. Which Filter Cartridges Use Surface Filtration?

Filters that trap particles on a dense, uniform surface layer using sieving are surface filters. They provide high accuracy, stable performance, and reliable protection. Common types:

① Standard Pleated Filters. With thin, precise filter membranes, they provide stable, accurate particle removal. We offer multiple accuracy ratings, suitable for chemical, paint, drinking water, and pharmaceutical applications.

② High-Flow Pleated Filters. A typical industrial surface filter with a large effective filtration area, low pressure drop, and high precision. Our high-flow pleated filters use high-quality composite membranes, widely used in RO pre-filtration, circulating water, and electronic ultra-pure water systems.

4. Conclusion

In short, neither filtration type is inherently better—they are for different applications. For stable, high-performance water treatment systems, the best design is:Depth filtration for pre-treatment + Surface filtration for final fine filtration. This combination uses the high dirt-holding and long life of depth filters, plus the high accuracy and clean effluent of surface filters, delivering reliable, long-lasting, and high-quality filtration.
