How Do High Flow Pleated Filters Achieve Compact Size & High Flow?

In industrial filtration, users demand High Flow Pleated Filter Cartridges that are compact for easy installation yet powerful enough for growing line capacities. Traditional cartridges force a trade-off - larger size for higher flow, or lower flow to save space. So, how do high flow pleated filter cartridges solve this seemingly contradictory challenge? Here's the engineering logic behind it.

1. Flat Surface Not Enough? Pleated It

Traditional filter cartridges have limited area based on surface projection. Pleated design folds a flat sheet like an accordion, multiplying effective area within the same compact filter housing. More area means higher flow capacity and longer service life - the core advantage of high flow pleated technology.

2. Pleat Density & Depth: The Balancing Act

Pleat count, height, and spacing each affect performance. Denser pleats provide more area but may restrict flow channels. Deeper pleats offer more contaminant-holding space but may create stress points. Quality pleated filter design balances these factors to maximize both flow capacity and particle retention.

3. Inside-Out Flow Design

Our HFD Series High Flow Filter Cartridge uses an inside-to-outside flow path. Fluid enters the core and flows radially outward through pleated media. Flow velocity decreases along the path, distributing particles evenly. This inside-out flow prevents surface clogging, reduces pressure drop, and extends service life - a key advantage for high flow filtration.

4. End Caps & Seals: Zero Bypass

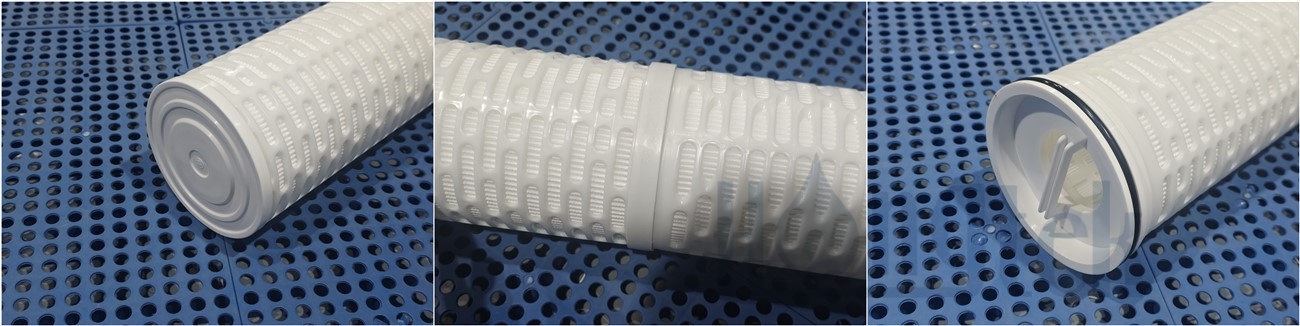

Even the largest pleated area fails if fluid bypasses the media. Thermal-bonded end caps fuse seamlessly with the media, eliminating adhesive failure. Reliable seals prevent unfiltered fluid escape. All-polypropylene construction avoids corrosion and leaching, making these pleated filter cartridges ideal for pure water and chemical applications.

5. Flow Path Optimization

The fluid path into and out of our HFG Series High Flow Pleated Cartridge Filter significantly affects performance. Inlet guides, internal distribution, and outlet designs are optimized through fluid dynamics simulation. Smoother paths mean lower pressure drop and higher throughput, enabling compact system designs without sacrificing performance.

6. The Answer: Integrated Engineering

Compact size and high flow result from a combination of:

● Pleated structure for area multiplication

● Depth filtration for high contaminant capacity

● Inside-out flow for even particle distribution

● Precision sealing for zero-bypass reliability

● Flow optimization for minimum pressure drop

This integrated logic is how high flow pleated filter cartridges achieve more with less - delivering high flow filtration in a footprint that fits where traditional filters cannot.

Conclusion: Compact Power for Your System

High flow pleated filter cartridges resolve the conflict between size and capacity. Through intelligent pleating, optimized flow, and robust sealing, they deliver high flow filtration in a footprint that fits where traditional filters cannot.
