How to Optimize PP Pleated Filter Cartridges Filtration Performance?

Sep. 01, 2026

Many field engineers face common problems: poor filtrate quality, fast filter cartridge fouling, and frequent part replacement. Most filter failures are not caused by defective cartridges. They result from wrong selection, careless installation, poor storage or improper maintenance. These mistakes keep cartridges from working at full capacity and raise plant operating costs. This practical guide is built on real world site experience and OEM operation storage rules. It walks through the full lifecycle of PP Pleated Filter Cartridges, including selection, warehousing, installation, commissioning and daily maintenance.

1. How to Select the Right Pleated Filter Cartridge

A higher micron rating does?not guarantee better filtration. When choosing PP pleated cartridge filters, balance incoming-fluid impurities and downstream equipment tolerance. Too fine a micron rating: dirt-holding load surges. Differential pressure rises fast, shortening service life. Too coarse a micron rating: target particles pass through. This can foul or permanently damage downstream equipment.

Standard PP pleated cartridges support a pH range of 1 to 13. Keep continuous operating temperature below 60-80°C. Short-term hot-water sanitization is allowed at temperatures under 80°C. Long-term over temperature use softens and deforms polypropylene. It also damages the membrane structure. So the O-ring materials need to suit the process media. Common O-ring choices are EPDM, silicone and Viton. Re-check full cartridge compatibility if your fluid contains strong organic solvents. This step prevents swelling and leakage.

A standard 10 inch PP pleated cartridge has a recommended clean-water flow of about 0.5m³/h. Allowable flow goes up as cartridge length increases. If total system flow exceeds one cartridge's capacity, use several cartridges in parallel. Do not run the system at too high a flow rate. High flow velocity deforms filter media. It lets particles pass through and lowers filtration efficiency. Set aside a 10-15% flow margin when you calculate cartridge quantities. This compensates for pressure losses in pipes and filter housings.

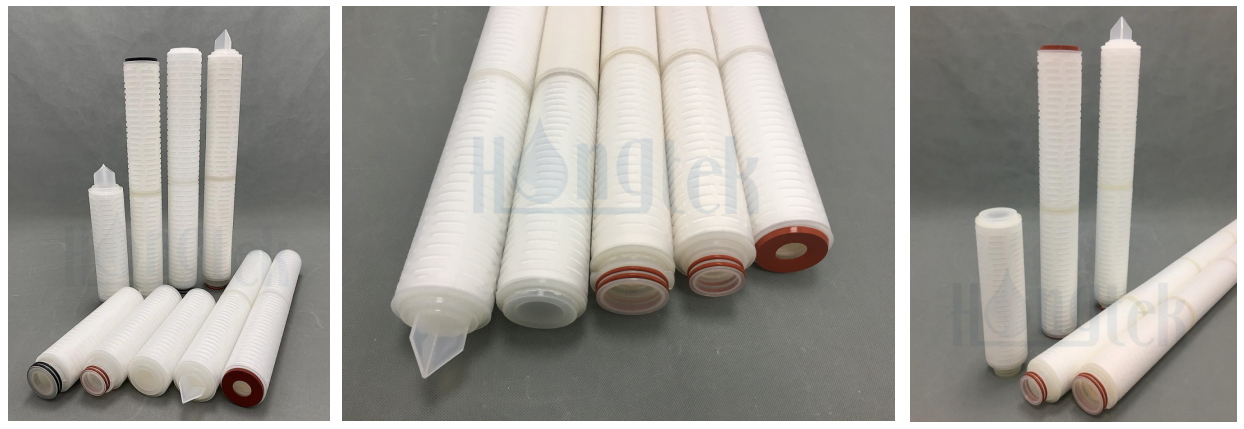

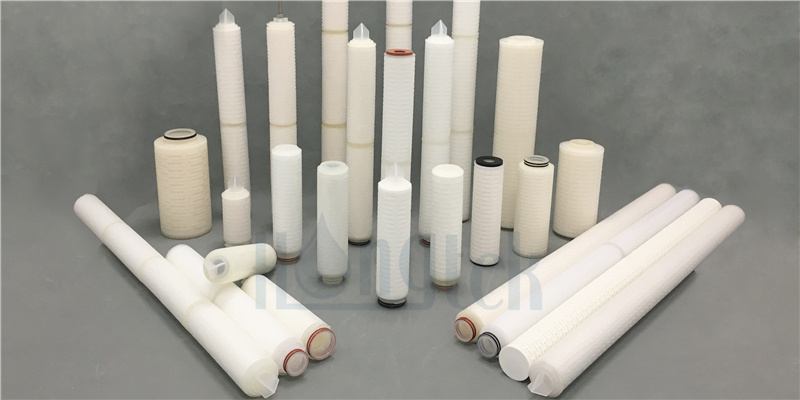

Hongtek supplies a broad portfolio of polypropylene pleated filter cartridges, including nominal PP pleated cartridge filters & absolute PP pleated filter cartridges, Backwashable PP Pleated Filter Cartridges for power-plant, oilfield pleated filter cartridges and other demanding applications.

Our product range addresses general purpose scenarios prioritizing high dirt-holding capacity and cost effectiveness. Customizable options cover micron rating, membrane construction, end cap connections and O-ring materials. Hongtek delivers robust core filtration solutions that stabilize effluent quality, extend cartridge service life and cut overall consumable and maintenance expenses for fluid handling systems.

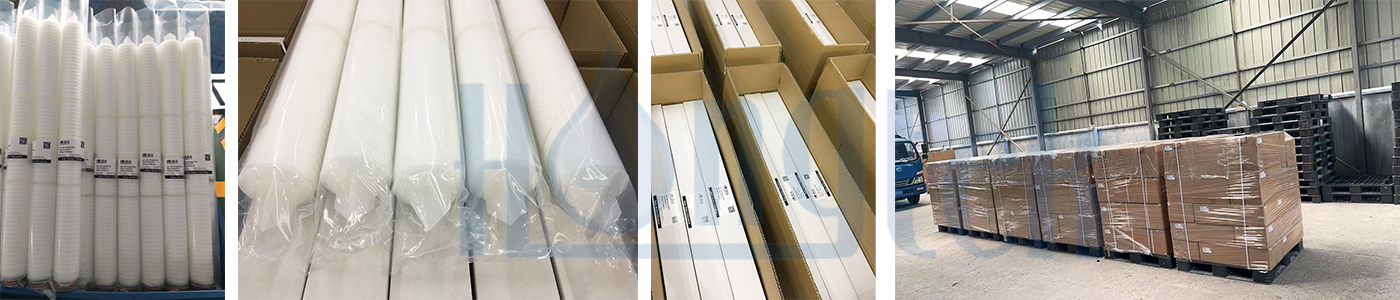

2. Pleated Filter Cartridge Storage Requirements

Storage conditions directly affect cartridge integrity. Improper storage leads to membrane contamination, packaging failure and performance deterioration. Follow Hongtek OEM storage specifications for PP pleated filter cartridges. Comply with the following warehousing requirements.

Storage Rule	Why
Cool, dry, ventilated warehouse	Prevents heat and moisture damage
Away from sunlight & heat	Avoids UV degradation
Elevate cartons off ground	Prevents moisture absorption
Stack ≤ 4 layers	Prevents crushing pleated media

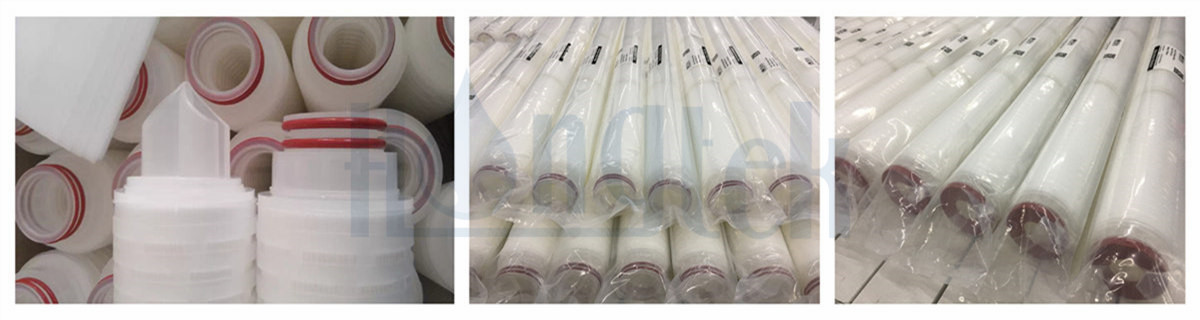

Keep sealed in original bags	Prevents dust/bacteria contamination
Shelf life: 2-3 years	Commission within 2 years recommended

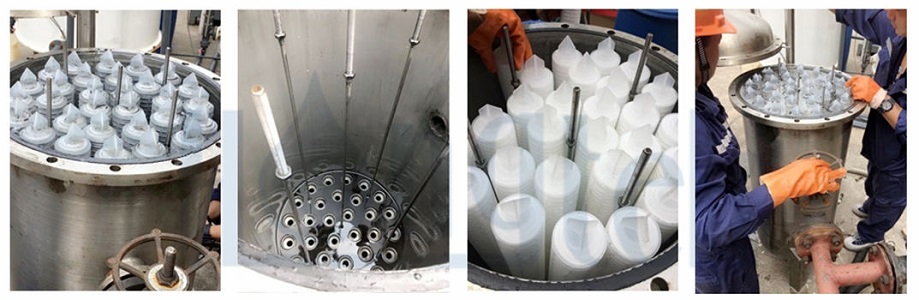

3. How to Install Pleated Filter Cartridge Correctly

Many filtration failures happen during installation. Small procedural mistakes can cause bypass leakage. They can make cartridges stop working properly.

Step	Action	Key Points & Warnings
Step #1	Clean Housing & Inspect O-Rings	● Remove rust and debris from filter housing ● Check O-rings for cracks, nicks, deformation ● Replace damaged O-rings immediately ● Seal failure = the primary cause of bypass leakage
Step #2	Correct Flow Orientation	● PP pleated cartridges have fixed inlet/outlet sides ● Follow marks on housing and cartridge for installation ● Reversed installation → cloudy output and complete filter failure
Step #3	Housing Venting (Critical!)	● Close housing; open vent valve ● Open inlet valve slowly ● Keep vent open until bubble-free liquid flows out ● Close vent ● Trapped air reduces filtration area, causes cavitation, and gives wrong differential pressure readings
Step #4	Seal Against Bypass	● Ensure cartridges sit completely in place ● Tighten end caps with correct torque (over-tightening breaks caps) ● Clean sealing surfaces - dirt creates leak gaps ● Bypass leakage renders cartridges useless even if undamaged

4. Filter System Operation And Maintenance

Differential pressure (ΔP) is the most reliable indicator of cartridge loading status. Do not rely on service time alone.

When to Replace

Parameter	Action
ΔP reaches 1.5-2.0 bar	Replace immediately
ΔP close to housing max	Membrane deformation risk; particle breakthrough

Troubleshooting Sudden ΔP Spikes

Possible Cause	Solution
High suspended solids/colloids	Check upstream pretreatment
Upstream pretreatment failure	Inspect and repair
Rust/sediment from pipes	Flush system before startup
Gel-like substances in fluid	Adjust pre-filtration
Pro tip: Check feed-water quality first when pressure surges - don't replace cartridges repeatedly without finding the root cause.

5. Summary

In short, good PP pleated filter performance depends on four key steps. Pick the right filter for your process. Store cartridges properly. Follow standard installation steps. Watch differential pressure during operation. Different working conditions need different solutions. Test filters for high temperature, corrosive or high solid applications. These practices help you get stable filtrate quality and longer cartridge life.
