What is PPH Plastic Filter Housing?

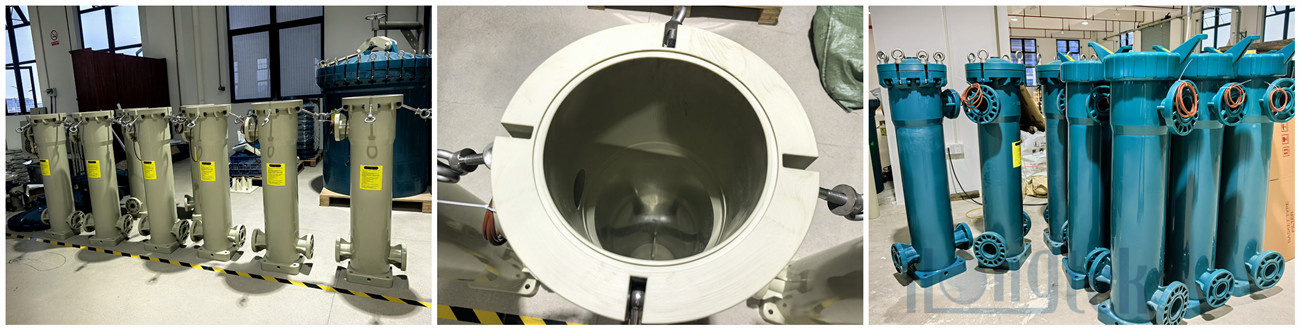

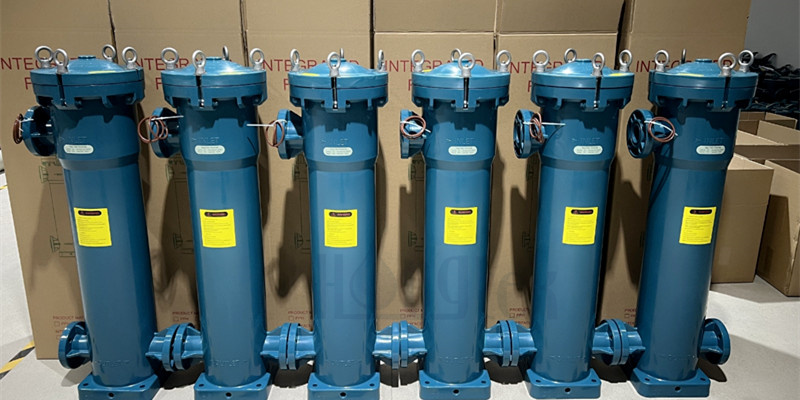

A PPH plastic filter housing is specifically designed for filtering highly corrosive liquids. Its housing is integrally molded from PPH plastic, resulting in a seamless cylinder free of weld joints. This design completely eliminates the risk of leakage - a common issue with traditional metal filters - caused by liner detachment or corrosion. Depending on the required filtration precision, the interior of PPH Series Single Bag Filter Housing can be fitted with either filter bags or filter cartridges. Due to its exceptional resistance to a wide range of strong acids and bases, this type of filter is widely utilized across industries such as chemical manufacturing, electroplating, electronics, and environmental protection.

Exceptional Corrosion Resistance: This is its greatest advantage. It is capable of withstanding the corrosive effects of most strong acids, strong bases, and chemical solvents - including hydrochloric acid concentrations up to 36%, sulfuric acid up to 90%, a feat that stainless steel filters cannot achieve.

Temperature and Pressure Resistance: Typically, PPF Series Multi Cartridge Filter Housings can operate safely and continuously within a temperature range of 80°C to 100°C. The maximum working pressure can reach approximately 1.0 MPa (equivalent to about 10 kg/cm²), which is sufficient to handle the demands of most industrial operating conditions.

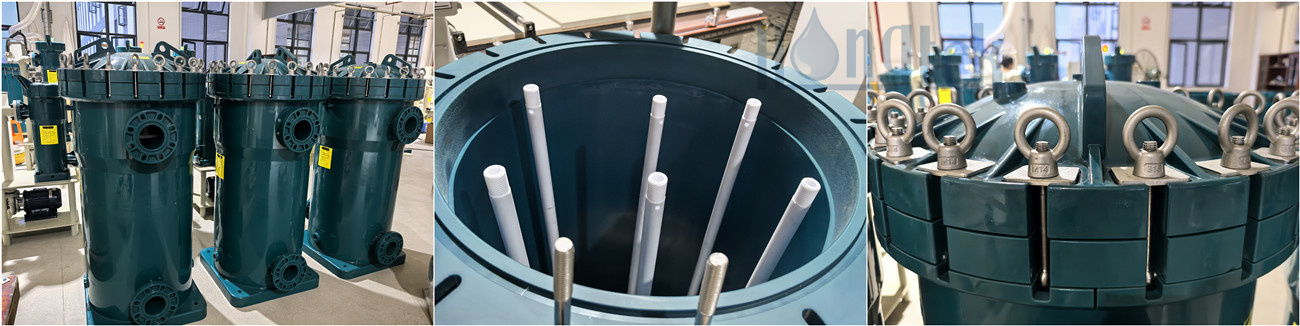

Filtration Methods: PPH filters are categorized into two types: Bag Filters and Cartridge Filters. Bag filters are suitable for coarse or medium filtration of liquids containing relatively high levels of impurities; Cartridge filters offer higher filtration precision and are ideal for fine filtration stages where extremely high levels of liquid purity are required.

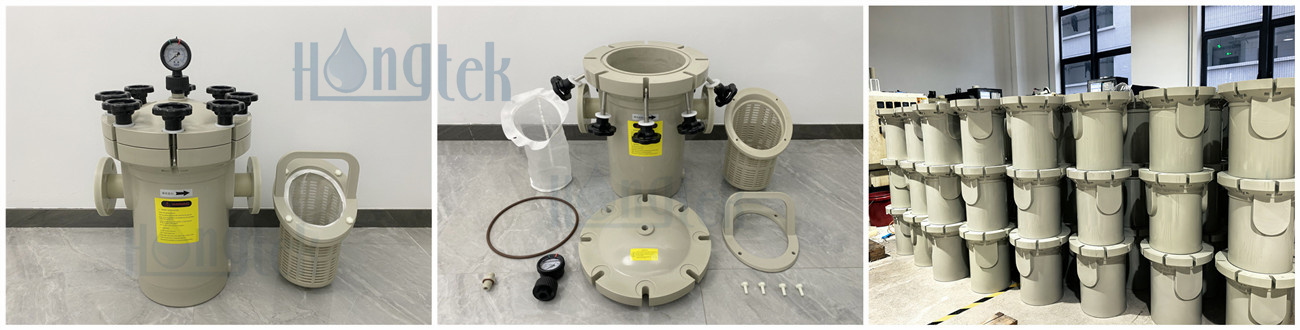

Ease of Maintenance: The design is highly user-friendly; the top cover typically features a quick-opening mechanism (such as lifting eye bolts), allowing it to be opened without the need for special tools to facilitate the easy replacement of filter bags or cartridges. Furthermore, the interior of the cylinder features a smooth, seamless finish with no dead corners, making it very easy to clean.

Application Area: In chemical Industry, used for filtering various acidic solutions (such as sulfuric acid, hydrochloric acid, and nitric acid), alkaline solutions, solvents, catalysts, and more. In metal Processing, used for filtering metalworking fluids, as well as in fluid processing stages within copper and aluminum foil manufacturing plants.

Water Treatment: Used for industrial wastewater treatment, high-purity water precision filtration, and similar applications. Electronics & Electroplating: In the manufacturing processes for Printed Circuit Boards (PCB), these filters are used to process chemical solutions involved in stages such as gold plating, nickel plating, etching, and developing.

A Win-Win in Lifespan and Cost: Although the initial procurement cost may be slightly higher, when considering the multi-year service life of PPH material in acidic environments - coupled with virtually zero maintenance costs for corrosion protection - the overall lifestyle cost proves to be significantly lower than that of metal equipment.

Lightweight Design: The density of PPT Series Single Bag Filter Housing is far lower than that of metals. For filters of equal volume, the weight of a PPH unit is only about one-seventh that of a stainless steel unit. This not only reduces the structural load on the equipment foundation but also makes installation, cleaning, and filter cartridge replacement much easier.

Eco-Friendly and Sustainable: PPH material is non-toxic and odorless; unlike certain metals, it does not leach heavy metal ions into the process fluid during operation, thereby ensuring the purity of the chemical solution. Furthermore, discarded PPH materials can be recycled and reused, aligning perfectly with current industrial trends toward green manufacturing and environmental sustainability.

In the world of industrial filtration, no single material offers a universal solution; however, there is always an optimal solution for every specific need. PPH plastic filters utilize their inherent "flexibility" to counter the "rigidity" of highly corrosive media, while their inherent "stability" reliably bears the heavy demands of continuous production.
