Why Your Filtration System Clogs Too Fast?

In industrial filtration applications, premature clogging is one of the most common operational issues. Many users initially assume the problem is caused by low-quality filter cartridges. However, in most real-world cases, the issue is not related to a single component, but rather to a mismatch between the filtration system design and the actual operating conditions.

When the system is not properly designed for the flow rate, contamination load, or fluid characteristics, problems such as rapid pressure drop increase, frequent cartridge replacement, and unstable operation will gradually appear. Understanding the root cause is the first step to improving filtration efficiency and extending system service life.

1. Insufficient Filtration Area in the System

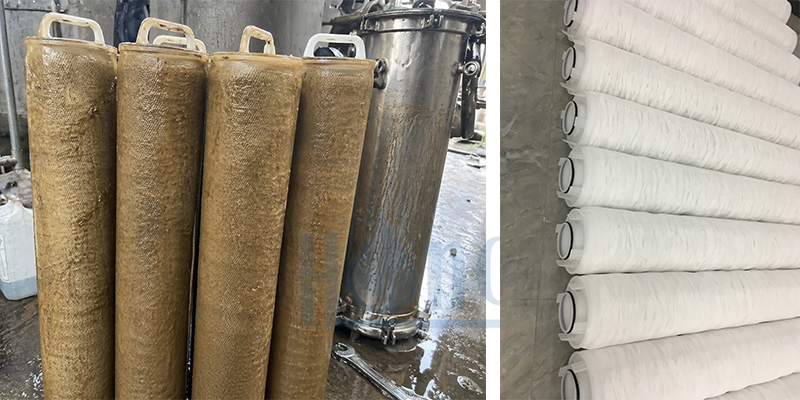

One of the most common reasons for rapid filter clogging is insufficient filtration area. When the system flow rate is high but the number of filter elements or housing capacity is limited, each cartridge is forced to handle a higher load than it is designed for.As a result, solid particles accumulate quickly on the filter surface, leading to a fast increase in differential pressure and shortened service life. Typical symptoms include frequent filter replacement and rapidly decreasing flow performance, even shortly after installing new cartridges.

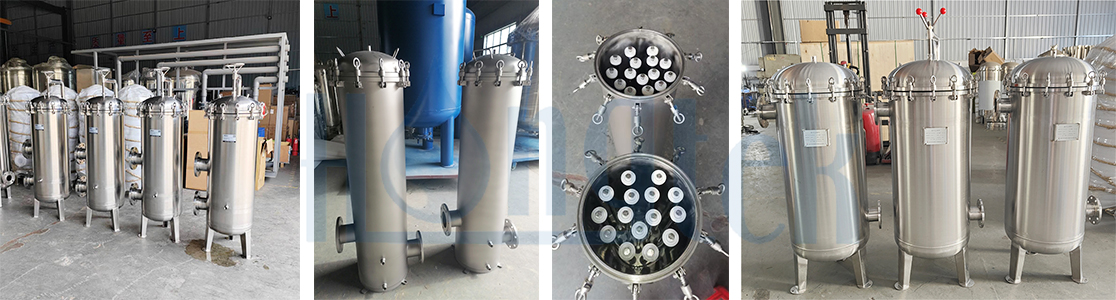

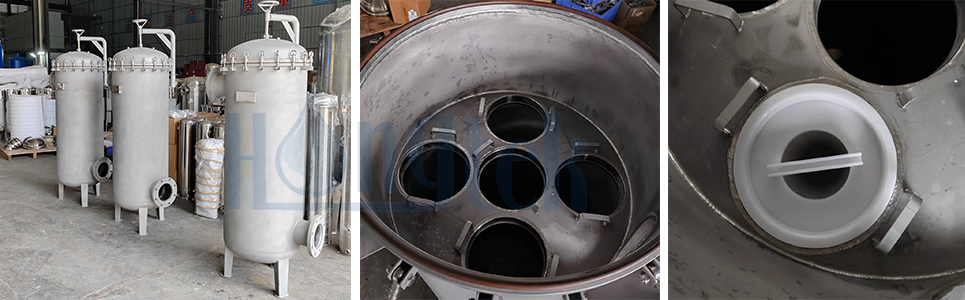

In this case, the key is not to replace filters more frequently, but to increase the effective filtration area. Common solutions include: Multi Cartridge Filter Housing: distributes flow across multiple filter elements to reduce individual loading. High Flow Filter Housing: provides higher capacity within a compact footprint and reduces pressure drop increase.

Both solutions help improve system stability and extend operational cycles by balancing the filtration load more effectively.

2. Incorrect Filter Cartridge Selection

Another major cause of premature clogging is improper filter cartridge selection. This is often overlooked during system design. For example, selecting an overly fine micron rating may lead to rapid surface blockage, especially when the fluid contains high solid content. In other cases, incompatibility between the filter media and the process fluid may reduce filtration efficiency and shorten service life.Additionally, surface filtration and depth filtration serve different applications. Choosing the wrong filtration mechanism can result in unstable operation even when the system appears to be working normally.

Correct selection significantly reduces premature clogging and improves long-term filtration stability. Proper selection should consider:

● Micron rating based on actual particle size distribution

● Chemical compatibility between filter material and fluid

● Appropriate filtration type (surface vs depth filtration)

3. High Contamination Load Without Pre-Filtration

In many industrial processes, the incoming fluid contains high levels of suspended solids, impurities, or high viscosity substances. When such a high-load stream is directly introduced into a precision filtration system, filter cartridges can become clogged very quickly. This situation is especially common in chemical processing, wastewater treatment, and industrial liquid filtration applications.

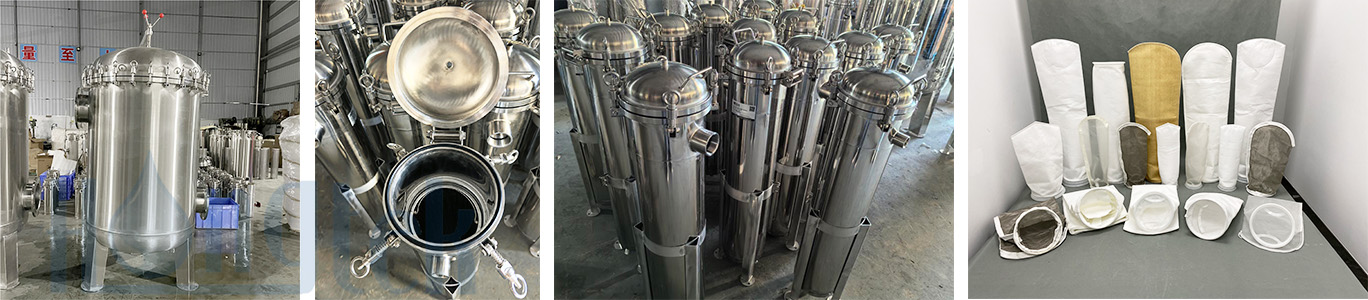

A proper approach is to introduce a pre-filtration stage before fine filtration. This helps reduce the load on downstream cartridges and improves overall system efficiency. A commonly used solution is: Bag Filter Housing: used as a pre-filtration unit to capture larger particles and high-load contaminants before the fine filtration stage. This graded filtration approach helps extend cartridge lifespan and maintain stable system performance.

4. Incompatible Filter Housing Material

Material selection is another critical but often underestimated factor in filtration system performance.In chemical or corrosive environments, if the filter housing material is not properly matched to the application, long-term operation may lead to corrosion, deformation, or structural degradation. These changes may not directly appear as "clogging" but they can alter internal flow paths and cause abnormal pressure drop behavior.

For corrosive applications, corrosion-resistant materials are recommended, such as:

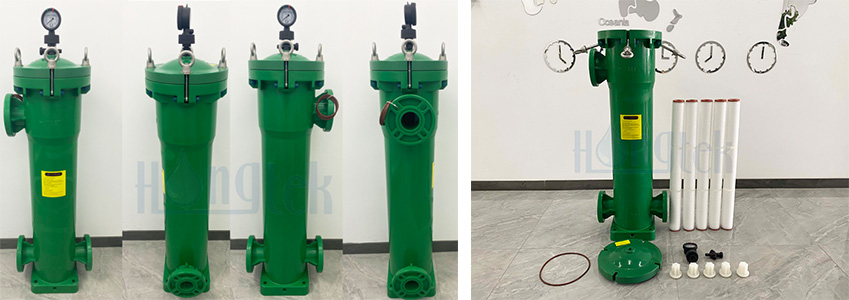

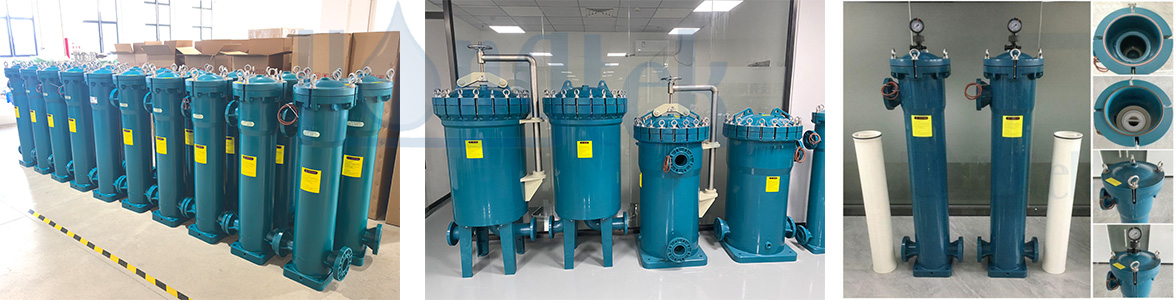

● PPH (Polypropylene Homopolymer) Filter Housing

● PVDF Filtration Systems

These materials offer excellent chemical resistance, especially in acidic or alkaline environments, and provide better long-term stability compared to traditional metal housings.

Conclusion - Clogging Is a System Design Issue, Not Just a Filter Issue

Premature clogging of filtration systems is rarely caused by a single factor. In most cases, it is the result of multiple interacting issues, including filtration area, filter media selection, contamination load, and material compatibility. Simply replacing filter cartridges can only provide short-term relief. A more effective approach is to evaluate the filtration system as a whole and optimize it based on actual operating conditions.

If you are experiencing issues such as rapid filter clogging, high differential pressure, or frequent cartridge replacement, it may indicate that your current filtration system requires optimization rather than simple replacement. You are welcome to share your operating conditions with us. Based on your process fluid, flow rate, and application environment, we can help evaluate and recommend a more suitable filtration solution for your system.
