Application of PPH filter housings in PCB Wastewater Treatment

PCB manufacturing involves complex processes that generate massive volumes of process wastewater from multiple working sections, and such wastewater differs from conventional industrial wastewater. Conventional stainless steel filters are prone to corrosion and rust when exposed to acidic and alkaline wastewater, leaching metal ions and triggering secondary pollution. Ordinary plastic filters lack sufficient temperature and corrosion resistance, making them susceptible to deformation and leakage. They cannot accommodate the long-term continuous operating conditions of PCB wastewater treatment. This not only hinders compliance with wastewater discharge standards and water resource recycling, but also raises risks of environmental rectification and production losses. Therefore, selecting highly compatible and stable filtration equipment is critical to the efficient operation of PCB wastewater treatment systems.

01. Three Key Control Factors of PCB Wastewater Filtration Treatment

To achieve stable standard-compliant discharge and efficient recycling of PCB wastewater, it is essential to establish a complete filtration and treatment system. Scientific selection of filtration equipment, routine equipment maintenance, and precise pollutant monitoring serve as the three core factors that ensure the long-term and stable operation of the entire wastewater treatment system.

First is the scientific selection of filters. Featuring strong acid and alkali corrosion and a complex impurity system, PCB wastewater imposes stringent requirements on the material, structure and performance of filtration equipment. As the first physical barrier in wastewater treatment, filtration equipment undertakes the core function of intercepting suspended impurities, sludge particles and process residues. Equipment materials that lack acid, alkali and high-temperature resistance are prone to aging, cracking and leakage, which will not only fail to purify wastewater effectively but also cause secondary pollution. Meanwhile, the dirt holding capacity, filtration precision and flow adaptability of the equipment directly determine the effect of wastewater pretreatment and affect the service life of subsequent precision equipment such as sedimentation tanks, ultrafiltration membranes, RO membranes and resin adsorbers, laying a fundamental prerequisite for the efficient operation of the entire wastewater treatment system.

Second is the regular maintenance and upkeep of filters. PCB wastewater features high impurity content and large sludge output. During long-term operation, the filter media will continuously intercept a large amount of suspended solids and sludge, easily resulting in blockage, increased pressure difference and reduced filtration efficiency. Lack of regular inspection, cleaning, filter media replacement and equipment maintenance will lead to increased filtration resistance, insufficient wastewater treatment flow and incomplete impurity interception, further causing blockage and scrapping of downstream equipment and excessive discharge water quality indicators. Standardized and routine maintenance can sustain the operating performance of filtration equipment, reduce the probability of equipment failure, cut down consumable waste and downtime operation and maintenance costs, and ensure the 24-hour stable operation of the wastewater treatment system.

Last is the real-time monitoring of wastewater pollutants. The wastewater discharged from different PCB production sections varies greatly in water quality, and fluctuations in production load will cause real-time changes in pollutant concentration, pH value and suspended solid content of wastewater. Routine monitoring of core indicators such as heavy metal content, COD concentration, total suspended solids and pH value in wastewater enables timely grasp of wastewater pollution status, accurate matching of filtration precision and operating parameters, and early detection of abnormal operation of the filtration system. This effectively avoids problems such as excessive pollutants and equipment overload operation, ensures that the filtration effect always complies with environmental protection treatment standards, and guarantees the quality of wastewater treatment from the source.

02. PPH Filter Housing: The Optimal Choice for PCB Wastewater Treatment

Given the characteristics of PCB wastewater - strong corrosiveness, complex contaminants and harsh operating conditions - integral PPH Cartridge Filter Housings stand out as the mainstream preferred equipment for pre-treatment and advanced filtration in the PCB industry, thanks to outstanding material properties, reliable structural design and excellent adaptability to working conditions. They thoroughly overcome various drawbacks of conventional filtration equipment.

In terms of material performance, PPH is made of brand-new modified polypropylene via integral injection molding. The monolithic structure has no welds or splicing gaps, completely eliminating the risk of leakage caused by weld corrosion. The material boasts outstanding chemical resistance and can withstand strong acids and alkalis in PCB wastewater long-term. It resists erosion from various chemicals and mild oxidants contained in wastewater without rusting, aging or deforming. No metal ions or hazardous substances will leach out, effectively preventing secondary pollution of wastewater. It fully meets full-condition filtration requirements for copper-containing wastewater, nickel-containing wastewater, organic wastewater and mixed acid-base wastewater generated in PCB production. In addition, PPH features excellent thermal stability, suitable for normal and medium-temperature wastewater treatment scenarios with stable performance during continuous long-term operation. Its service life far exceeds ordinary PP filters and anti-corrosion stainless steel filters.

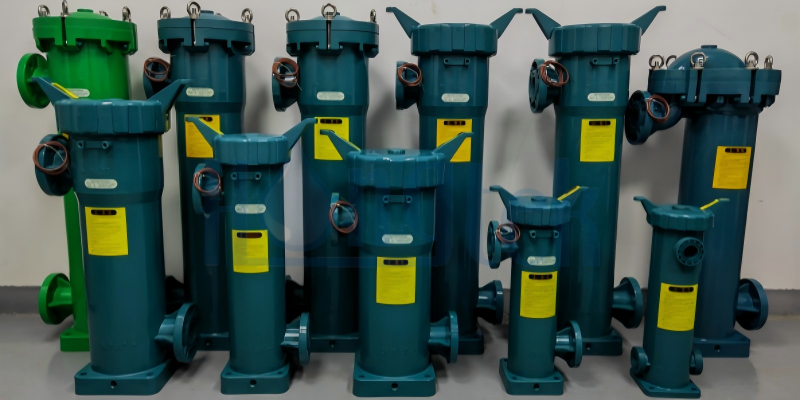

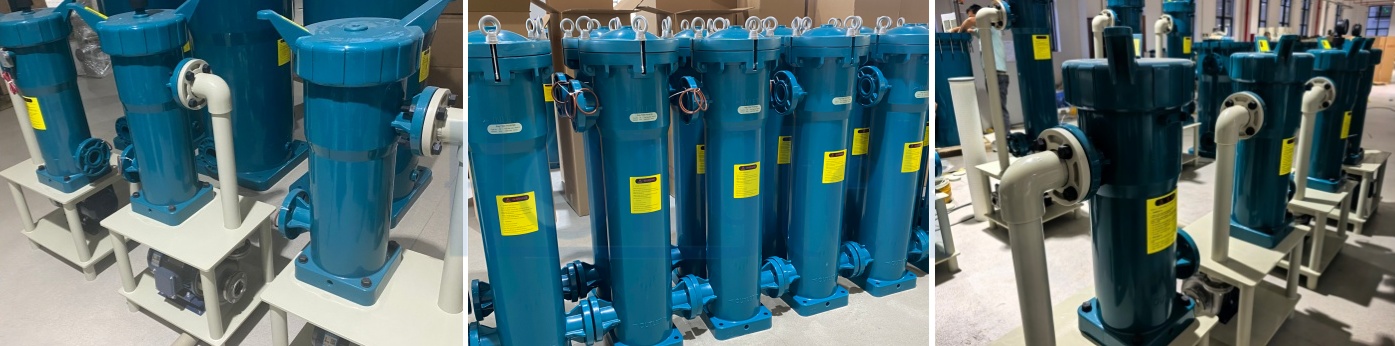

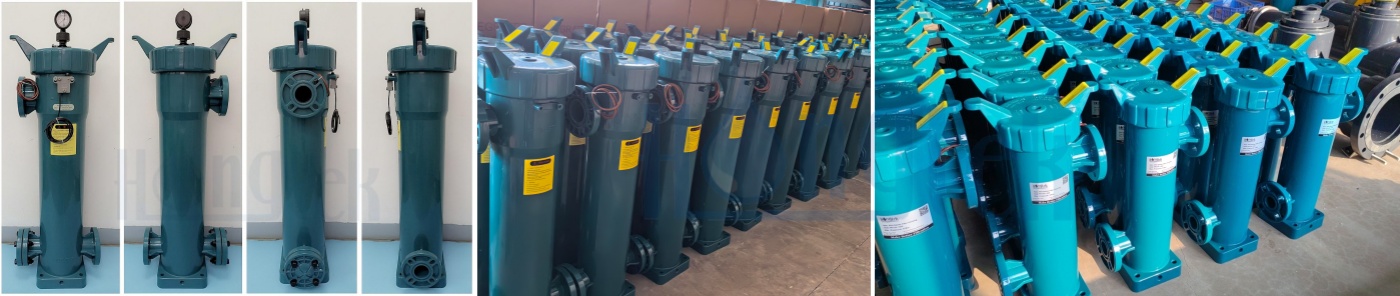

Hongtek's PPH Series Polypropylene Homopolymer (PPH) Single Bag Filter Housing are widely applied to PCB water treatment filtration. Integrally molded PPH construction without welds resists hydrochloric acid, sulfuric acid, etching solutions, developing alkaline solutions, stripping solutions, micro-etching solutions, and copper/nickel/gold plating chemicals with zero corrosion and leakage. No metal parts come into contact with liquid throughout the filtration process, eliminating metal ion contamination on boards, circuits and plating layers.

Continuous operating temperature ranges from 80℃ to 90℃, compatible with high-temperature tank liquid circulation for etching, electroplating and stripping processes. Superior thermal stability compared to standard PP materials prevents deformation and cracking. Compatible with standard Size #2 filter bags, each unit delivers a flow rate up to 30 cubic meters per hour. It efficiently intercepts copper sludge, resin residues, photoresist particles and oxidized suspended solids to reduce frequent blockages and production shutdowns.

Screw-on lid design allows single-person filter bag replacement without tools. Smooth, dead-space-free inner walls simplify cleaning, ideal for 24/7 uninterrupted circulation on PCB production lines.

03. Specific Application Scenarios of PPH High Flow Filter Housings in PCB Wastewater Treatment

Coarse Filtration for Wastewater Pretreatment. PCB workshop comprehensive, copper-containing and acid-base wastewater converges in regulating tanks with abundant large-particle contaminants. Direct downstream delivery would cause pipeline blockage, poor coagulation and impure sludge flocs. As the primary pretreatment barrier, PPH filter housings with high dirt-holding capacity efficiently capture major large-particle pollutants, stabilize inlet water quality, reduce downstream treatment load and improve overall system stability.

Fine Filtration After Coagulation and Sedimentation. Wastewater treated by PAC and PAM produces heavy metal hydroxide sludge and organic flocs. Sedimentation tank effluent still contains fine floating sludge that easily clogs ultrafiltration, resin and RO membrane systems, accelerating equipment aging. PPH filter housings precisely trap residual fine sludge and colloids, lower turbidity and SS values, and provide reliable security filtration. This extends the service life of high-end water treatment equipment and cuts cleaning and replacement costs.

Pre-filtration for Production Wastewater Reuse Systems. Water conservation has made rinsing wastewater reuse a standard process in PCB manufacturing. Reused water requires multi-stage purification for workshop and board cleaning. PPH filter housings conduct secondary fine filtration on pretreated recycled water to remove residual trace impurities and colloids, ensuring stable water quality for ultrafiltration and reverse osmosis systems. This improves wastewater reuse rates, reduces tap water consumption and achieves effective water recycling and cost savings.

Special Filtration for Highly Corrosive Wastewater. PCB nickel-plating, micro-etching and concentrated etching wastewater is highly corrosive and contaminated. Conventional filters easily corrode, age and induce secondary pollution. The seamless integrally molded PPH tank resists strong acids, alkalis and mild oxidation, adapting to long-term continuous operation for harsh wastewater conditions. It stably removes metal particles and complex precipitates, ensures compliant discharge and minimizes heavy metal exceedance and environmental compliance risks.

04. Conclusion

As the first critical line of defense in the wastewater treatment process, the refined management of equipment selection, daily operation and maintenance, and water quality monitoring for the filtration system directly determines the operational efficiency and treatment performance of the entire wastewater treatment system. With excellent corrosion resistance, stable filtration performance, convenient operation and maintenance, and high cost performance, PPH filter housings are perfectly adapted to the filtration scenarios of complex acid and alkaline wastewater in the PCB industry, effectively solving the industry pain points of traditional filtration equipment, including easy corrosion, frequent blockage, high operation and maintenance costs, and unstable filtration results. In line with the development trend of green production, energy conservation, consumption reduction and compliant sewage discharge in the PCB industry, PPH filter housings have become standard core equipment in the wastewater treatment systems of circuit board factories.
