High Flow Filter Cartridges VS Pleated Filter Cartridges

1. Design Concept and Physical Structure

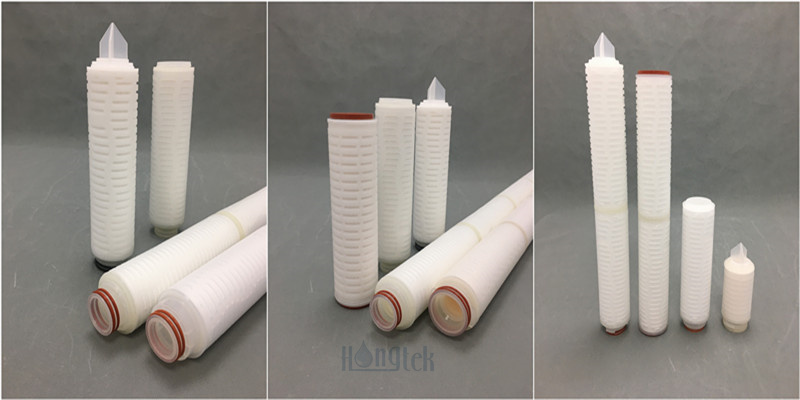

Pleated Filter Cartridges utilize a classic "modular" design. A precision filter membrane is folded and then placed into a cylindrical structure with a central support frame, and sealed at both ends. A filtration system typically requires multiple such cartridges installed in parallel within a multi-cartridge filter housing. High-flow filter cartridges integrate a large filtration area into a single large-diameter cartridge through a unique radial deep-pleating process. The main feature is the elimination of the central support frame, allowing a single cartridge to replace the filtration capacity of a multi-cartridge pleated filter system.

2. Core Advantages Comparison

The core advantages of Pleated Membrane Filter Cartridges lie in the following aspects: excellent precision and flexibility. They are extremely mature in high-precision filtration, especially in sterilization-grade filtration technology of 0.22 microns and below, providing reliable absolute precision; a wide range of filter membrane materials are available, such as PP, PES, PTFE, etc., which can meet the demanding requirements of various corrosive solvents or high-temperature liquids; because they are single, independent modules, the configuration and subsequent adjustments of the filtration system are very flexible.

The core advantages of High Flow Filter Cartridges lie in their unparalleled flow efficiency and system simplicity. The flow rate of a single cartridge is usually 3 to 10 times that of a single standard cartridge, greatly meeting high-flow demands. When achieving the same processing capacity, the number of filter housings, valves, and pipes required can be significantly reduced; the space occupied is minimal, which is of great value for space-constrained or retrofit projects, and the installation cost is low. Fewer components mean lower material costs, simpler installation engineering, and fewer potential leak points, making the system extremely compact.

3. Applicable Scenarios and Performance Focus

Pleated filter cartridges are the absolute mainstay in high-precision, high-standard application scenarios. They are widely used in sterilization filtration in biopharmaceuticals, terminal filtration of water for injection, high-purity chemical filtration in the microelectronics industry, and small-scale, multi-batch fine chemical production. Their performance focuses on the absolute reliability of the filtration results and broad compatibility with complex media. Pleated filter cartridges offer a wide range of filter membrane materials with broad compatibility; precision manufacturing processes also ensure absolute reliability.

High Flow Filter Cartridges dominate the field of high-flow pre-treatment and general process filtration. It is the preferred pre-filter for reverse osmosis in large-scale water treatment systems (such as power plants, steel mills, and municipal water), and is also ideal for production lines requiring continuous high-flow processing, such as food and beverage and basic chemical industries. Its performance focuses on processing capacity, system footprint, and ease of long-term maintenance. While ensuring basic filtration accuracy, it strives for ultimate processing efficiency, lowest operating costs, and minimal system complexity.

4. Economics and Operation & Maintenance

From an initial investment perspective, pleated filter cartridges have a lower cost per filter housing, but a complete system requires a large number of filter housings, resulting in significant overall costs for piping, valves, and supports. High-flow filter cartridges have a higher price per filter housing, but the overall system architecture is simpler, often resulting in a cost advantage in terms of total materials, and offers high flexibility, making it suitable for low-flow, multi-branch, or experimental and multi-product production lines that require frequent adjustments and expansions in the future.

From an operation and maintenance perspective, pleated filter cartridges have a lower unit price, but the system requires periodic replacement of a large number of cartridges, resulting in higher labor costs and longer downtime. High Flow Filter Cartridges are more expensive, but require less frequent replacement and only one cartridge needs to be replaced at a time, significantly reducing labor costs and downtime. If the production process allows for flexible downtime and labor costs are controllable, pleated filter cartridges have an advantage; if capacity utilization directly impacts profitability, high-flow filter cartridges have an advantage.

The key to selection lies in the priority of needs. If the highest filtration accuracy, strongest chemical compatibility, and flexibility for batch production are desired, standard pleated filter cartridges should be chosen; if the highest processing throughput, smallest system footprint, and lowest long-term maintenance complexity are desired, then high-flow filter cartridges should be selected. For modern factories that prioritize production continuity, operational efficiency, cost control, and management simplicity, the most rational decision is to choose the system that best ensures uninterrupted production lines and lower overall costs.
